Example

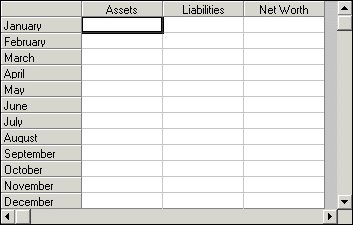

The following example provides custom text for column and row headers, sets the maximum number of columns and rows, and prevents the user from resizing the rows and columns.

C++

m_Spread.SetUserResize(UserResizeNone);
// Set the maximum number of columns
m_Spread.SetMaxCols(3);
// Provide text for the column headers
// Specify clipping block
m_Spread.SetCol(1);
m_Spread.SetCol2(3);
m_Spread.SetRow(0);
m_Spread.SetRow2(0);
// Clip data into the sheet
m_Spread.SetClip("Assets\tLiabilities\tNet Worth");
// Set the maximum number of rows
m_Spread.SetMaxRows(12);
// Provide text for the row headers
// Specify clipping block
m_Spread.SetCol(0);
m_Spread.SetCol2(0);
m_Spread.SetRow(1);
m_Spread.SetRow2(12);
// Clip data into the sheet
m_Spread.SetClip("January\r\nFebruary\r\nMarch\r\nApril\r\nMay\r\nJune\r\nJuly\r\nAugust\r\nSeptember\r\nOctober\r\nNovember\r\nDecember");
// Align the text to the left in the row headers
m_Spread.SetCol(0);
m_Spread.SetRow(-1);
m_Spread.SetTypeHAlign(TypeHAlignLeft);
// Set the column width of all columns
m_Spread.SetCol(-1);
m_Spread.SetColWidth(-1,10);
// Set the column width of the row header
m_Spread.SetColWidth(0,10);

Visual Basic

' Prevent user resizing columns and rows
fpSpread1.UserResize = UserResizeNone
' Set the maximum number of columns
fpSpread1.MaxCols = 3
' Provide text for the column headers
' Specify clipping block
fpSpread1.Col = 1
fpSpread1.Col2 = 3
fpSpread1.Row = 0
fpSpread1.Row2 = 0
' Clip data into the sheet
fpSpread1.Clip = "Assets" + Chr$(9) + "Liabilities" + Chr$(9) + "Net Worth"
' Set the maximum number of rows
fpSpread1.MaxRows = 12
' Provide text for the row headers
' Specify clipping block
fpSpread1.Col = 0
fpSpread1.Col2 = 0
fpSpread1.Row = 1
fpSpread1.Row2 = 12
' Clip data into the sheet
fpSpread1.Clip = "January" + Chr$(13) + "February" + Chr$(13) + "March" + Chr$(13) + "April" + Chr$(13) + "May" + Chr$(13) + "June" + Chr$(13) + "July" + Chr$(13) + "August" + Chr$(13) + "September" + Chr$(13) + "October" + Chr$(13) + "November" + Chr$(13) + "December"
' Align the text to the left in the row headers
fpSpread1.Col = 0
fpSpread1.Row = -1
fpSpread1.TypeHAlign = TypeHAlignLeft
' Set the column width of all columns
fpSpread1.Col = -1
fpSpread1.ColWidth(-1) = 10
' Set the column width of the row header
fpSpread1.ColWidth(0) = 10
