Example

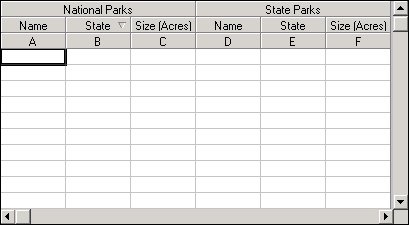

The following example creates a sheet with multiple column headers. The top row of headers spans column in the second and third row of headers, as shown in the following figure. The user sort indicator is displayed in the second row of headers. The sheet does not display the row headers.
C++
void CmyWnd::MyFunc()
{
// Set number of columns and rows
m_Spread1.SetMaxCols(6);
m_Spread1.SetMaxRows(250);
// Turn off display of row headers
m_Spread1.SetRowHeadersShow(FALSE);
// Set up column headers
m_Spread1.SetColHeaderRows(3);
m_Spread1.AddCellSpan(1, SPREADHEADER, 3, 1);
m_Spread1.AddCellSpan(4, SPREADHEADER, 3, 1);
m_Spread1.SetRow(SPREADHEADER);
m_Spread1.SetCol(1);
m_Spread1.SetText("National Parks");
m_Spread1.SetCol(4);
m_Spread1.SetText("State Parks");
m_Spread1.SetRow(SPREADHEADER + 1);
m_Spread1.SetCol(1);
m_Spread1.SetText("Name");
m_Spread1.SetCol(2);
m_Spread1.SetText("State");
m_Spread1.SetCol(3);
m_Spread1.SetText("Size (Acres)");
m_Spread1.SetCol(4);
m_Spread1.SetText("Name");
m_Spread1.SetCol(5);
m_Spread1.SetText("State");
m_Spread1.SetCol(6);
m_Spread1.SetText("Size (Acres)");
// Display sorting indicator in lowest header row for
// Name columns
m_Spread1.SetUserColAction(1);
m_Spread1.SetColUserSortIndicator(2, 2);
m_Spread1.SetColHeadersUserSortIndex(1);
}
Visual Basic
Private Sub Form_Load()
' Set number of columns and rows
fpSpread1.MaxCols = 6
fpSpread1.MaxRows = 250
' Turn off display of row headers
fpSpread1.RowHeadersShow = False
' Set up column headers
fpSpread1.ColHeaderRows = 3
fpSpread1.AddCellSpan 1, SpreadHeader, 3, 1
fpSpread1.AddCellSpan 4, SpreadHeader, 3, 1
fpSpread1.Col = 1
fpSpread1.Row = SpreadHeader
fpSpread1.Text = "National Parks"
fpSpread1.Col = 4
fpSpread1.Row = SpreadHeader
fpSpread1.Text = "State Parks"
fpSpread1.Col = 1
fpSpread1.Row = SpreadHeader + 1
fpSpread1.Text = "Name"
fpSpread1.Col = 2
fpSpread1.Row = SpreadHeader + 1
fpSpread1.Text = "State"
fpSpread1.Col = 3
fpSpread1.Row = SpreadHeader + 1
fpSpread1.Text = "Size (Acres)"
fpSpread1.Col = 4
fpSpread1.Row = SpreadHeader + 1
fpSpread1.Text = "Name"
fpSpread1.Col = 5
fpSpread1.Row = SpreadHeader + 1
fpSpread1.Text = "State"
fpSpread1.Col = 6
fpSpread1.Row = SpreadHeader + 1
fpSpread1.Text = "Size (Acres)"
' Display sorting indicator in lowest header row for
' Name columns
fpSpread1.UserColAction = UserColActionSort
fpSpread1.ColUserSortIndicator(2) = ColUserSortIndicatorDescending
fpSpread1.ColHeadersUserSortIndex = 1
End Sub
