Spread 8.0 Documentation
Example
Support Options

Glossary Item Box

Example

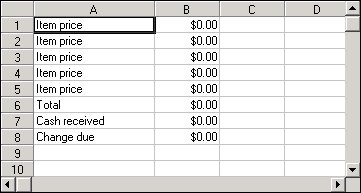

The following example creates a sheet that accepts item prices, produces a total purchase, and calculates the change to return from a given amount of cash received.

C++

void CmyWnd::MyFunc()
{
    int x;
    // Set up labels
    m_Spread.SetColWidth(1,15);
    m_Spread.SetCol(1);
    m_Spread.SetRow(-1);
    m_Spread.SetCellType(5);
    for (x = 1; x<=5; x++) {
        m_Spread.SetRow(x);
        m_Spread.SetText("Item price");
    }
    m_Spread.SetRow(6);
    m_Spread.SetText("Total");
    m_Spread.SetRow(7);
    m_Spread.SetText("Cash received");
    m_Spread.SetRow(8);
    m_Spread.SetText("Change due");
    // Set up currency cells for second column
    m_Spread.SetBlockMode(TRUE);
    m_Spread.SetCol(2);
    m_Spread.SetRow(1);
    m_Spread.SetCol2(2);
    m_Spread.SetRow2(8);
    m_Spread.SetCellType(12);
    m_Spread.SetTypeCurrencyLeadingZero(2);
    m_Spread.SetTypeCurrencyShowSymbol(TRUE);
    m_Spread.SetValue("0");
    m_Spread.SetBlockMode(FALSE);
    // Set up item price to be between 0 and 10
    m_Spread.SetBlockMode(TRUE);
    m_Spread.SetCol(2);
    m_Spread.SetRow(1);
    m_Spread.SetCol2(2);
    m_Spread.SetRow2(5);
    m_Spread.SetTypeCurrencyMax(10);
    m_Spread.SetTypeCurrencyMin(0);
    m_Spread.SetBlockMode(FALSE);
    // Calculate the change
    m_Spread.SetCol(2);
    m_Spread.SetRow(8);
    m_Spread.SetFormula("B7 - B6");
    // Calculate total purchase
    m_Spread.SetCol(2);
    m_Spread.SetRow(6);
    m_Spread.SetFormula("sum(B1:B5)");
}

Visual Basic

Private Sub Form_Load()
    Dim x As Integer
    ' Set up labels
    fpSpread1.ColWidth(1) = 15
    fpSpread1.Col = 1
    fpSpread1.Row = -1
    fpSpread1.CellType = CellTypeStaticText
    For x = 1 To 5
        fpSpread1.Row = x
        fpSpread1.Text = "Item price"
    Next x
    fpSpread1.Row = 6
    fpSpread1.Text = "Total"
    fpSpread1.Row = 7
    fpSpread1.Text = "Cash received"
    fpSpread1.Row = 8
    fpSpread1.Text = "Change due"
    ' Set up currency cells for second column
    fpSpread1.BlockMode = True
    fpSpread1.Col = 2
    fpSpread1.Row = 1
    fpSpread1.Col2 = 2
    fpSpread1.Row2 = 8
    fpSpread1.CellType = CellTypeCurrency
    fpSpread1.TypeCurrencyLeadingZero = TypeLeadingZeroYes
    fpSpread1.TypeCurrencyShowSymbol = True
    fpSpread1.Value = "0"
    fpSpread1.BlockMode = False
    ' Set up item price to be between 0 and 10
    fpSpread1.BlockMode = True
    fpSpread1.Col = 2
    fpSpread1.Row = 1
    fpSpread1.Col2 = 2
    fpSpread1.Row2 = 5
    fpSpread1.TypeCurrencyMax = 10
    fpSpread1.TypeCurrencyMin = 0
    fpSpread1.BlockMode = False
    ' Set up formulas
    fpSpread1.Col = 2
    fpSpread1.Row = 8
    fpSpread1.Formula = "B7 - B6"
    fpSpread1.Col = 2
    fpSpread1.Row = 6
    fpSpread1.Formula = "sum(B1:B5)"
End Sub
