Spread Windows Forms 6.0 Product Documentation
SpreadChart Collection Editor
Support Options
Spread Windows Forms 6.0 Product Documentation > Spread Designer Guide > Spread Designer Editors > SpreadChart Collection Editor

Glossary Item Box

You can use the SpreadChart Collection editor to create charts. You can set the appearance, labels, plots, and many other chart properties. For more information on charts in general, refer to Working with the Chart Control.

This editor is launched from the Properties window by selecting sheet in the drop-down box on the right side of the designer and then clicking on the button for Chart collection.

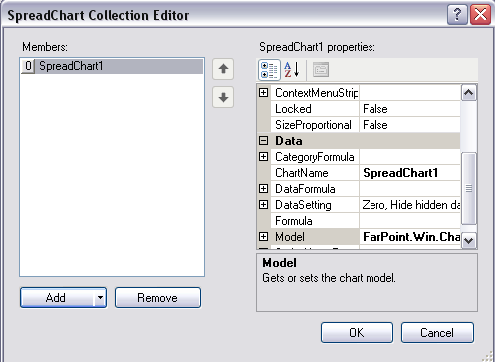

SpreadChart Collection Editor

Use the Add button to add a chart type. The left side of the editor allows you to see the list of charts. You can click Add or Remove to add or remove charts. Navigation arrows in the middle of the editor let you move up and down the list of charts.

The right side lists the Properties window for the chart selected in the members list.

Click OK when done.

Return to Spread Designer Editors.
