Creating a Complex Border with Multiple Lines
Support Options
Spread Windows Forms 6.0 Product Documentation > Developer's Guide > Customizing Row, Column, and Cell Appearance > Customizing the Appearance of a Cell > Customizing Cell Borders > Creating a Complex Border with Multiple Lines

Glossary Item Box

You can create a border of a cell with multiple lines using the complex border.

Return to Customizing Cell Borders.

Return to Customizing the Appearance of a Cell.

Using Code

Use the CompoundArray property of the ComplexBorderSide class to create multiple-line borders for a cell.

Examples

Example 1. This example code creates a ComplexBorderSide that has two underlines (two lines with a blank space in between) each taking a third of the width of the pen.

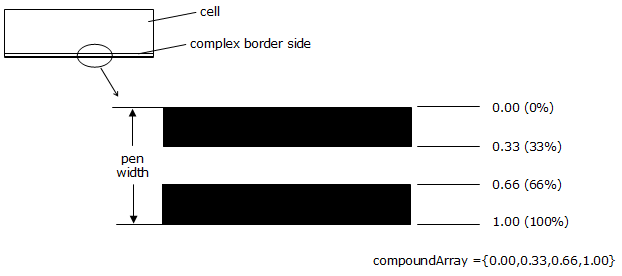

Compound Array Diagram for Two Lines

C# Copy Code
// Create a new complex border side with two lines.

FarPoint.Win.ComplexBorderSide bottomborder = new FarPoint.Win.ComplexBorderSide(true, Color.Black, 3, System.Drawing.Drawing2D.DashStyle.Solid, null, new Single[] {0f, 0.33f, 0.66f, 1f});

fpSpread1.Sheets[0].Cells[3, 7].Border = new FarPoint.Win.ComplexBorder(null, null, null, bottomborder);

VB Copy Code
' Create a new complex border side with two lines.

Dim bottomborder As New FarPoint.Win.ComplexBorderSide(Color.Black, 3, System.Drawing.Drawing2D.DashStyle.Solid, Nothing, New Single() {0, 0.33, 0.66, 1})

FpSpread1.Sheets(0).Cells(3, 7).Border = New FarPoint.Win.ComplexBorder(Nothing, Nothing, Nothing, bottomborder)

Example 2. This example code creates a ComplexBorderSide that has three lines with varying amounts of thickness and with some blank space on either edge of the pen.

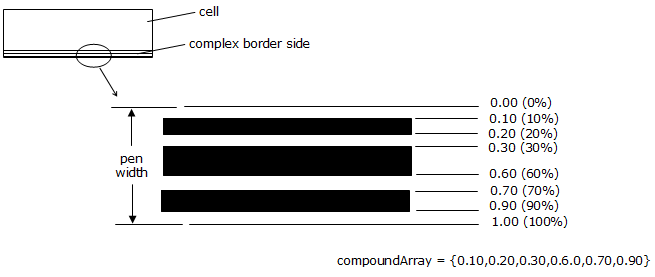

Compound Array Diagram for Three Lines

C# Copy Code
// Create a new complex border side with three lines.

FarPoint.Win.ComplexBorderSide bottomborder = new FarPoint.Win.ComplexBorderSide(true, Color.Black, 3, System.Drawing.Drawing2D.DashStyle.Solid, null, new Single[] {0.1f, 0.2f, 0.3f, 0.6f, 0.7f, 0.9f});

fpSpread1.Sheets[0].Cells[3, 7].Border = new FarPoint.Win.ComplexBorder(null, null, null, bottomborder);

VB Copy Code
' Create a new complex border side with three lines.

Dim bottomborder As New FarPoint.Win.ComplexBorderSide(True, Color.Black, 3, System.Drawing.Drawing2D.DashStyle.Solid, Nothing, New Single() {0.1, 0.2, 0.3, 0.6, 0.7, 0.9})

FpSpread1.Sheets(0).Cells(3, 7).Border = New FarPoint.Win.ComplexBorder(Nothing, Nothing, Nothing, bottomborder)
