Customizing the Appearance of an Outline (Range Group)
Support Options
Spread Windows Forms 6.0 Product Documentation > Developer's Guide > Customizing Row or Column Interaction > Managing Outlines (Range Groups) of Rows and Columns > Customizing the Appearance of an Outline (Range Group)

Glossary Item Box

You can customize the appearance of the outline (range group) using properties on the SheetView class or in an interface renderer.

The two properties in the SheetView class that can be used to customize the appearance are:

You can also use an EnhancedInterfaceRenderer to customize the appearance. The properties include:

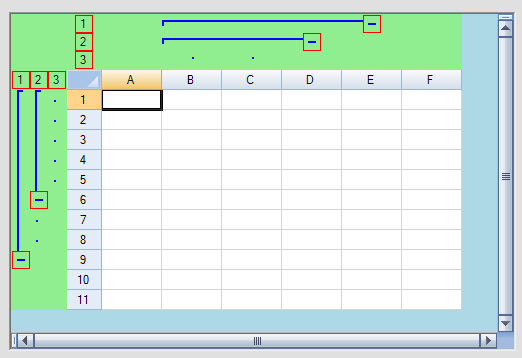

The line color also sets the color of the points in the outline. The following figure shows the results of the example code below where several of these properties are set.

Outline Custom Appearance

Notice that the outline background is different from the gray area of the spreadsheet.

Return to the overview of Managing Grouping of Rows of User Data

Using Code

Use the interface renderer to provide a custom look to outlines.

Example

This example creates an outline in the rows and in the columns and changes various colors. The result is shown in the figure above.

C# Copy Code
fpSpread1.ActiveSheet.Rows.Count = 11;fpSpread1.ActiveSheet.Columns.Count = 6;



FarPoint.Win.Spread.EnhancedInterfaceRenderer outlinelook = new FarPoint.Win.Spread.EnhancedInterfaceRenderer();

outlinelook.RangeGroupBackgroundColor = Color.LightGreen;

outlinelook.RangeGroupButtonBorderColor = Color.Red;

outlinelook.RangeGroupLineColor = Color.Blue;



fpSpread1.InterfaceRenderer = outlinelook;



fpSpread1.ActiveSheet.AddRangeGroup(0, 8, true);

fpSpread1.ActiveSheet.AddRangeGroup(0, 5, true);



fpSpread1.ActiveSheet.AddRangeGroup(1, 3, false);

fpSpread1.ActiveSheet.AddRangeGroup(1, 2, false);

VB Copy Code
FpSpread1.ActiveSheet.Rows.Count = 11

FpSpread1.ActiveSheet.Columns.Count = 6



Dim outlinelook As New FarPoint.Win.Spread.EnhancedInterfaceRenderer

outlinelook.RangeGroupBackgroundColor = Color.LightGreen

outlinelook.RangeGroupButtonBorderColor = Color.Red

outlinelook.RangeGroupLineColor = Color.Blue



fpSpread1.InterfaceRenderer = outlinelook;



FpSpread1.ActiveSheet.AddRangeGroup(0, 8, True)

FpSpread1.ActiveSheet.AddRangeGroup(0, 5, True)



FpSpread1.ActiveSheet.AddRangeGroup(1, 3, False)

FpSpread1.ActiveSheet.AddRangeGroup(1, 2, False)
