Using an Outline (Range Group) of Rows or Columns
Support Options
Spread Windows Forms 6.0 Product Documentation > Developer's Guide > Customizing Row or Column Interaction > Managing Outlines (Range Groups) of Rows and Columns > Using an Outline (Range Group) of Rows or Columns

Glossary Item Box

You can form outlines of one or more rows or columns. There are several methods that create an outline (range group) such as the AddRangeGroup method for the SheetView class.

The outline appears at the left (for rows) and top (for columns) of the spreadsheet beyond the headers. Outlines can be nested, creating levels of outlines. The numbered boxes that appear in the outline area allow you to expand or collapse all the outlines of that level. You can expand and collapse rows and columns by clicking on the expand and collapse icons or on the numbered outline headers.

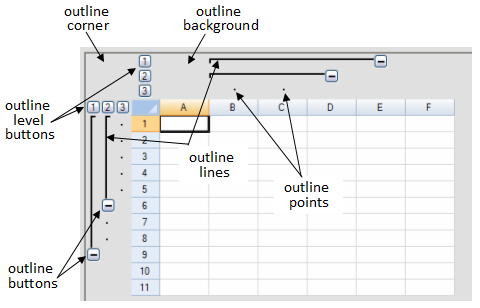

The figure below shows three levels of outline for rows and columns, and shows the terminology of the parts of the outline area.

Outline Parts

See the IRangeGroup interface for more examples.

Return to the overview of Managing Grouping of Rows of User Data

Using Code

Use AddRangeGroup to add outlines and use the sheet properties to customize the appearance of the outline parts.

Example

This example creates two column outline groups.

C# Copy Code
fpSpread1.ActiveSheet.Rows.Count = 11;

fpSpread1.ActiveSheet.Columns.Count = 6;



fpSpread1.InterfaceRenderer = null;

fpSpread1.ActiveSheet.RangeGroupBackgroundColor = Color.LightGreen;

fpSpread1.ActiveSheet.RangeGroupButtonStyle = FarPoint.Win.Spread.RangeGroupButtonStyle.Enhanced;



fpSpread1.ActiveSheet.AddRangeGroup(0, 8, true);

fpSpread1.ActiveSheet.AddRangeGroup(0, 5, true);



fpSpread1.ActiveSheet.AddRangeGroup(1, 3, false);

fpSpread1.ActiveSheet.AddRangeGroup(1, 2, false);

VB Copy Code
FpSpread1.ActiveSheet.Rows.Count = 11

FpSpread1.ActiveSheet.Columns.Count = 6



FpSpread1.InterfaceRenderer = Nothing

FpSpread1.ActiveSheet.RangeGroupBackgroundColor = Color.LightGreen

FpSpread1.ActiveSheet.RangeGroupButtonStyle = FarPoint.Win.Spread.RangeGroupButtonStyle.Enhanced



FpSpread1.ActiveSheet.AddRangeGroup(0, 8, True)

FpSpread1.ActiveSheet.AddRangeGroup(0, 5, True)



FpSpread1.ActiveSheet.AddRangeGroup(1, 3, False)

FpSpread1.ActiveSheet.AddRangeGroup(1, 2, False)
