Setting a Color Picker Cell
Support Options
Spread Windows Forms 6.0 Product Documentation > Developer's Guide > Customizing Interaction with Cell Types > Working with Graphical Cell Types > Setting a Color Picker Cell

Glossary Item Box

You can allow your end user to select a color from a color picker using the color picker cell. A color picker cell displays a dialog for selecting a color. There are several options on the color dialog.

When a color picker cell is selected it displays a single color, which can appear either in a box or filling the entire area of the cell. Optionally text can be displayed.

Color picker default cell

When the cell is double-clicked, either the drop-down color picker is displayed or the pop-up color dialog is displayed. There are several options for the display of the color dialog. Here is the pop-up color dialog:

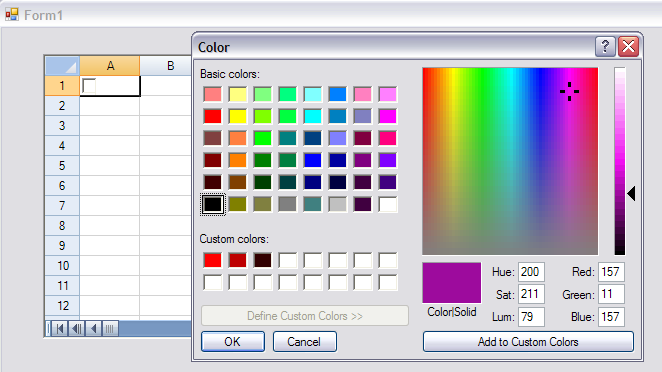

Pop-up color dialog for color picker cell

And here is the drop-down color picker:

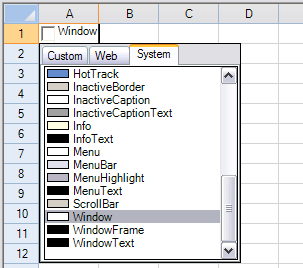

Drop-down color picker for color picker cell

To create a color picker cell, use the ColorPickerCellType class. Create a color picker cell using the procedure and example shown below.

Customizing the Color Cell

The options for the color picker cell are in the ColorPickerStyle enumeration.

Color picker cell style options

Customizing the Color Dialog

The color picker cell allows these customizations of the color dialog.

Property

Description

AllowFullOpen

Set whether to allow the color dialog to open fully to show the custom color selector.

AnyColor

Set whether the color dialog displays all available colors in the set of basic colors.

Caption

Set the text that appears in the cell (if any).

CustomColors

Set the custom colors shown in the color dialog.

DialogShowing

Set whether to automatically display the color dialog.

DropDown

Set whether to use the drop-down color picker (not the pop-up color dialog).

FullOpen

Set whether the color dialog opens fully to show controls used to create custom colors.

SolidColorOnly

Set whether the color dialog restricts users to selecting solid colors only.

Style

Set the style of the color dialog.

UnknownText

Set the text for an unknown color.

UnknownTextStyle

Set the style of the text for an unknown color.

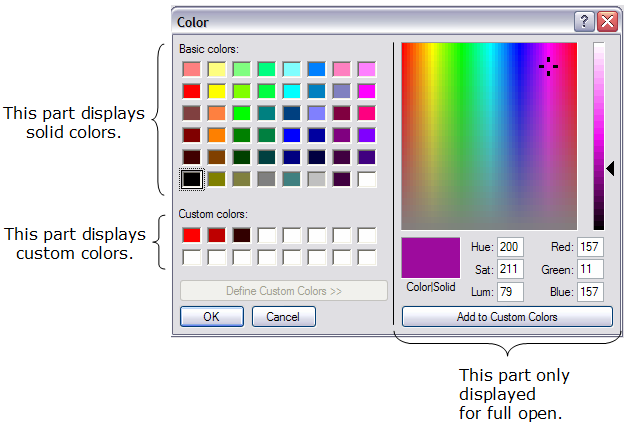

Color dialog box parts

See Also

Note that some graphical elements in certain cell types are affected by XP themes (visual styles). Setting the VisualStyles property of the Spread component to "off" can allow visual customizations of those graphical cell types to work as expected. For more information, refer to Using XP Themes with the Component.

For more information on the properties and methods of this cell type, refer to the ColorPickerCellType class.

For more information on other graphical cell types, refer to Working with Graphical Cell Types.

Using the Properties Window

  1. At design time, in the Properties window, select the Spread component.
  2. Select the Sheets property.
  3. Click the button to display the SheetView Collection Editor.
  4. In the Members list, select the sheet in which the cells appear.
  5. In the property list, select the Cells property and then click the button to display the Cell, Column, and Row Editor.
  6. Select the cells for which you want to set the cell type.
  7. In the property list, select the CellType property and choose the ColorPicker cell type.
  8. Expand the list of properties under the CellType property. Select and set these specific properties as needed.
  9. Click OK to close the Cell, Column, and Row Editor.
  10. Click OK to close the SheetView Collection Editor.

Using Code

  1. Define the color picker cell by creating an instance of the ColorPickerCellType class.
  2. Specify the properties of the color picker cell.
  3. Assign the color picker cell type to a cell or range of cells by setting the CellType property for a cell, column, row, or style to the ColorPickerCellType object.

Example

C# Copy Code
FarPoint.Win.Spread.CellType.ColorPickerCellType cp = new FarPoint.Win.Spread.CellType.ColorPickerCellType();

cp.AllowFullOpen = true;

cp.AnyColor = false;

cp.CustomColors = new int[] {255, 190, 50};

cp.FullOpen = true;

cp.Style = FarPoint.Win.Spread.CellType.ColorPickerStyle.BoxedWithText;

FarPoint.Win.Spread.CellType.ColorPickerCellType c = new FarPoint.Win.Spread.CellType.ColorPickerCellType(cp);

FpSpread1.ActiveSheet.Cells[0, 0].CellType = c;

VB Copy Code
Dim cp As New FarPoint.Win.Spread.CellType.ColorPickerCellType

cp.AllowFullOpen = True

cp.AnyColor = False

cp.CustomColors = New Integer() {255, 190, 50}

cp.FullOpen = True

cp.Style = FarPoint.Win.Spread.CellType.ColorPickerStyle.BoxedWithText

Dim c As New FarPoint.Win.Spread.CellType.ColorPickerCellType(cp)

FpSpread1.ActiveSheet.Cells(0, 0).CellType = c


Using the Spread Designer

  1. Select the cell or cells in the work area.
  2. In the property list, in the Misc category, select CellType. From the drop-down list, choose the ColorPicker cell type. Now expand the CellType property and various properties are available that are specific to this cell type. Select and set those properties as needed.

    Or right-click on the cell or cells and select Cell Type. From the list, select ColorPicker. In the CellType editor, set the properties you need. Click Apply.

  3. From the File menu choose Apply and Exit to apply your changes to the component and exit Spread Designer.
