Customizing a Line as an Arrow
Support Options
Spread Windows Forms 6.0 Product Documentation > Spread Designer Guide > Designing Shapes > Customizing Particular Shapes > Customizing a Line as an Arrow

Glossary Item Box

Besides an arrow shape, you can setup a line shape and change the ends to be arrow heads. You can create an arrow from a line shape in code or in the Spread Designer.

When you create a line in the Spread Designer you can then set the start cap and end cap using the shape properties as shown here. Create a shape in the designer using the Insert menu and shape option, then right-click on the shape to set additional properties.

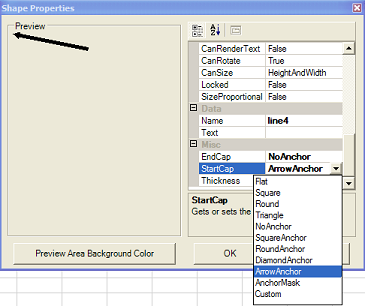

Spread Designer Shape Properties Dialog with Arrow Head Menu

The cap types are listed in this table, shown with a simulated image that roughly illustrates the appearance.

Type of Cap

Appearance

Flat

Flat Cap

Square

Square Cap

Round

Round Cap

Triangle

Triangle Cap

NoAnchor

No Anchor Cap

SquareAnchor

Square Anchor Cap

RoundAnchor

Round Anchor Cap

DiamondAnchor

Diamond Anchor Cap

ArrowAnchor

Arrow Anchor Cap

AnchorMask

Anchor Mask Cap

Custom

User-defined.

For more details on the line shape in code, refer to the LineShape class in the Assembly Reference.

Return to the overview of Customizing Particular Shapes.
