Margins Tab
Support Options

Glossary Item Box

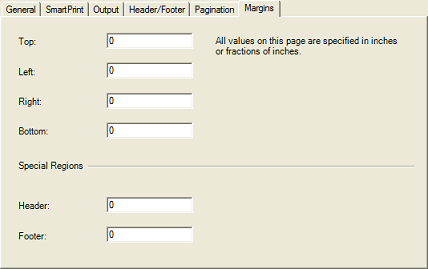

The Margins tab of the Sheet Print Settings dialog provides the following items:

Spread Designer Sheet Print Settings Dialog Margins Tab

This tab provides the following items:

Item

Description

Top

Set the top margin (between the top of the page and the top of the header) for the printed page

Left

Set the left margin for the printed page

Right

Set the right margin for the printed page

Bottom

Set the bottom margin (between the bottom of the page and the bottom of the footer) for the printed page

Header

Set the header margin (between the bottom of the header and the top of the contents) for the printed page

Footer Set the footer margin (between the top of the footer and the bottom of the contents) for the printed page

The units of measure are inches, so 3/4 of an inch would be 0.75. For a 1-inch margin, type in 1 or 1.0.

For more information on these settings, refer to the members of the PrintMargin class; the Spread Designer divides the inputted value by 100 in order to use the PrintMargin object which uses units of 100-ths of an inch.

For more information on print margins, refer to Customizing the Printed Page Layout of the Developer’s Guide.

Return to Sheet Print Settings Dialog.
