Elevation and Rotation
See Also Support Options
Spread for ASP.NET 7.0 Product Documentation > Developer's Guide > Working with the Chart Control > Understanding and Customizing Charts > Elevation and Rotation

Glossary Item Box

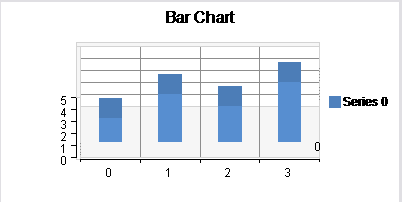

The elevation rotates the graph counterclockwise around the horizontal axis. The following image displays a graph with a changed elevation.

Elevation

For API information, see the Elevation property.

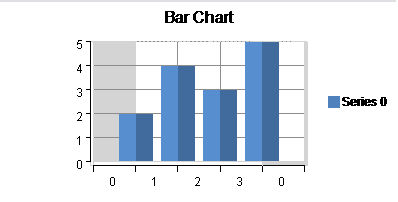

The rotation rotates the graph counterclockwise around the vertical axis. The following image displays a graph with a changed rotation.

Rotation

For API information, see the Rotation property.

Using Code

You can set the Elevation and Rotation properties.

Example

The following example sets Elevation and Rotation. Use this code with a 3D chart.

C# Copy Code
YPlotArea plotArea = new YPlotArea();
plotArea.Location = new PointF(0.2f, 0.2f);
plotArea.Size = new SizeF(0.6f, 0.6f);
plotArea.Rotation = 20;
plotArea.Elevation = 15;
VB Copy Code
Dim plotArea As New FarPoint.Web.Chart.YPlotArea()
plotArea.Location = New System.Drawing.PointF(0.2F, 0.2F)
plotArea.Size = New System.Drawing.SizeF(0.6F, 0.6F)
plotArea.Rotation = 20
plotArea.Elevation = 15

See Also
