Multiple series from the same major category are compatible with each other and can be combined in a single plot area. For example, a BarSeries and a LineSeries can be combined together in a YPlotArea.
For details on the API, see the YPlotArea class.
The following classes are used to create the bar and line series example:
Using Code
- Use the BarSeries and LineSeries classes to add data to the Chart control.
- Use the YPlotArea class to create the plot area.
- Set the location and size of the plot area.
- Add both series to the plot area.
- Create a label for the chart.
- Create a chart model and add the plot area and label to the model.
- Create a chart and add the chart model to it.
- Add the chart to the Spread control.
Example

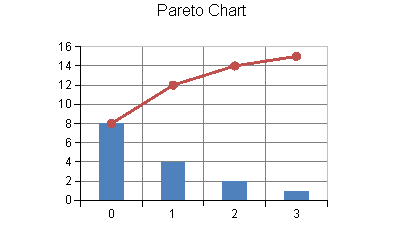

The following example demonstrates using unbound data to create a chart that uses a bar series and a line series.
| C# |  Copy Code |
|---|---|
BarSeries series0 = new BarSeries(); series0.Values.Add(8.0); series0.Values.Add(4.0); series0.Values.Add(2.0); series0.Values.Add(1.0); LineSeries series1 = new LineSeries(); series1.PointMarker = new BuiltinMarker(MarkerShape.Circle, 7.0f); series1.Values.Add(8.0); series1.Values.Add(12.0); series1.Values.Add(14.0); series1.Values.Add(15.0); YPlotArea plotArea = new YPlotArea(); plotArea.Location = new PointF(0.2f, 0.2f); plotArea.Size = new SizeF(0.6f, 0.6f); plotArea.Series.Add(series0); plotArea.Series.Add(series1); LabelArea labelArea = new LabelArea(); labelArea.Location = new PointF(0.5f, 0.02f); labelArea.AlignmentX = 0.5f; labelArea.AlignmentY = 0.0f; labelArea.Text = "Pareto Chart"; ChartModel model = new ChartModel(); model.LabelAreas.Add(labelArea); model.PlotAreas.Add(plotArea); FarPoint.Web.Spread.Chart.SpreadChart chart = new FarPoint.Web.Spread.Chart.SpreadChart(); chart.Model = model; FpSpread1.Sheets[0].Charts.Add(chart); |
|
| VB | Copy Code |
|---|---|
Dim series0 As New FarPoint.Web.Chart.BarSeries() series0.Values.Add(8.0) series0.Values.Add(4.0) series0.Values.Add(2.0) series0.Values.Add(1.0) Dim series1 As New FarPoint.Web.Chart.LineSeries() series1.PointMarker = New FarPoint.Web.Chart.BuiltinMarker(FarPoint.Web.Chart.MarkerShape.Circle, 7.0F) series1.Values.Add(8.0) series1.Values.Add(12.0) series1.Values.Add(14.0) series1.Values.Add(15.0) Dim plotArea As New FarPoint.Web.Chart.YPlotArea() plotArea.Location = New PointF(0.2F, 0.2F) plotArea.Size = New SizeF(0.6F, 0.6F) plotArea.Series.Add(series0) plotArea.Series.Add(series1) Dim labelArea As New FarPoint.Web.Chart.LabelArea() labelArea.Location = New PointF(0.5F, 0.02F) labelArea.AlignmentX = 0.5F labelArea.AlignmentY = 0.0F labelArea.Text = "Pareto Chart" Dim model As New FarPoint.Web.Chart.ChartModel() model.LabelAreas.Add(labelArea) model.PlotAreas.Add(plotArea) Dim chart As New FarPoint.Web.Spread.Chart.SpreadChart() chart.Model = model FpSpread1.Sheets(0).Charts.Add(chart) |
|
