The Icon Set data visualization allows you to use arguments to select an image from an image strip and display it either as a TextBox BackgroundImage, or as an Image Value. You can use the standard image strips included with ActiveReports, or create custom image strips.

Standard Image Strips

Name	Image
Checkbox
3TrafficLights
Arrows
Blank
Flags
GrayArrows
Quarters
Ratings
RedToBlack
Signs
Symbols1
Symbols2
TrafficLights

To use these image strips, place code like the following in the BackgroundImage property of a TextBox report control, or in the Value property of an Image report control.

Note: When using icon sets, you must set the Source property to Database.

Parameters

Icon Set. This designates the name of the icon set to use.
Icon 1 Value. A Boolean expression that, if it evaluates to True, renders this icon from the strip.
Icon 2 Value. A Boolean expression that, if it evaluates to True, renders this icon from the strip.
Icon 3 Value. A Boolean expression that, if it evaluates to True, renders this icon from the strip.
Icon 4 Value. A Boolean expression that, if it evaluates to True, renders this icon from the strip.
Icon 5 Value. A Boolean expression that, if it evaluates to True, renders this icon from the strip.

You can use static values or any expression that evaluates to a Boolean value. For icon sets with fewer than five icons, set the unused values to False.

Syntax

=IconSet("Flags", False, True, False, False, False)

Usage

Following the Icon Set argument, there are five Boolean arguments. The first argument to evaluate to True displays the corresponding image. Use data expressions that evaluate to a Boolean value to replace the literal values in the code above.

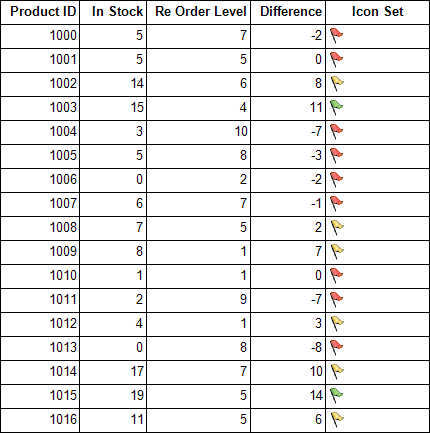

Example

Paste in the BackgroundImage Value property of a Textbox	Copy Code
=IconSet("Flags",Fields!Difference.Value > 10,Fields!Difference.Value > 0,Fields!Difference.Value <= 0,False,False)

In several of the included image strips, the last spots are empty. When using the Checkbox, 3TrafficLights, Flags, RedToBlack, Signs, Symbols1, Symbols2, or TrafficLights image strip, it generally makes sense to set the Boolean values for all of the unused icon spaces to False.

Custom Image Strips

The Blank image strip is included so that you can customize it. Drop down the section below for details.

Custom image strips

Custom image strips must conform to the following rules.

The format must be of a type that is handled by the .NET framework.
The size of the strip must be 120 x 24 pixels.
Each image must be 24 x 24 pixels in size.
There must be no more than five images in the strip.
If there are fewer than five images in the strip, there must be blank spaces in the image to fill in.

Types of Custom Images

Here is the syntax for various types of custom images, followed by examples of each.

External image syntax

=IconSet(location of image strip, condition#1, condition#2, condition#3, condition#4, condition#5)

External image path example	Copy Code
=IconSet("C:\Images\customstrip.bmp", 4 > 9, 5 > 9, 10 > 9, False, False)

External image URL example	Copy Code
=IconSet("http://mysite.com/images/customstrip.gif", 4 > 9, 5 > 9, 10 > 9, False, False)

Image from an assembly resource syntax

=IconSet("res:[Assembly Name]/Resource name", condition#1, condition#2, condition#3, condition#4, condition#5)

Assembly resource image example	Copy Code
=IconSet("res:ReportAssembly, Version=1.1.1.1./ReportAssembly.Resources.Images.CustomImage.png", 4 > 9, 5 > 9, 10 > 9, False, False)

Embedded image syntax

=IconSet("embeddedImage:ImageName", condition#1, condition#2, condition#3, condition#4, condition#5)

Embedded image example	Copy Code
=IconSet("embeddedImage:Grades", Fields!Score.Value >=90, Fields!Score.Value >=80, Fields!Score.Value >=70, Fields!Score.Value >=60, True)

Theme image syntax

=IconSet("theme:ThemeImageName", condition#1, condition#2, condition#3, condition#4, condition#5)

Theme image example	Copy Code
=IconSet("theme:Grades", Fields!Score.Value >=90, Fields!Score.Value >=80, Fields!Score.Value >=70, Fields!Score.Value >=60, True)

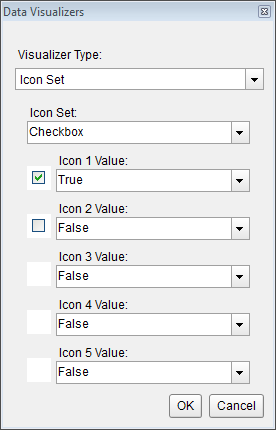

Data Visualizers Dialog
