The CodeReports folder contains the following reports - Invoice, InvoiceFiltered, NwindLabels and NwindLabelsFiltered.

The code reports are used to demonstrate how the ActiveReports Compiled Report HttpHandler functions. For more details, see HttpHandlers.aspx below.

The RpxReports folder contains the following reports - Invoice, InvoiceFiltered, NwindLabels, NwindLabelsFiltered and Params.

The Invoice.rpx report is used to demonstrate the Web Viewer control options and is opened by clicking WebControl for ASP.NET on the Default.aspx page. This report is also opened by clicking the Custom Exporting PDF Example option on the Default.aspx page. For detailed information on the Invoice report, see the Cross Section Control Sample.

The NwindLabels report is opened by clicking the Custom Exporting HTML Example option on the Default.aspx page.

The Params report is used by the ParameterReport.aspx page to demonstrate how to generate a report by passing a parameter to the report.

All reports from this folder are used to demonstrate the Flash Viewer options. You can select one of these reports from the list on the FlashViewer.aspx page.

The Themes folder contains themes to use on the Flash Viewer. Following themes can be used for the Flash Viewer.

• FluorescentBlue.swf
• Office.swf
• OliveGreen.swf
• Orange.swf
• VistaAero.swf
• WindowsClassic.swf
• XP.swf

The report web service is required for proper functioning of the Web Viewer. The ActiveReports.ReportService.asmx is added automatically to the project when you place the WebViewer control on the form. You can also add this service by using Add New Item in the Visual Studio 2010 Project menu.

For the information on how to use the WebViewer control, see Getting Started with the Web Viewer.

This Web form is displayed by clicking the Custom Exporting HTML Example option on the Default.aspx page.

In CustomExportHtml.aspx, the NWindLabels report is outputted to the ReportOutput folder using the CustomHtmlOutput class and the exported HTML is displayed in the browser.

Note: This sample requires write permissions to the ReportOutput folder that is located in the web samples directory.

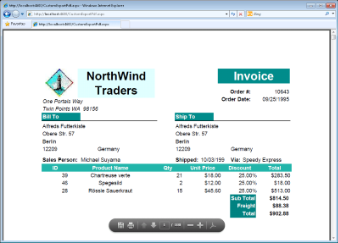

This Web form is displayed by clicking the Custom Exporting PDF Example option on the Default.aspx page. In CustomExportPdf.aspx, the Invoice report is exported to memory stream and then outputted in the browser.

Note: This sample requires write permissions to the ReportOutput folder that is located in the web samples directory.

This class is used for exporting a report to the HTML format. The CustomHtmlOutput class implements the required IOutputHtml in the HTML export and saves the output results to a file with a unique name.

This is the main Web form of the sample that shows the introductory text and links to the following sample pages.

• WebControl for ASP.NET (WebControl.aspx)
• FlashViewer Control (FlashViewerIntro.aspx)
• HTTPHandlers (HttpHandlers.aspx)
• Custom Exporting PDF Example (Invoice report)
• Custom Exporting HTML Example (NWindLabels report)
• Parameterized Report Example(ParameterReport.aspx)

This is a web form with the Web Viewer that is displayed after you click the View Report button on the ActiveReports9 Flash WebViewer Sample.

In the Properties window, notice that the ViewerType property is set to FlashViewer, and the Height and Width properties are set to 100%. (This ensures that the viewer resizes to fill the browser window.)

For information on the Flash Viewer, see Using the Flash Viewer.

This file is used for localization and is necessary only if you want to use a language resource that is different from the default one. The default locale is U.S. English (en_US).

This file is located in the ...\ComponentOne\ActiveReports 9\Deployment\Flash folder.

This file is required for using the Flash Viewer and is located in the ...\ComponentOne\ActiveReports 9\Deployment\Flash folder.

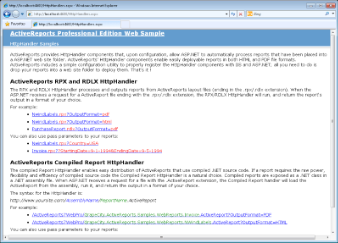

ActiveReports provides HttpHandler components that allow ASP.NET to automatically process reports that have been placed into an ASP.NET web site folder. ActiveReports' HttpHandler components enable easily deployable reports in both HTML and PDF file formats. ActiveReports includes a simple configuration utility to properly register the HttpHandler components with IIS and ASP.NET.

The RPX and RDLX HttpHandler processes and outputs reports from ActiveReports layout files (ending in the .rpx/.rdlx extension). When the ASP.NET receives a request for an ActiveReport file ending with the .rpx/.rdlx extension, the RPX/RDLX HttpHandler will run, and return the report's output in a format of your choice.

The compiled Report HttpHandler enables easy distribution of ActiveReports that use compiled .NET source code. Compiled reports are exposed as a .NET class in a .NET assembly file. When ASP.NET receives a request for a file with the .ActiveReport extension, the Compiled Report handler will load the ActiveReports from the assembly, run it, and return the output in a format of your choice.

For information on configuring the http handlers, see Configure HttpHandlers in IIS 6.x and Configure HttpHandlers in IIS 7.x. The required mapping for each feature has been listed below.

The configuration file that contains the httpHandlers that allow ActiveReports to process reports on the Web.

Note that you need to manually update version information here when you update your version of ActiveReports.
