The ColorScale2 data visualization displays a background color in a range of colors to indicate minimum and maximum values, and all shades in between.

Parameters

• Value. This is the field value in the report to evaluate. The data type is Single.
• Minimum. If the Value evaluates to this number, the StartColor renders.
• Maximum. If the Value evaluates to this number, the EndColor renders.
• StartColor. The HTML color string to use if the Value evaluates to the Minimum value.
• EndColor. The HTML color string to use if the Value evaluates to the Maximum value.

You can use static values or aggregate functions (e.g. Min or Max) to set the Minimum and Maximum parameters. For more information on these and other aggregate functions, see the Common Functions topic.

Syntax

=ColorScale2(Value, Minimum, Maximum, StartColor, EndColor)

Usage

Use an expression with this syntax in the BackgroundColor property of a Textbox control. This causes the background color to change depending on the value of the field you specified in the Value parameter, in the case of the example, InStock. Any values falling between the Minimum value and the Maximum render with a color between the StartColor and EndColor.

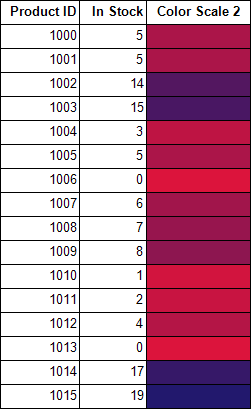

Example

=ColorScale2(Fields!InStock.Value,0,20,"Crimson","MidnightBlue")

Default Behavior

Dialog

When you select a TextBox control on your report, in the Properties window or Properties dialog, you can drop down the BackGroundColor property and select <Data Visualizer...> to launch the dialog. To build the data visualizer expression, select the appropriate values for each of the options in the dialog.

Note: If you select the Use a middle color check box, the expression used in the BackgroundColor property changes to ColorScale3. For more information, see ColorScale3.
