Parameters can be used with subreports to connect the subreport to the parent report. By setting a parameter for the field that links the parent report to the subreport, the parent report can pass the information to the subreport through the parameters.
![]() |
Subreports will not render PageHeader/Footer sections. |
This walkthrough illustrates how to set up a subreport using parameters to link the parent report to the subreport.
This walkthrough is split up into the following activities:
- Adding two ActiveReports to a Visual Studio project
- Connecting the parent report to a data source
- Connecting the child report to a data source using parameters
- Adding controls to display the data
- Adding the code needed to link the subreport to the current record's supplierID
- Adding the code to set the subreport's ShowParametersUI property to False
- Viewing the report
To complete the walkthrough, you must have access to the Northwind database.
A copy is located at C:\Program Files\Data Dynamics\ActiveReports for .NET 3.0\Data\NWIND.MDB.

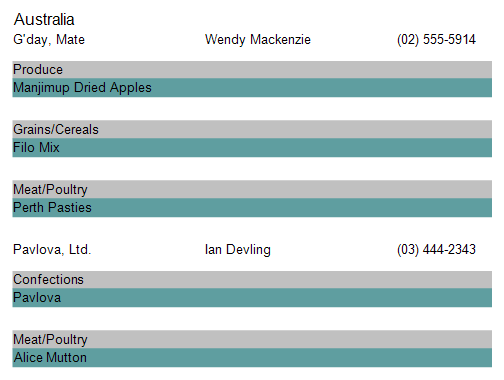

When you have finished this walkthrough, you will have a report that looks similar to the following.
Adding two ActiveReports to a Visual Studio project
To add two ActiveReports to a Visual Studio project
- Open a new project in Visual Studio.
- From the Project menu, select Add New Item.
- Select ActiveReports 3.0 File and rename the file rptParent.
- Click Open.
- From the Project menu, select Add New Item.
- Select ActiveReports 3.0 File and rename the file rptChild.
- Click Open.
Connecting the parent report to a data source
To connect the parent report to a data source
- Click on the gray report DataSource icon in the Detail section to open the report DataSource dialog.
- Select the "OLE DB" tab.
- Click on Build.
- Select Microsoft Jet 4.0 OLE DB Provider and click Next.
- Click the ellipsis button to browse for the access path to the NorthWind database. Click Open once you have selected the appropriate access path.
- Click OK to continue.
- In the Query field, type "Select * from suppliers order by country".
- Click OK to return to the report design surface.
Connecting the child report to a data source using parameters
To connect the child report to a data source
- Click on the gray report DataSource icon in the Detail section to open the report DataSource dialog.
- Select the "OLE DB" tab.
- Click on Build.
- Select Microsoft Jet 4.0 OLE DB Provider and click Next.
- Click the ellipsis button to browse for the access path to the NorthWind database. Click Open once you have selected the appropriate access path.
- Click OK to continue.
- In the Query field, type "SELECT * FROM products INNER JOIN categories ON products.categoryid = categories.categoryid WHERE products.supplierID =<%SupplierID%>".
- Click OK to return to the report design surface.
Adding controls to display the data
To add controls to the reports
- Add a GroupHeader/Footer section to rptParent by right-clicking the design surface of the report and selecting Insert > Group Header/Footer.
- Make the following changes to the group header:
- Change the Name property to ghSuppliers
- Change the DataField property to Country
- Add the following controls to rptParent, setting the properties as indicated:
Control DataField Name Text Section Location Miscellaneous TextBox Country txtCountry Country GroupHeader 0, 0 Font size = 12 TextBox CompanyName txtCompanyName Company Name Detail 0, 0 Size = 1.94, 0.19 TextBox ContactName txtContactName Contact Name Detail 2, 0 Size = 1.9, 0.19 TextBox Phone txtPhone Phone Detail 4, 0 Size = 1, 0.19 Subreport Subreport1 Detail 0, 0.31 Size = 5, 1 - Add a GroupHeader/Footer section to rptChild by right-clicking the design surface of the report and selecting Insert > Group Header/Footer.
- Make the following changes to the group header:
- Change the Name property to ghProducts
- Change the BackColor property to Silver
- Change the CanShrink property to True
- Change the DataField property to CategoryName
- Drag the following fields onto rptChild, setting the properties as indicated:
DataField Name Text Section Size Location CategoryName txtCategoryName Category Name GroupHeader 2.5, 0.19 0, 0 ProductName txtProductName Product Name Detail 2.5, 0.19 0, 0
Adding the code needed to link the subreport to the current record's supplierID
To write the code in Visual Basic or C#
- Double-click in the detail section of rptParent. This creates an event-handling method for rptParent's Detail_Format event. Add code to the handler to:
- Link the subreport to the current record's supplierID
The following example shows what the code for the method looks like.
'Visual Basic
Private Sub Detail1_Format(ByVal sender As Object, ByVal e As System.EventArgs) Handles _ Detail1.Format
Dim rpt As New rptChild()
Me.SubReport1.Report = rpt
End Sub
//C#
private void detail_Format(object sender, System.EventArgs eArgs)
{
rptChild rpt = new rptChild();
this.SubReport1.Report = rpt;
}
Adding the code to set the subreport's ShowParametersUI property to False
To write the code in Visual Basic or C#
- Double-click in the gray area below rptChild. This creates an event-handling method for the rptChild's ReportStart event. Add code to the handler to:
- Set the subreport's ShowParametersUI property to False
The following example shows what the code for the method looks like.
'Visual Basic
Private Sub rptChild_ReportStart(ByVal sender As Object, ByVal e As System.EventArgs) _ Handles MyBase.ReportStart
Me.ShowParameterUI = False
End Sub
//C#
private void rptChild_ReportStart(object sender, System.EventArgs eArgs)
{
this.ShowParameterUI = false;
}
Viewing the report
To view the report
- Add the ActiveReports viewer control to a Windows Form.
- Add the code needed to set the viewer document equal to the report document. See Using the ActiveReports Windows Form Viewer for help.
![]() |
You can quickly view your report at design time by clicking the Preview tab at the bottom of the designer. |
