Setting the Distance Between Items

The ItemDistance property sets the distance between the unselected C1CoverFlow items (for more information, see the Item Distance topic). In this topic, you will set the ItemDistance property to 1 so that the distance between items will be equal to the item size.

Note: The ItemDistance property doesn’t change the distance between the selected item and the items beside it. For more information, see the Selected Item Distance topic.

In Blend

Complete the following steps:

Select the C1CoverFlow control.
In the Properties panel, set the ItemDistance property to “1”.

In XAML

Add ItemDistance=”1” to the <c1ext:C1CoverFlow> tag so that the markup resembles the following:

XAML	Copy Code
<c1ext:C1CoverFlow Margin="0,0,87,233" ItemDistance=”1”>

In Code

Complete the following steps:

In XAML view, add “x:Name=”C1CoverFlow” to the <c1ext:C1CoverFlow> tag so that the control will have a unique identifier for you to call in code.
Add the following code beneath the InitializeComponent method:

Visual Basic
Copy Code
C1CoverFlow1.ItemDistance = 1

Visual Basic	Copy Code
C1CoverFlow1.ItemDistance = 1

C#	Copy Code
C1CoverFlow1.ItemDistance = 1;

Run the program.

This Topic Illustrates the Following:

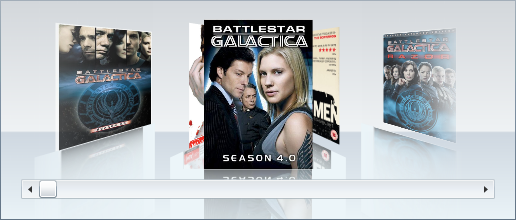

The following image demonstrates a C1CoverFlow control with its ItemDistance property set to 1.
