Inserting a Task

This topic illustrates how to insert a task at run time or in code. At run time, you can insert a task between existing tasks by selecting the row below where you want a new task to appear or you can use the index to programmatically specify the position of the new task.

Insert a task at run time

In the Task Name field of the grid, type a task name at the end of the task list.
Notice as you type the C1GanttView toolbar items will become disabled.

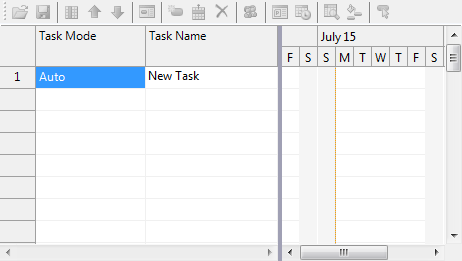

Press ENTER and the New Task item will appear in the grid. The C1GanttView toolbar items will become enabled.

Insert a task in code

To programmatically insert a task, complete the following:

To write code in Visual Basic

Visual Basic	Copy Code
Private Sub btnInsertTask_Click(sender As Object, e As EventArgs) Dim tasks As TaskCollection = ganttView.Tasks Dim index As Integer = tasks.IndexOf("Task 2") If index >= 0 Then ' create a new task Dim t As New Task() tasks.Insert(index, t) t.Mode = TaskMode.Automatic t.Name = "New Task" t.Start = New DateTime(2012, 6, 25) t.Duration = 3 End If End Sub

To write code in C#
