Expanding and Collapsing C1OrgChart Nodes

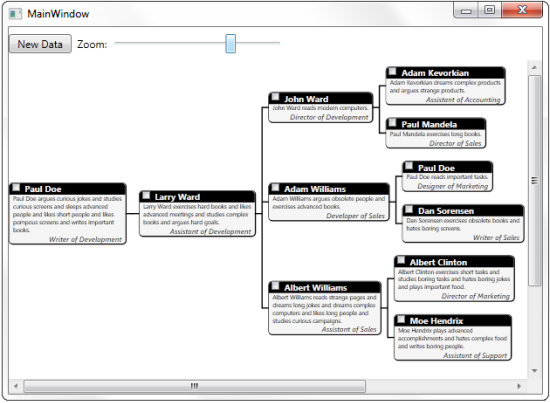

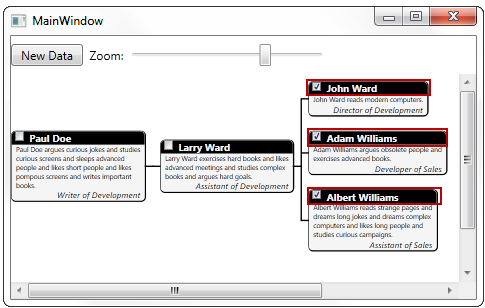

C1OrgChart allows you to create a collapsible C1OrgChart that behaves similarly to a TreeView control. Complete the following steps to expand and collapse C1OrgChart nodes:

From the Visual Studio File menu select New and choose Project.
In the New Project dialog box choose a language in the left-side menu, choose .NET Framework 4 in the Framework drop-down list, and enter OrgChart as a name for the project.
In the Solution Explorer, right-click the project name and choose Add Reference. In the Add Reference dialog box, locate and select the following assemblies and click OK to add references to your project:
- C1.Silverlight
- C1.Silverlight.OrgChart
Add the xmlns:c1="http://schemas.componentone.com/winfx/2006/xaml" namespace to your namespace declarations in the <Window> tag. This is a more general namespace that will work with most of the controls in Silverlight Edition.
Add the following namespace to your application's <Window> tag:
```
xmlns:local="clr-namespace:OrgChart"

```

Insert the following XAML markup directly above the <c1:C1OrgChart> </c1:C1OrgChart> tags to create the C1OrgChart data templates:

XAML	Copy Code
<Window.Resources> <!-- TemplateSelector: picks _tplDirector or _tlpOther --> <local:PersonTemplateSelector x:Key="_personTplSelector"> <local:PersonTemplateSelector.DirectorTemplate> <!-- data template for Directors --> <DataTemplate> <Border Background="Gold" BorderBrush="Black" BorderThickness="2 2 4 4" CornerRadius="6" Margin="20" MaxWidth="200"> <StackPanel Orientation="Vertical"> <Border CornerRadius="6 6 0 0" Background="Black"> <StackPanel Orientation="Horizontal"> <CheckBox Margin="4 0" IsChecked="{Binding IsCollapsed, Mode=TwoWay, RelativeSource={RelativeSource AncestorType=c1:C1OrgChart}}"/> <Ellipse Width="12" Height="12" Fill="Gold" Margin="4" /> <TextBlock Text="{Binding Name}" FontWeight="Bold" FontSize="16" Foreground="Gold" /> </StackPanel> </Border> <TextBlock Text="{Binding Position}" Padding="6 0" FontSize="14" FontStyle="Italic" HorizontalAlignment="Right" /> </StackPanel> </Border> </DataTemplate> </local:PersonTemplateSelector.DirectorTemplate> <local:PersonTemplateSelector.OtherTemplate> <!-- data template for everyone else --> <DataTemplate> <Border Background="WhiteSmoke" BorderBrush="Black" BorderThickness="1 1 2 2" CornerRadius="6" MaxWidth="200"> <StackPanel Orientation="Vertical"> <Border CornerRadius="6 6 0 0" Background="Black"> <StackPanel Orientation="Horizontal"> <CheckBox Margin="4 0" IsChecked="{Binding IsCollapsed, Mode=TwoWay, RelativeSource={RelativeSource AncestorType=c1:C1OrgChart}}"/> <TextBlock Text="{Binding Name}" FontWeight="Bold" FontSize="14" Foreground="WhiteSmoke" Padding="4 0 0 0"></TextBlock> </StackPanel> </Border> <TextBlock Text="{Binding Notes}" Padding="6 0" FontSize="9.5" TextWrapping="Wrap" /> <TextBlock Text="{Binding Position}" Padding="6 0" FontSize="12" FontStyle="Italic" HorizontalAlignment="Right" /> </StackPanel> </Border> </DataTemplate> </local:PersonTemplateSelector.OtherTemplate> </local:PersonTemplateSelector> </Window.Resources>

XAML

Copy Code

<Window.Resources>
        <!-- TemplateSelector: picks _tplDirector or _tlpOther -->
        <local:PersonTemplateSelector x:Key="_personTplSelector">
            <local:PersonTemplateSelector.DirectorTemplate>
                <!-- data template for Directors -->
                <DataTemplate>
                    <Border Background="Gold" BorderBrush="Black" BorderThickness="2 2 4 4" CornerRadius="6" Margin="20" MaxWidth="200">
                        <StackPanel Orientation="Vertical">
                            <Border CornerRadius="6 6 0 0" Background="Black">
                                <StackPanel Orientation="Horizontal">
                                    <CheckBox Margin="4 0" IsChecked="{Binding IsCollapsed, Mode=TwoWay, RelativeSource={RelativeSource AncestorType=c1:C1OrgChart}}"/>
                                    <Ellipse Width="12" Height="12" Fill="Gold" Margin="4" />
                                    <TextBlock Text="{Binding Name}" FontWeight="Bold" FontSize="16" Foreground="Gold" />
                                </StackPanel>
                            </Border>
                            <TextBlock Text="{Binding Position}" Padding="6 0" FontSize="14" FontStyle="Italic" HorizontalAlignment="Right" />
                        </StackPanel>
                    </Border>
                </DataTemplate>
            </local:PersonTemplateSelector.DirectorTemplate>
            <local:PersonTemplateSelector.OtherTemplate>
                <!-- data template for everyone else -->
                <DataTemplate>
                    <Border Background="WhiteSmoke" BorderBrush="Black" BorderThickness="1 1 2 2" CornerRadius="6" MaxWidth="200">
                        <StackPanel Orientation="Vertical">
                            <Border CornerRadius="6 6 0 0" Background="Black">
                                <StackPanel Orientation="Horizontal">
                                    <CheckBox Margin="4 0" IsChecked="{Binding IsCollapsed, Mode=TwoWay, RelativeSource={RelativeSource AncestorType=c1:C1OrgChart}}"/>
                                    <TextBlock Text="{Binding Name}" FontWeight="Bold" FontSize="14" Foreground="WhiteSmoke" Padding="4 0 0 0"></TextBlock>
                                </StackPanel>
                            </Border>
                            <TextBlock Text="{Binding Notes}" Padding="6 0" FontSize="9.5" TextWrapping="Wrap" />
                            <TextBlock Text="{Binding Position}" Padding="6 0" FontSize="12" FontStyle="Italic" HorizontalAlignment="Right" />
                        </StackPanel>
                    </Border>
                  </DataTemplate>
            </local:PersonTemplateSelector.OtherTemplate>
        </local:PersonTemplateSelector>
    </Window.Resources>

Insert the following markup to create the C1OrgChart control and its control panel. The following XAML will add a ScrollViewer control in addition to the C1OrgChart control:

XAML	Copy Code
<!-- org chart --> <ScrollViewer Background="White" Grid.Row="1" HorizontalScrollBarVisibility="Auto" VerticalScrollBarVisibility="Auto" Padding="0"> <c1:C1OrgChart x:Name="_orgChart" Grid.Row="1" Orientation="Horizontal" ItemTemplateSelector="{StaticResource _personTplSelector}" ConnectorStroke="Black" ConnectorThickness="2" IsCollapsed="False"> <!-- scale transform bound to slider --> <c1:C1OrgChart.RenderTransform> <ScaleTransform ScaleX="{Binding Value, ElementName=_sliderZoom}" ScaleY="{Binding Value, ElementName=_sliderZoom}" /> </c1:C1OrgChart.RenderTransform> <!-- template used to show tree nodes --> <!-- not used in this sample since we are using a template selector --> <!--<c1:C1OrgChart.ItemTemplate />--> </c1:C1OrgChart> </ScrollViewer>

XAML

Copy Code

<!-- org chart -->
        <ScrollViewer Background="White" Grid.Row="1" HorizontalScrollBarVisibility="Auto" VerticalScrollBarVisibility="Auto" Padding="0">
            <c1:C1OrgChart x:Name="_orgChart" Grid.Row="1" Orientation="Horizontal" ItemTemplateSelector="{StaticResource _personTplSelector}"
                           ConnectorStroke="Black" ConnectorThickness="2" IsCollapsed="False">
                <!-- scale transform bound to slider -->
                <c1:C1OrgChart.RenderTransform>
                    <ScaleTransform ScaleX="{Binding Value, ElementName=_sliderZoom}" ScaleY="{Binding Value, ElementName=_sliderZoom}" />
                </c1:C1OrgChart.RenderTransform>
                <!-- template used to show tree nodes -->
                <!-- not used in this sample since we are using a template selector -->
                <!--<c1:C1OrgChart.ItemTemplate />-->
            </c1:C1OrgChart>
        </ScrollViewer>

Add the following XAML markup between the </Window.Resources> and the <c1:C1OrgChart> tags:

XAML	Copy Code
<!-- layout root --> <Grid x:Name="LayoutRoot"> <Grid.RowDefinitions> <RowDefinition Height="Auto" /> <RowDefinition /> </Grid.RowDefinitions> <!-- control panel --> <StackPanel Orientation="Horizontal" VerticalAlignment="Top" Margin="0 8"> <Button Content="New Data" Padding="8 0" Click="Button_Click" /> <TextBlock Text=" Zoom: " VerticalAlignment="Center" /> <Slider x:Name="_sliderZoom" VerticalAlignment="Center" Minimum=".01" Maximum="1" Value="1" Width="200" /> </StackPanel>

XAML

Copy Code

<!-- layout root -->
    <Grid x:Name="LayoutRoot">
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto" />
            <RowDefinition />
        </Grid.RowDefinitions>
        <!-- control panel -->
        <StackPanel Orientation="Horizontal" VerticalAlignment="Top" Margin="0 8">
            <Button Content="New Data" Padding="8 0" Click="Button_Click" />
            <TextBlock Text="  Zoom: " VerticalAlignment="Center" />
            <Slider x:Name="_sliderZoom" VerticalAlignment="Center" Minimum=".01" Maximum="1" Value="1" Width="200" />
        </StackPanel>

Right-click the page and select View Code from the list. Import the following namespace into the code file:

Visual Basic	Copy Code
Imports C1.Silverlight.OrgChart

C#	Copy Code
using C1.Silverlight.OrgChart;

Insert the following code directly below the InitializeComponent() method:

Visual Basic	Copy Code
CreateData() End Sub Private Sub Button_Click(ByVal sender As Object, ByVal e As RoutedEventArgs) CreateData() End Sub Private Sub CreateData() Dim p = Data.Person.CreatePerson(10) _orgChart.Header = p End Sub Public Property DEMO_Orientation As Orientation Get Return _orgChart.Orientation End Get Set(value As Orientation) _orgChart.Orientation = value End Set End Property Public Property DEMO_HorizontalContentAlignment As HorizontalAlignment Get Return _orgChart.HorizontalContentAlignment End Get Set(value As HorizontalAlignment) _orgChart.HorizontalContentAlignment = value End Set End Property Public Property DEMO_VerticalContentAlignment As VerticalAlignment Get Return _orgChart.VerticalContentAlignment End Get Set(value As VerticalAlignment) _orgChart.VerticalContentAlignment = value End Set End Property End Class

Visual Basic

Copy Code

CreateData()
    End Sub
    Private Sub Button_Click(ByVal sender As Object, ByVal e As RoutedEventArgs)
        CreateData()
    End Sub
    Private Sub CreateData()
        Dim p = Data.Person.CreatePerson(10)
        _orgChart.Header = p
    End Sub
    Public Property DEMO_Orientation As Orientation
        Get
            Return _orgChart.Orientation
        End Get
        Set(value As Orientation)
            _orgChart.Orientation = value
        End Set
    End Property
    Public Property DEMO_HorizontalContentAlignment As HorizontalAlignment
        Get
            Return _orgChart.HorizontalContentAlignment
        End Get
        Set(value As HorizontalAlignment)
            _orgChart.HorizontalContentAlignment = value
        End Set
    End Property

    Public Property DEMO_VerticalContentAlignment As VerticalAlignment
        Get
            Return _orgChart.VerticalContentAlignment
        End Get
        Set(value As VerticalAlignment)
            _orgChart.VerticalContentAlignment = value
        End Set
    End Property
End Class

C#	Copy Code
CreateData(); } void Button_Click(object sender, RoutedEventArgs e) { CreateData(); } void CreateData() { var p = Data.Person.CreatePerson(10); _orgChart.Header = p; } public Orientation DEMO_Orientation { get { return _orgChart.Orientation; } set { _orgChart.Orientation = value; } } public HorizontalAlignment DEMO_HorizontalContentAlignment { get { return _orgChart.HorizontalContentAlignment; } set { _orgChart.HorizontalContentAlignment = value; } } public VerticalAlignment DEMO_VerticalContentAlignment { get { return _orgChart.VerticalContentAlignment; } set { _orgChart.VerticalContentAlignment = value; } } }

Copy Code

CreateData();
        }
        void Button_Click(object sender, RoutedEventArgs e)
        {
            CreateData();
        }
        void CreateData()
        {
            var p = Data.Person.CreatePerson(10);
            _orgChart.Header = p;
        }
        public Orientation DEMO_Orientation
        {
            get
            {
                return _orgChart.Orientation;
            }
            set
            {
                _orgChart.Orientation = value;
            }
        }
        public HorizontalAlignment DEMO_HorizontalContentAlignment
        {
            get
            {
                return _orgChart.HorizontalContentAlignment;
            }
            set
            {
                _orgChart.HorizontalContentAlignment = value;
            }
        }
        public VerticalAlignment DEMO_VerticalContentAlignment
        {
            get
            {
                return _orgChart.VerticalContentAlignment;
            }
            set
            {
                _orgChart.VerticalContentAlignment = value;
            }
        }
    }

Add the following code to select the templates for items being created:

Visual Basic	Copy Code
'Class used to select the templates for items being created. Public Class PersonTemplateSelector Inherits DataTemplateSelector Public Overrides Function SelectTemplate(item As Object, container As DependencyObject) As DataTemplate Dim p = TryCast(item, Data.Person) 'var e = Application.Current.RootVisual as FrameworkElement; 'return p.Position.IndexOf("Director") > -1 ' ? e.Resources["_tplDirector"] as DataTemplate ' : e.Resources["_tplOther"] as DataTemplate; Return If(p.Position.IndexOf("Director") > -1, DirectorTemplate, OtherTemplate) End Function ' collapse the chart to a given level Private Sub CollapseExpand(node As C1.WPF.OrgChart.C1OrgChart, level As Integer, maxLevel As Integer) If level >= maxLevel Then node.IsCollapsed = True Else node.IsCollapsed = False For Each subNode In node.ChildNodes CollapseExpand(subNode, level + 1, maxLevel) Next End If End Sub Public Property DirectorTemplate() As DataTemplate Get Return m_DirectorTemplate End Get Set(value As DataTemplate) m_DirectorTemplate = Value End Set End Property Private m_DirectorTemplate As DataTemplate Public Property OtherTemplate() As DataTemplate Get Return m_OtherTemplate End Get Set(value As DataTemplate) m_OtherTemplate = Value End Set End Property Private m_OtherTemplate As DataTemplate End Class

Visual Basic

Copy Code

'Class used to select the templates for items being created.
Public Class PersonTemplateSelector
    Inherits DataTemplateSelector
    Public Overrides Function SelectTemplate(item As Object, container As DependencyObject) As DataTemplate
        Dim p = TryCast(item, Data.Person)
        'var e = Application.Current.RootVisual as FrameworkElement;
        'return p.Position.IndexOf("Director") > -1
        '    ? e.Resources["_tplDirector"] as DataTemplate
        '    : e.Resources["_tplOther"] as DataTemplate;
        Return If(p.Position.IndexOf("Director") > -1, DirectorTemplate, OtherTemplate)
    End Function
    ' collapse the chart to a given level
    Private Sub CollapseExpand(node As C1.WPF.OrgChart.C1OrgChart, level As Integer, maxLevel As Integer)
        If level >= maxLevel Then
            node.IsCollapsed = True
        Else
            node.IsCollapsed = False
            For Each subNode In node.ChildNodes
                CollapseExpand(subNode, level + 1, maxLevel)
            Next
        End If
    End Sub
    Public Property DirectorTemplate() As DataTemplate
        Get
            Return m_DirectorTemplate
        End Get
        Set(value As DataTemplate)
            m_DirectorTemplate = Value
        End Set
    End Property
    Private m_DirectorTemplate As DataTemplate
    Public Property OtherTemplate() As DataTemplate
        Get
            Return m_OtherTemplate
        End Get
        Set(value As DataTemplate)
            m_OtherTemplate = Value
        End Set
    End Property
    Private m_OtherTemplate As DataTemplate
End Class

C#	Copy Code
/// Class used to select the templates for items being created. /// </summary> public class PersonTemplateSelector : DataTemplateSelector { public override DataTemplate SelectTemplate(object item, DependencyObject container) { var p = item as Data.Person; //var e = Application.Current.RootVisual as FrameworkElement; //return p.Position.IndexOf("Director") > -1 // ? e.Resources["_tplDirector"] as DataTemplate // : e.Resources["_tplOther"] as DataTemplate; return p.Position.IndexOf("Director") > -1 ? DirectorTemplate : OtherTemplate; } // collapse the chart to a given level void CollapseExpand(C1OrgChart node, int level, int maxLevel) { if (level >= maxLevel) { node.IsCollapsed = true; } else { node.IsCollapsed = false; foreach (var subNode in node.ChildNodes) { CollapseExpand(subNode, level + 1, maxLevel); } } } public DataTemplate DirectorTemplate { get; set; } public DataTemplate OtherTemplate { get; set; } } }

Copy Code

/// Class used to select the templates for items being created.
    /// </summary>
    public class PersonTemplateSelector : DataTemplateSelector
    {
        public override DataTemplate SelectTemplate(object item, DependencyObject container)
        {
            var p = item as Data.Person;
            //var e = Application.Current.RootVisual as FrameworkElement;
            //return p.Position.IndexOf("Director") > -1
            //    ? e.Resources["_tplDirector"] as DataTemplate
            //    : e.Resources["_tplOther"] as DataTemplate;
            return p.Position.IndexOf("Director") > -1
                ? DirectorTemplate
                : OtherTemplate;
        }
        // collapse the chart to a given level
        void CollapseExpand(C1OrgChart node, int level, int maxLevel)
        {
            if (level >= maxLevel)
            {
                node.IsCollapsed = true;
            }
            else
            {
                node.IsCollapsed = false;
                foreach (var subNode in node.ChildNodes)
                {
                    CollapseExpand(subNode, level + 1, maxLevel);
                }
            }
        }
        public DataTemplate DirectorTemplate { get; set; }
        public DataTemplate OtherTemplate { get; set; }
    }
}

Locate your application name in the Solution Explorer. Right-click on the name and select Add | New Item from the list. Select Code File from the template window and name the code file Person.cs or Person.vb.

Add the following namespaces to the Person code file:

Visual Basic	Copy Code
Imports System Imports System.Collections Imports System.Collections.Generic Imports System.Collections.ObjectModel

C#	Copy Code
using System; using System.Collections; using System.Collections.Generic; using System.Collections.ObjectModel;

Insert the following code below the namespaces to create the hierarchical data items which will be called to create the data in the C1OrgChart:

Visual Basic	Copy Code
'Class used to select the templates for items being created. Public Class PersonTemplateSelector Inherits DataTemplateSelector Public Overrides Function SelectTemplate(item As Object, container As DependencyObject) As DataTemplate Dim p = TryCast(item, Data.Person) 'var e = Application.Current.RootVisual as FrameworkElement; 'return p.Position.IndexOf("Director") > -1 ' ? e.Resources["_tplDirector"] as DataTemplate ' : e.Resources["_tplOther"] as DataTemplate; Return If(p.Position.IndexOf("Director") > -1, DirectorTemplate, OtherTemplate) End Function ' collapse the chart to a given level Private Sub CollapseExpand(node As C1.WPF.OrgChart.C1OrgChart, level As Integer, maxLevel As Integer) If level >= maxLevel Then node.IsCollapsed = True Else node.IsCollapsed = False For Each subNode In node.ChildNodes CollapseExpand(subNode, level + 1, maxLevel) Next End If End Sub Public Property DirectorTemplate() As DataTemplate Get Return m_DirectorTemplate End Get Set(value As DataTemplate) m_DirectorTemplate = Value End Set End Property Private m_DirectorTemplate As DataTemplate Public Property OtherTemplate() As DataTemplate Get Return m_OtherTemplate End Get Set(value As DataTemplate) m_OtherTemplate = Value End Set End Property Private m_OtherTemplate As DataTemplate End Class

Visual Basic

Copy Code

'Class used to select the templates for items being created.
Public Class PersonTemplateSelector
    Inherits DataTemplateSelector
    Public Overrides Function SelectTemplate(item As Object, container As DependencyObject) As DataTemplate
        Dim p = TryCast(item, Data.Person)
        'var e = Application.Current.RootVisual as FrameworkElement;
        'return p.Position.IndexOf("Director") > -1
        '    ? e.Resources["_tplDirector"] as DataTemplate
        '    : e.Resources["_tplOther"] as DataTemplate;
        Return If(p.Position.IndexOf("Director") > -1, DirectorTemplate, OtherTemplate)
    End Function
    ' collapse the chart to a given level
    Private Sub CollapseExpand(node As C1.WPF.OrgChart.C1OrgChart, level As Integer, maxLevel As Integer)
        If level >= maxLevel Then
            node.IsCollapsed = True
        Else
            node.IsCollapsed = False
            For Each subNode In node.ChildNodes
                CollapseExpand(subNode, level + 1, maxLevel)
            Next
        End If
    End Sub
    Public Property DirectorTemplate() As DataTemplate
        Get
            Return m_DirectorTemplate
        End Get
        Set(value As DataTemplate)
            m_DirectorTemplate = Value
        End Set
    End Property
    Private m_DirectorTemplate As DataTemplate
    Public Property OtherTemplate() As DataTemplate
        Get
            Return m_OtherTemplate
        End Get
        Set(value As DataTemplate)
            m_OtherTemplate = Value
        End Set
    End Property
    Private m_OtherTemplate As DataTemplate
End Class

C#	Copy Code
namespace Data { /// <summary> /// Our hierarchical data item: A Person has Subordinates of type Person. /// </summary> public class Person { ObservableCollection<Person> _list = new ObservableCollection<Person>(); #region object model public string Name { get; set; } public string Position { get; set; } public string Notes { get; set; } public IList<Person> Subordinates { get { return _list; } } public int TotalCount { get { var count = 1; foreach (var p in Subordinates) { count += p.TotalCount; } return count; } } public override string ToString() { return string.Format("{0}:\r\n\t{1}", Name, Position); } #endregion #region Person factory static Random _rnd = new Random(); static string[] _positions = "Director\|Manager\|Designer\|Developer\|Writer\|Assistant".Split('\|'); static string[] _areas = "Development\|Marketing\|Sales\|Support\|Accounting".Split('\|'); static string[] _first = "John\|Paul\|Dan\|Dave\|Rich\|Mark\|Greg\|Erin\|Susan\|Sarah\|Tim\|Trevor\|Kevin\|Mark\|Dewey\|Huey\|Larry\|Moe\|Curly\|Adam\|Albert".Split('\|'); static string[] _last = "Smith\|Doe\|Williams\|Sorensen\|Hansen\|Mandela\|Johnson\|Ward\|Woodman\|Jordan\|Mays\|Kevorkian\|Trudeau\|Hendrix\|Clinton".Split('\|'); static string[] _verb = "likes\|reads\|studies\|hates\|exercises\|dreams\|plays\|writes\|argues\|sleeps\|ignores".Split('\|'); static string[] _adjective = "long\|short\|important\|pompous\|hard\|complex\|advanced\|modern\|boring\|strange\|curious\|obsolete\|bizarre".Split('\|'); static string[] _noun = "products\|tasks\|goals\|campaigns\|books\|computers\|people\|meetings\|food\|jokes\|accomplishments\|screens\|pages".Split('\|'); public static Person CreatePerson(int level) { var p = CreatePerson(); if (level > 0) { level--; for (int i = 0; i < _rnd.Next(1, 4); i++) { p.Subordinates.Add(CreatePerson(_rnd.Next(level / 2, level))); } } return p; } public static Person CreatePerson() { var p = new Person(); p.Position = string.Format("{0} of {1}", GetItem(_positions), GetItem(_areas)); p.Name = string.Format("{0} {1}", GetItem(_first), GetItem(_last)); p.Notes = string.Format("{0} {1} {2} {3}", p.Name, GetItem(_verb), GetItem(_adjective), GetItem(_noun)); while (_rnd.NextDouble() < .5) { p.Notes += string.Format(" and {0} {1} {2}", GetItem(_verb), GetItem(_adjective), GetItem(_noun)); } p.Notes += "."; return p; } static string GetItem(string[] list) { return list[_rnd.Next(0, list.Length)]; } #endregion } }

Copy Code

namespace Data
{
    /// <summary>
    /// Our hierarchical data item: A Person has Subordinates of type Person.
    /// </summary>
    public class Person
    {
        ObservableCollection<Person> _list = new ObservableCollection<Person>();
        #region ** object model
        public string Name { get; set; }
        public string Position { get; set; }
        public string Notes { get; set; }
        public IList<Person> Subordinates
        {
            get { return _list; }
        }
        public int TotalCount
        {
            get
            {
                var count = 1;
                foreach (var p in Subordinates)
                {
                    count += p.TotalCount;
                }
                return count;
            }
        }
        public override string ToString()
        {
            return string.Format("{0}:\r\n\t{1}", Name, Position);
        }
        #endregion
        #region ** Person factory
        static Random _rnd = new Random();
        static string[] _positions = "Director|Manager|Designer|Developer|Writer|Assistant".Split('|');
        static string[] _areas = "Development|Marketing|Sales|Support|Accounting".Split('|');
        static string[] _first = "John|Paul|Dan|Dave|Rich|Mark|Greg|Erin|Susan|Sarah|Tim|Trevor|Kevin|Mark|Dewey|Huey|Larry|Moe|Curly|Adam|Albert".Split('|');
        static string[] _last = "Smith|Doe|Williams|Sorensen|Hansen|Mandela|Johnson|Ward|Woodman|Jordan|Mays|Kevorkian|Trudeau|Hendrix|Clinton".Split('|');
        static string[] _verb = "likes|reads|studies|hates|exercises|dreams|plays|writes|argues|sleeps|ignores".Split('|');
        static string[] _adjective = "long|short|important|pompous|hard|complex|advanced|modern|boring|strange|curious|obsolete|bizarre".Split('|');
        static string[] _noun = "products|tasks|goals|campaigns|books|computers|people|meetings|food|jokes|accomplishments|screens|pages".Split('|');
        public static Person CreatePerson(int level)
        {
            var p = CreatePerson();
            if (level > 0)
            {
                level--;
                for (int i = 0; i < _rnd.Next(1, 4); i++)
                {
                    p.Subordinates.Add(CreatePerson(_rnd.Next(level / 2, level)));
                }
            }
            return p;
        }
        public static Person CreatePerson()
        {
            var p = new Person();
            p.Position = string.Format("{0} of {1}", GetItem(_positions), GetItem(_areas));
            p.Name = string.Format("{0} {1}", GetItem(_first), GetItem(_last));
            p.Notes = string.Format("{0} {1} {2} {3}", p.Name, GetItem(_verb), GetItem(_adjective), GetItem(_noun));
            while (_rnd.NextDouble() < .5)
            {
                p.Notes += string.Format(" and {0} {1} {2}", GetItem(_verb), GetItem(_adjective), GetItem(_noun));
            }
            p.Notes += ".";
            return p;
        }
        static string GetItem(string[] list)
        {
            return list[_rnd.Next(0, list.Length)];
        }
        #endregion
    }
}

Press F5 to run your application. The C1OrgChart should resemble the following image:
Click the CheckBox in the corner of one of the Main Item nodes. Note how the C1OrgChart collapses:
