This topic is dedicated to providing a quick overview of the XAML used to create a C1FlexGrid control.
To get started developing, add a c1 namespace declaration in the root element tag:
xmlns:c1="http://schemas.componentone.com/winfx/2006/xaml"

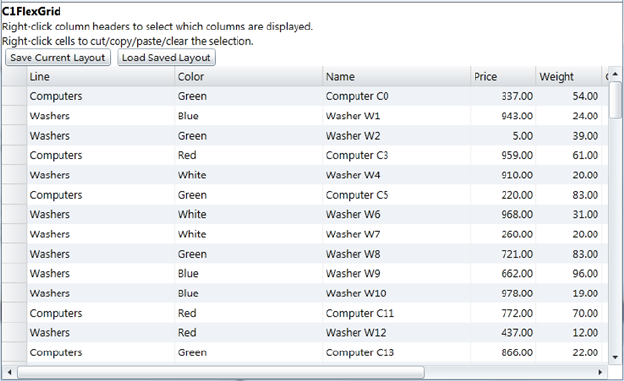

Here is an example of C1FlexGrid taken from the ColumnPicker sample:
Below is the XAML for the sample:
<UserControl x:Class="ColumnPicker.MainPage"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:c1="http://schemas.componentone.com/winfx/2006/xaml"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
mc:Ignorable="d"
FontFamily="Segoe UI" FontSize="13"
d:DesignHeight="300" d:DesignWidth="600">
<Grid x:Name="LayoutRoot" Background="White">
<Grid.RowDefinitions>
<RowDefinition Height="Auto" />
<RowDefinition />
</Grid.RowDefinitions>
<StackPanel Orientation="Vertical">
<TextBlock Text="C1FlexGrid" FontSize="14" FontWeight="Bold"/>
<TextBlock Text="Right-click column headers to select which columns are displayed." />
<TextBlock Text="Right-click cells to cut/copy/paste/clear the selection." />
<StackPanel Orientation="Horizontal">
<Button Content="Save Current Layout" Click="SaveLayout_Click" Margin="4 0" Padding="6 2"/>
<Button Content="Load Saved Layout" Click="LoadLayout_Click" Margin="4 0" Padding="6 2"/>
</StackPanel>
</StackPanel>
<c1:C1FlexGrid Name="_flex" Grid.Row="1" />
</Grid>
</UserControl>
