Multiple Axes

Multiple axes are commonly used when you have the following:

Two or more Data Series that have mixed types of data which make the scales very different

A wide range of data values that vary from Data Series to Data Series

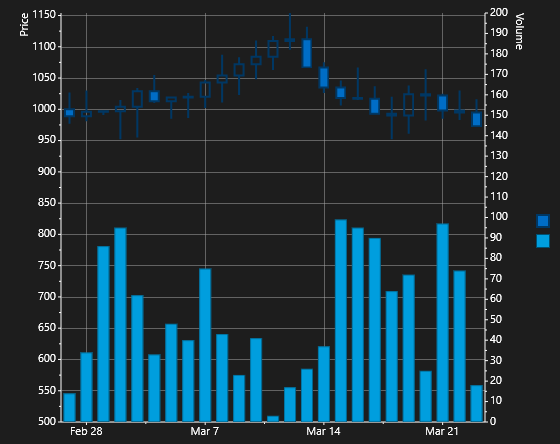

The following chart uses two Y Axes to effectively display financial data:

To create a chart that resembles the image above, you'll need a combination of XAML markup and code.

First, you'll create a Candle chart using XAML Markup:

XAML	Copy Code
<Chart:C1Chart x:Name="chart" Grid.Row="1" Height="450" Width="550" ChartType="Candle" Palette="Flow" Xaml:C1NagScreen.Nag="True"> <Chart:C1Chart.Data> <Chart:ChartData> <Chart:ChartData.Children> <Chart:HighLowOpenCloseSeries SymbolSize="9,9" SymbolStrokeThickness="2" XValueBinding="{Binding Time}" HighValueBinding="{Binding High}" LowValueBinding="{Binding Low}" OpenValueBinding="{Binding Open}" CloseValueBinding="{Binding Close}" PlotElementLoaded="Series_Loaded" /> <Chart:XYDataSeries AxisY="Volume" XValueBinding="{Binding Time}" ValueBinding="{Binding Volume}" /> </Chart:ChartData.Children> </Chart:ChartData> </Chart:C1Chart.Data> <Chart:C1ChartLegend Background="Transparent" BorderBrush="Transparent"/> </Chart:C1Chart>

XAML

Copy Code

<Chart:C1Chart x:Name="chart" Grid.Row="1" Height="450" Width="550" ChartType="Candle" Palette="Flow" Xaml:C1NagScreen.Nag="True">
            <Chart:C1Chart.Data>
                <Chart:ChartData>
                    <Chart:ChartData.Children>
                        <Chart:HighLowOpenCloseSeries
                        SymbolSize="9,9" SymbolStrokeThickness="2"
                        XValueBinding="{Binding Time}"
                        HighValueBinding="{Binding High}"
                        LowValueBinding="{Binding Low}"
                        OpenValueBinding="{Binding Open}"
                        CloseValueBinding="{Binding Close}"
                        PlotElementLoaded="Series_Loaded" />
                    <Chart:XYDataSeries
                        AxisY="Volume"
                        XValueBinding="{Binding Time}"
                        ValueBinding="{Binding Volume}" />
                    </Chart:ChartData.Children>
                </Chart:ChartData>
            </Chart:C1Chart.Data>
            <Chart:C1ChartLegend Background="Transparent" BorderBrush="Transparent"/>
        </Chart:C1Chart>

Then, you'll add the code that will add the two Y axes and the Column chart:

C#	Copy Code
chart.Data.Children[1].ChartType = ChartType.Column; chart.View.AxisX.Scale = 0.25; chart.View.AxisX.ScrollBar = new AxisScrollBar(); StackPanel spy = new StackPanel(); spy.Orientation = Orientation.Horizontal; spy.HorizontalAlignment = Windows.UI.Xaml.HorizontalAlignment.Left; TextBlock txtPrice = new TextBlock(); txtPrice.Text = "Price"; txtPrice.TextAlignment = TextAlignment.Right; txtPrice.VerticalAlignment = Windows.UI.Xaml.VerticalAlignment.Bottom; spy.Children.Add(txtPrice); chart.View.AxisY.Min = 500; chart.View.AxisY.Title = spy; Axis Volume = new Axis(); Volume.Name = "Volume"; Volume.Max = 200; Volume.Position = AxisPosition.Far; Volume.AxisType = AxisType.Y; StackPanel spv = new StackPanel(); TextBlock txtVol = new TextBlock(); txtVol.Text = "Volume"; txtVol.Width = 80; spv.Orientation = Orientation.Horizontal; spv.HorizontalAlignment = Windows.UI.Xaml.HorizontalAlignment.Left; spv.Children.Add(txtVol); Volume.Title = spv; chart.View.Axes.Add(Volume); // add panning interation by touch chart.GestureSlide = GestureSlideAction.Translate; chart.ManipulationMode = ManipulationModes.TranslateX \| ManipulationModes.TranslateY \| ManipulationModes.TranslateInertia; chart.ActionUpdateDelay = 0; NewData(); }

Copy Code

chart.Data.Children[1].ChartType = ChartType.Column;
                            chart.View.AxisX.Scale = 0.25;
                            chart.View.AxisX.ScrollBar = new AxisScrollBar();
        StackPanel spy = new StackPanel();
                        spy.Orientation = Orientation.Horizontal;
                        spy.HorizontalAlignment = Windows.UI.Xaml.HorizontalAlignment.Left;

                        TextBlock txtPrice = new TextBlock();
                        txtPrice.Text = "Price";
                        txtPrice.TextAlignment = TextAlignment.Right;
                        txtPrice.VerticalAlignment = Windows.UI.Xaml.VerticalAlignment.Bottom;
                        spy.Children.Add(txtPrice);
                        chart.View.AxisY.Min = 500;
                        chart.View.AxisY.Title = spy;
        Axis Volume = new Axis();
                        Volume.Name = "Volume";
                        Volume.Max = 200;
                        Volume.Position = AxisPosition.Far;
                        Volume.AxisType = AxisType.Y;
                        StackPanel spv = new StackPanel();
                        TextBlock txtVol = new TextBlock();
                        txtVol.Text = "Volume";
                        txtVol.Width = 80;
                        spv.Orientation = Orientation.Horizontal;
                        spv.HorizontalAlignment = Windows.UI.Xaml.HorizontalAlignment.Left;
                        spv.Children.Add(txtVol);

                        Volume.Title = spv;
                        chart.View.Axes.Add(Volume);

                        // add panning interation by touch
                        chart.GestureSlide = GestureSlideAction.Translate;
                        chart.ManipulationMode = ManipulationModes.TranslateX | ManipulationModes.TranslateY | ManipulationModes.TranslateInertia;
                        chart.ActionUpdateDelay = 0;
      NewData();
                    }

For the chart above, you'll also create sample data and bind it to the chart control:

C#	Copy Code
void NewData() { long ticks = DateTime.Now.Ticks; int len = 100; List<Quotation> data = SampleFinancialData.Create(len); chart.BeginUpdate(); chart.Data.ItemsSource = data; chart.View.AxisX.Min = data[0].Time.ToOADate() - 0.5; chart.View.AxisX.Max = data[len - 1].Time.ToOADate() + 0.5; chart.EndUpdate(); } private void Series_Loaded(object sender, EventArgs e) { } } public class Quotation { public DateTime Time { get; set; } public double Open { get; set; } public double Close { get; set; } public double High { get; set; } public double Low { get; set; } public double Volume { get; set; } } public class SampleFinancialData { static Random rnd = new Random(); public static List<Quotation> Create(int npts) { List<Quotation> data = new List<Quotation>(); DateTime dt = DateTime.Today.AddDays(0); for (int i = 0; i < npts; i++) { Quotation q = new Quotation(); q.Time = dt.AddDays(i); if (i > 0) q.Open = data[i - 1].Close; else q.Open = 1000; q.High = q.Open + rnd.Next(50); q.Low = q.Open - rnd.Next(50); q.Close = rnd.Next((int)q.Low, (int)q.High); q.Volume = rnd.Next(0, 100); data.Add(q); } return data; } } }

Copy Code

void NewData()
     {
       long ticks = DateTime.Now.Ticks;
       int len = 100;
       List<Quotation> data = SampleFinancialData.Create(len);
       chart.BeginUpdate();
       chart.Data.ItemsSource = data;
       chart.View.AxisX.Min = data[0].Time.ToOADate() - 0.5;
       chart.View.AxisX.Max = data[len - 1].Time.ToOADate() + 0.5;
       chart.EndUpdate();
     }
    private void Series_Loaded(object sender, EventArgs e)
     {

     }
   }
  public class Quotation
   {
     public DateTime Time
     {
       get;
       set;
     }
    public double Open
     {
       get;
       set;
     }
    public double Close
     {
       get;
       set;
     }
    public double High
     {
       get;
       set;
     }
    public double Low
     {
       get;
       set;
     }
    public double Volume
     {
       get;
       set;
     }
   }
  public class SampleFinancialData
   {
     static Random rnd = new Random();
     public static List<Quotation> Create(int npts)
     {
       List<Quotation> data = new List<Quotation>();
       DateTime dt = DateTime.Today.AddDays(0);
      for (int i = 0; i < npts; i++)
       {
         Quotation q = new Quotation();
        q.Time = dt.AddDays(i);
        if (i > 0)
           q.Open = data[i - 1].Close;
         else
           q.Open = 1000;
        q.High = q.Open + rnd.Next(50);
         q.Low = q.Open - rnd.Next(50);
        q.Close = rnd.Next((int)q.Low, (int)q.High);
        q.Volume = rnd.Next(0, 100);
        data.Add(q);
       }
      return data;
     }
   }
}

It is important to note that adding multiple axes is only limited by your chart area and overall chart readability.
