Williams %R

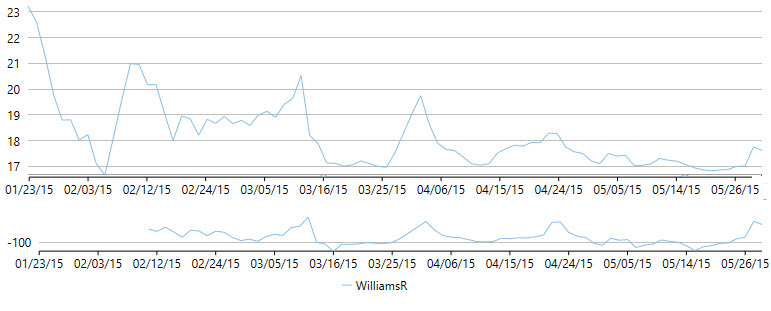

Williams %R indicator for the FinancialChart is a momentum indicator, which compares the current asset price to the highest price over the look back period. Its look-back is typically 14 periods. The indicator fluctuates between 0 and -100. It is the inverse of a fast Stochastic Oscillator. While the Williams %R displays the level of a stock's close relative to the highest high for the look-back period, the Stochastic Oscillator shows the level of a stock's close relative to the lowest low. Both the indicators show same lines, however scaling is different. It finds application in determining Overbought/Oversold levels, providing buy and sell signals, and momentum confirmations.

The following code snippet creates an instance of the WilliamsR class to use the indicator.

Visual Basic
C#

Visual Basic

Partial Public Class Indicators
    Inherits UserControl

    Private dataService As DataService = dataService.GetService()
    Private wr As New WilliamsR() With {
        Key.SeriesName = "WilliamsR"
    }

    Public Sub New()
        InitializeComponent()
    End Sub

    Public ReadOnly Property Data() As List(Of Quote)
        Get
            Return dataService.GetSymbolData("box")
        End Get
    End Property

    Public ReadOnly Property IndicatorType() As List(Of String)
        Get
            Return New List(Of String)() From {
                "Williams %R"
            }
        End Get
    End Property

    Private Sub OnIndicatorTypeSelectionChanged(sender As Object, e As SelectionChangedEventArgs)
        Dim ser As FinancialSeries = Nothing
        If cbIndicatorType.SelectedIndex = 0 Then
            ser = wr
        End If


        If ser IsNot Nothing AndAlso Not indicatorChart.Series.Contains(ser) Then
            indicatorChart.BeginUpdate()
            indicatorChart.Series.Clear()
            indicatorChart.Series.Add(ser)
            indicatorChart.EndUpdate()
        End If
    End Sub

    Private Sub OnFinancialChartRendered(sender As Object, e As C1.WPF.Chart.RenderEventArgs)
        If indicatorChart IsNot Nothing Then
            indicatorChart.AxisX.Min = DirectCast(financialChart.AxisX, IAxis).GetMin()
            indicatorChart.AxisX.Max = DirectCast(financialChart.AxisX, IAxis).GetMax()
        End If
    End Sub
End Class

public partial class Indicators : UserControl
{

    DataService dataService = DataService.GetService();
    WilliamsR wr = new WilliamsR() { SeriesName = "WilliamsR" };

    public Indicators()
    {
        InitializeComponent();
    }

    public List<Quote> Data
    {
        get
        {
            return dataService.GetSymbolData("box");
        }
    }

    public List<string> IndicatorType
    {
        get
        {
            return new List<string>()
            {
                "Williams %R"
            };
        }
    }

    void OnIndicatorTypeSelectionChanged(object sender, SelectionChangedEventArgs e)
    {
        FinancialSeries ser = null;
        if (cbIndicatorType.SelectedIndex == 0)
            ser = wr;


        if (ser != null && !indicatorChart.Series.Contains(ser))
        {
            indicatorChart.BeginUpdate();
            indicatorChart.Series.Clear();
            indicatorChart.Series.Add(ser);
            indicatorChart.EndUpdate();
        }
    }

    void OnFinancialChartRendered(object sender, C1.WPF.Chart.RenderEventArgs e)
    {
        if (indicatorChart != null)
        {
            indicatorChart.AxisX.Min = ((IAxis)financialChart.AxisX).GetMin();
            indicatorChart.AxisX.Max = ((IAxis)financialChart.AxisX).GetMax();
        }
    }
}
