Step 1: Adding FlexChart to the Project

This step enables you to create a simple chart application using FlexChart for WPF. When you add the FlexChart control to your Visual Studio project, you would have a functional column chart with dummy data.

Perform the following steps:

Create a new WPF Application in Visual Studio.
1. Select File | New | Project. The New Project dialog box appears.
2. In the New Project dialog box, select a language in the left-hand pane, and then select WPF Application from the list of applications in the center pane.
3. Give your application a Name, and then select OK.
Open the MainWindow.xaml file.
Place your cursor between the <Grid> </Grid> tags within either your Window or your UserControl, depending on the type of application you've created.

Locate the FlexChart control in Visual Studio's ToolBox. Double-click the control to add it to your application. The following reference is added to the project:
C1.WPF.FlexChart.4.dll
If the reference is not added, you need to add the same manually - right-click the References folder in the Solution Explorer and select Add | New Reference.

The XAML markup resembles the following:

XAML

<Window
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:c1="http://schemas.componentone.com/winfx/2006/xaml"
        x:Class="QuickStart.MainWindow"
        Title="MainWindow" Height="886.465" Width="1182.397">
        <Grid Margin="46,0,0,12">

        <c1:C1FlexChart x:Name="flexChart"
                        HorizontalAlignment="Left"
                        Height="377"
                        VerticalAlignment="Top"
                        Width="702"
                        Margin="130,179,0,0">
            <c1:Series AxisX="{x:Null}"
                       AxisY="{x:Null}"
                       Binding="Y"
                       BindingX="X"
                       Chart="{x:Null}"
                       SeriesName="Series 1">
                <c1:Series.ItemsSource>
                    <PointCollection>1,8 2,12 3,10 4,12 5,15</PointCollection>
                </c1:Series.ItemsSource>
            </c1:Series>
            <c1:Series AxisX="{x:Null}"
                       AxisY="{x:Null}"
                       Binding="Y"
                       BindingX="X"
                       Chart="{x:Null}"
                       SeriesName="Series 2">
                <c1:Series.ItemsSource>
                    <PointCollection>1,10 2,16 3,17 4,15 5,23</PointCollection>
                </c1:Series.ItemsSource>
            </c1:Series>
            <c1:Series AxisX="{x:Null}"
                       AxisY="{x:Null}"
                       Binding="Y"
                       BindingX="X"
                       Chart="{x:Null}"
                       SeriesName="Series 3">
                <c1:Series.ItemsSource>
                    <PointCollection>1,16 2,19 3,15 4,22 5,18</PointCollection>
                </c1:Series.ItemsSource>
            </c1:Series>
        </c1:C1FlexChart>

    </Grid>
</Window>

Run the application.

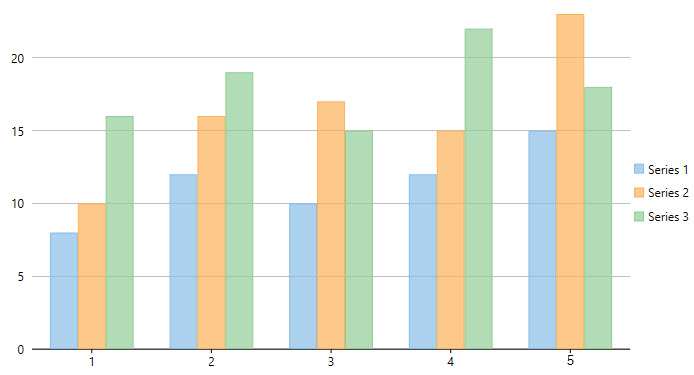

The output appears as shown in figure below.

You have successfully created a WPF Application containing the FlexChart control.
