The Spline Chart is similar to the line chart except that it connects data points by using splines rather than straight lines. The chart is used as an alternative to the line chart, but more specifically for representing data that requires the use of curve fittings.

You need to set the ChartType property to Spline either from the Properties window, in the code behind, or in XAML to create the Spline Chart.

You can set the Stacking property to Stacked or Stacked100pc to create the stacking Spline Chart.

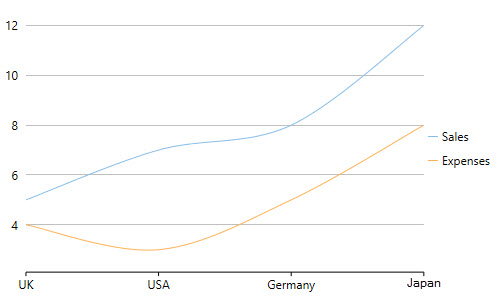

Spline Chart

Here is the code demonstrating the implementation:

XAML
Code

<c1:C1FlexChart x:Name="flexChart"
                BindingX="Country"
                ItemsSource="{Binding DataContext.Data}"
                ChartType="Spline">
    <c1:C1FlexChart.Series>
        <c1:Series SeriesName="Sales"
                   Binding="Sales"/>
        <c1:Series SeriesName="Expenses"
                   Binding="Expenses"/>
    </c1:C1FlexChart.Series>
</c1:C1FlexChart>

C#	Copy Code
flexChart.ChartType = C1.Chart.ChartType.Spline;
