Quick Start

This quick start topic provides step-by-step instructions for adding a TreeMap chart to WPF application, and show hierarchical data in it. In this topic, we consider an example where user wants to compare sales of books, music, videos, and gadgets (like computers and tablets) in XYZ city in a particular year.

The steps to display hierarchical data in TreeMap control are as follows:

Step 1: Add TreeMap to project
Step 2: Create a hierarchical data source
Step 3: Bind the TreeMap to data source
Step 4: Build and run the project

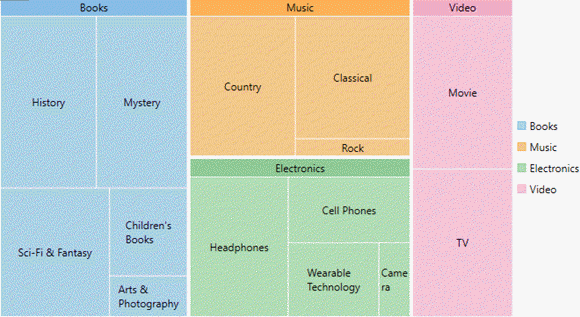

The following image exhibits and compares sales of different varieties of books, music, videos, and gadgets (like computers and tablets) in XYZ city in a particular year.

You need to set the ItemsSource property, of FlexChartBase class, to point to the collection of objects that contain data points to be plotted on the chart. To generate data items and display them in TreeMap chart, set BindingName and Binding properties. Set the BindingName property to the string value that specifies the name of the data item to display as chart rectangles, and Binding property to the string value that specifies the name of property of chart items that contain chart values (numeric values that help calculate the size of tree nodes).

To specify the level of hierarchical items to drill down and display in the chart set the MaxDepth property. Also, the display layout of the TreeMap is specified through its ChartType property. Additionally, color palette can be used to stylize the control and change its appearance.

Step 1: Add TreeMap to project

Create a Windows application in Visual Studio.
Drag and drop C1TreeMap control from Toolbox to page.
The following DLLs get added to your application:
- C1.WPF.dll
- C1.WPF.FlexChart.dll

Step 2: Create a hierarchical data source

Switch to the code view and add the following code to generate sales data of Books, Music, Electronic items, Videos, and Computers and tablets.

Visual Basic
C#

Visual Basic

Private rnd As New Random()
Private Function rand() As Integer
    Return rnd.[Next](10, 100)
End Function

Public ReadOnly Property Data() As Object()
    Get
        Dim data__1 = New Object() {New With {
         .type = "Music",
         .items = New () {New With {
             .type = "Country",
             .items = New () {New With {
                 .type = "Classic Country",
                 .sales = rand()
            }}
        }, New With {
             .type = "Rock",
             .items = New () {New With {
                 .type = "Funk Rock",
                 .sales = rand()
            }}
        }, New With {
             .type = "Classical",
             .items = New () {New With {
                 .type = "Symphonies",
                 .sales = rand()
            }}
        }}
    }, New With {
         .type = "Books",
         .items = New () {New With {
             .type = "Arts & Photography",
             .items = New () {New With {
                 .type = "Architecture",
                 .sales = rand()
            }}
        }, New With {
             .type = "Children's Books",
             .items = New () {New With {
                 .type = "Beginning Readers",
                 .sales = rand()
            }}
        }, New With {
             .type = "History",
             .items = New () {New With {
                 .type = "Ancient",
                 .sales = rand()
            }}
        }, New With {
             .type = "Mystery",
             .items = New () {New With {
                 .type = "Thriller & Suspense",
                 .sales = rand()
            }}
        }, New With {
             .type = "Sci-Fi & Fantasy",
             .items = New () {New With {
                 .type = "Fantasy",
                 .sales = rand()
            }}
        }}
    }, New With {
         .type = "Electronics",
         .items = New () {New With {
             .type = "Wearable Technology",
             .items = New () {New With {
                 .type = "Activity Trackers",
                 .sales = rand()
            }}
        }, New With {
             .type = "Cell Phones",
             .items = New () {New With {
                 .type = "Accessories",
                 .sales = rand()
            }}
        }, New With {
             .type = "Headphones",
             .items = New () {New With {
                 .type = "Earbud headphones",
                 .sales = rand()
            }}
        }, New With {
             .type = "Camera",
             .items = New () {New With {
                 .type = "Digital Cameras",
                 .sales = rand()
            }}
        }}
    }, New With {
         .type = "Video",
         .items = New () {New With {
             .type = "Movie",
             .items = New () {New With {
                 .type = "Children & Family",
                 .sales = rand()
            }}
        }, New With {
             .type = "TV",
             .items = New () {New With {
                 .type = "Comedy",
                 .sales = rand()
            }}
        }}
    }}
        Return data__1
    End Get
End Property

    Random rnd = new Random();
    int rand()
    {
        return rnd.Next(10, 100);
    }

    public object[] Data
    {
        get
        {
            var data = new object[] { new {
        type = "Music",
        items = new [] { new {
            type = "Country",
            items= new [] { new {
                type= "Classic Country",
                sales = rand()
            }}
        }, new {
            type= "Rock",
            items= new [] { new {
                type= "Funk Rock",
                sales= rand()
             } }
        }, new {
            type= "Classical",
            items= new [] { new {
                type= "Symphonies",
                sales= rand()
                } }
  }}
}, new {
        type= "Books",
  items= new [] { new {
            type= "Arts & Photography",
    items= new [] { new {
                type= "Architecture",
      sales= rand()
    }}
  }, new {
            type= "Children's Books",
    items= new [] { new {
                type= "Beginning Readers",
      sales= rand()
    } }
  }, new {
            type= "History",
    items= new [] { new {
                type= "Ancient",
      sales= rand()
    } }
  }, new {
            type= "Mystery",
    items= new [] { new {
                type= "Thriller & Suspense",
      sales= rand()
             } }
  }, new {
            type= "Sci-Fi & Fantasy",
    items= new [] { new {
                type= "Fantasy",
      sales= rand()
    }}
  } }
}, new {
        type= "Electronics",
  items= new [] { new {
            type= "Wearable Technology",
    items= new [] { new {
                type= "Activity Trackers",
      sales= rand()
    }}
  }, new {
            type= "Cell Phones",
    items= new [] { new {
                type= "Accessories",
      sales= rand()
    } }
  }, new {
            type= "Headphones",
    items= new [] { new {
                type= "Earbud headphones",
      sales= rand()
    } }
  }, new {
            type= "Camera",
    items= new [] { new {
                type= "Digital Cameras",
      sales= rand()
             } }
  } }
}, new {
        type= "Video",
  items= new [] { new {
            type= "Movie",
    items= new [] { new {
                type= "Children & Family",
      sales= rand()
    } }
  }, new {
            type= "TV",
    items= new [] { new {
                type= "Comedy",
      sales= rand()
    } }
  } }
} };
            return data;
        }

Step 3: Bind the TreeMap to data source

To bind the TreeMap control to the data source, use the following code.

XAML	Copy Code
<Window xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:d="http://schemas.microsoft.com/expression/blend/2008" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006" xmlns:local="clr-namespace:WpfTreeMapCS" xmlns:c1="http://schemas.componentone.com/winfx/2006/xaml" x:Class="WpfTreeMapCS.QuickStart" DataContext="{Binding RelativeSource={RelativeSource Mode=Self}}" mc:Ignorable="d" Title="QuickStart" Height="312" Width="434"> <Grid Margin="10,0,0,0"> <c1:C1TreeMap Binding="sales" MaxDepth="2" BindingName="type" ChildItemsPath="items" ItemsSource="{Binding DataContext.Data}" > <c1:C1TreeMap.DataLabel> <c1:DataLabel Content="{}{type}" Position="Center"> <c1:DataLabel.Style> <c1:ChartStyle/> </c1:DataLabel.Style> </c1:DataLabel> </c1:C1TreeMap.DataLabel> </c1:C1TreeMap> </Grid> </Window>

XAML

Copy Code

    <Window
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:WpfTreeMapCS"
        xmlns:c1="http://schemas.componentone.com/winfx/2006/xaml"
    x:Class="WpfTreeMapCS.QuickStart"
    DataContext="{Binding RelativeSource={RelativeSource Mode=Self}}"
        mc:Ignorable="d"
        Title="QuickStart"
    Height="312" Width="434">
    <Grid Margin="10,0,0,0">
        <c1:C1TreeMap Binding="sales"
                      MaxDepth="2"
                      BindingName="type"
                      ChildItemsPath="items"
                      ItemsSource="{Binding DataContext.Data}" >
            <c1:C1TreeMap.DataLabel>
                <c1:DataLabel Content="{}{type}"
                              Position="Center">
                    <c1:DataLabel.Style>
                        <c1:ChartStyle/>
                    </c1:DataLabel.Style>
                </c1:DataLabel>
            </c1:C1TreeMap.DataLabel>
        </c1:C1TreeMap>
    </Grid>
</Window>

Step 4: Build and run the project

Click Build | Build Solution to build the project.
Press F5 to run the project.
