The Candle Chart integrates Bar and Line charts to depict a range of values over time. It consists of visual elements known as candles that are further comprised of three elements: body, wick, and tail.

The body represents the opening and the closing value, while the wick and the tail represent the highest and the lowest value respectively.
A hollow body indicates a rising stock price (the closing value is greater than the opening value).
A filled body indicates a falling stock price (the opening value is greater than the closing value).

Consider a stock market scenario in which a stock is analyzed for five consecutive days in a particular week. The analysis is done to predict the prospective value of the stock. On the basis of the analysis, the general nature of the stock can be implied as well.

The Candle Chart is appropriate to represent the stock value summary.

Sample Data Table

Stock Day	Stock Open	Stock High	Stock Low	Stock Close
Monday	37	47	22	28
Tuesday	52	63	30	38
Wednesday	75	77	50	55
Thursday	65	77	50	76
Friday	26	67	22	55

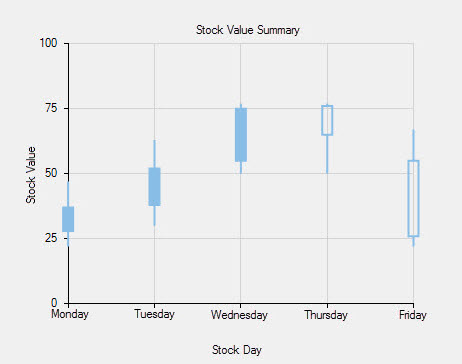

Candle Chart

The above chart depicts the stock value summary for five consecutive days in a specific week.

Number of series: one (Stock)
Number of Y values per point: four

The following code shows the implementation:

Visual Basic
C#

Visual Basic

' create a datatable
Dim dt As New DataTable("Stock Value Summary")

' add columns to the datatable
dt.Columns.Add("Stock Day", GetType(String))
dt.Columns.Add("Stock Open", GetType(Integer))
dt.Columns.Add("Stock High", GetType(Integer))
dt.Columns.Add("Stock Low", GetType(Integer))
dt.Columns.Add("Stock Close", GetType(Integer))

' add rows to the datatable
dt.Rows.Add("Monday", 37, 47, 22, 28)
dt.Rows.Add("Tuesday", 52, 63, 30, 38)
dt.Rows.Add("Wednesday", 75, 77, 50, 55)
dt.Rows.Add("Thursday", 65, 77, 50, 76)
dt.Rows.Add("Friday", 26, 67, 22, 55)

' clear data series collection
flexChart1.Series.Clear()

' create data series
Dim series1 As New C1.Win.Chart.Series()

' add the data series to the data series collection
flexChart1.Series.Add(series1)

' specify the datasource for the chart
flexChart1.DataSource = dt

' bind X-axis and Y-axis
FlexChart1.BindingX = "Stock Day"
series1.Binding = "Stock High,Stock Low,Stock Open,Stock Close"

' set the chart type to candlestick
flexChart1.ChartType = C1.Chart.ChartType.Candlestick

// create a datatable
DataTable dt = new DataTable("Stock Value Summary");

// add columns to the datatable
dt.Columns.Add("Stock Day", typeof(string));
dt.Columns.Add("Stock Open", typeof(int));
dt.Columns.Add("Stock High", typeof(int));
dt.Columns.Add("Stock Low", typeof(int));
dt.Columns.Add("Stock Close", typeof(int));

// add rows to the datatable
dt.Rows.Add("Monday", 37, 47, 22, 28);
dt.Rows.Add("Tuesday", 52, 63, 30, 38);
dt.Rows.Add("Wednesday", 75, 77, 50, 55);
dt.Rows.Add("Thursday", 65, 77, 50, 76);
dt.Rows.Add("Friday", 26, 67, 22, 55);

// clear data series collection
flexChart1.Series.Clear();

// create data series
C1.Win.Chart.Series series1 = new C1.Win.Chart.Series();

// add the data series to the data series collection
flexChart1.Series.Add(series1);

// specify the datasource for the chart
flexChart1.DataSource = dt;

// bind X-axis and Y-axis
flexChart1.BindingX = "Stock Day";
series1.Binding = "Stock High,Stock Low,Stock Open,Stock Close";

// set the chart type to candlestick
flexChart1.ChartType = C1.Chart.ChartType.Candlestick;
