Funnel

A funnel chart allows you to represent sequential stages in a linear process. For instance, a sales process that tracks prospects across the stages, such as Sales Prospects, Qualified Prospects, Price Quotes, Negotiations, and Closed Sales.

In the process, each stage represents a proportion (percentage) of the total. Therefore, the chart takes the funnel shape with the first stage being the largest and each following stage smaller than the predecessor.

Funnel charts are useful in identifying potential problem areas in processes where it is noticeable at what stages and rate the values decrease.

FlexChart offers the Funnel chart in two forms, as follows.

Trapezoid chart: Contains a pair of parallel sides.
Stacked Bar chart: Places related values on top of one another in the form of horizontal bars.

The following images show both Trapezoid and Stacked Bar charts displaying the number of orders across seven stages of an order fulfillment evaluation process.

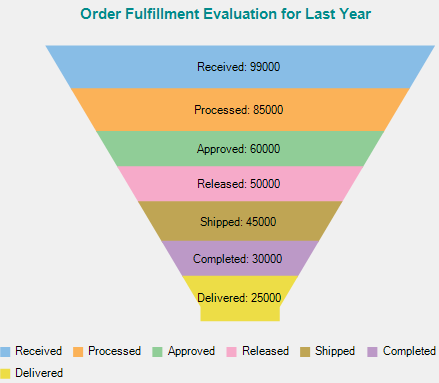

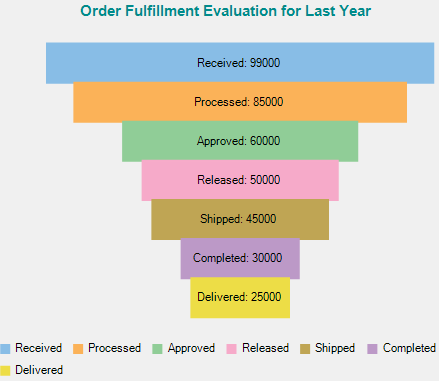

Trapezoid Chart	Stacked Bar Chart

In FlexChart, use the Funnel chart by setting the ChartType property to Funnel from the ChartType enum. Specify the type of the Funnel chart as either Trapezoid or Stacked Bar chart by setting the FunnelType property to Default or Rectangle from the FunnelChartType enum.

In addition, change the dimensions of the neck of the Funnel chart, when set as Trapezoid chart, by setting the FunnelNeckWidth and FunnelNeckHeight properties. These properties are available in the ChartOptions class accessible through the Options property of the C1FlexChart class.

The following code creates a class, DataCreator to create data containing values for the amount of orders across seven stages of an order fulfillment process.

Visual Basic
C#

Visual Basic

Class DataCreator
    Public Shared Function CreateFunnelData() As List(Of DataItem)
        Dim data = New List(Of DataItem)()
        data.Add(New DataItem("Received", 99000))
        data.Add(New DataItem("Processed", 85000))
        data.Add(New DataItem("Approved", 60000))
        data.Add(New DataItem("Released", 50000))
        data.Add(New DataItem("Shipped", 45000))
        data.Add(New DataItem("Completed", 30000))
        data.Add(New DataItem("Delivered", 25000))
        Return data
    End Function
End Class

Public Class DataItem
    Public Sub New(order__1 As String, value__2 As Integer)
        Order = order__1
        Value = value__2
    End Sub

    Public Property Order() As String
        Get
            Return m_Order
        End Get
        Set
            m_Order = Value
        End Set
    End Property
    Private m_Order As String
    Public Property Value() As Integer
        Get
            Return m_Value
        End Get
        Set
            m_Value = Value
        End Set
    End Property
    Private m_Value As Integer
End Class

class DataCreator
{
    public static List<DataItem> CreateFunnelData()
    {
        var data = new List<DataItem>();
        data.Add(new DataItem("Received", 99000));
        data.Add(new DataItem("Processed", 85000));
        data.Add(new DataItem("Approved", 60000));
        data.Add(new DataItem("Released", 50000));
        data.Add(new DataItem("Shipped", 45000));
        data.Add(new DataItem("Completed", 30000));
        data.Add(new DataItem("Delivered", 25000));
        return data;
    }
}

public class DataItem
{
    public DataItem(string order, int value)
    {
        Order = order;
        Value = value;
    }

    public string Order { get; set; }
    public int Value { get; set; }
}

The following code sets the chart type as Funnel, specifies the dimensions of the Funnel neck, and sets Header, Legend, and Data Labels of the chart.

XAML
Code

<Page
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:local="using:FunnelChart"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    xmlns:Chart="using:C1.Xaml.Chart"
    xmlns:Foundation="using:Windows.Foundation"
    x:Class="FunnelChart.MainPage"
    DataContext="{Binding RelativeSource={RelativeSource Mode=Self}}"
    mc:Ignorable="d" Width="972.674"
    Height="708.449">

    <Grid Background="{ThemeResource ApplicationPageBackgroundThemeBrush}">
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="29*"/>
            <ColumnDefinition Width="34*"/>
            <ColumnDefinition Width="297*"/>
            <ColumnDefinition Width="0*"/>
        </Grid.ColumnDefinitions>

        <Chart:C1FlexChart x:Name="flexChart"
                        BindingX ="Order"
                        ChartType="Funnel"
                        ItemsSource="{Binding Data}"
                        HorizontalAlignment="Left"
                        Height="529"
                        Margin="-146.333,169,0,0"
                        VerticalAlignment="Top"
                        Width="939"
                        Header="Order Fulfillment Evaluation for Last Year"
                        HeaderAlignment="Center"
                        LegendPosition="Bottom">
            <Chart:C1FlexChart.HeaderStyle>
                <Chart:ChartStyle FontFamily="Arial"
                               FontSize="13"
                               FontWeight="Bold"
                               Stroke="DarkCyan"/>
            </Chart:C1FlexChart.HeaderStyle>
            <Chart:Series Binding="Value">
            </Chart:Series>
            <Chart:C1FlexChart.DataLabel>
                <Chart:DataLabel Content="{}{Order}: {y}"
                              Position="Center"/>
            </Chart:C1FlexChart.DataLabel>
            <Chart:C1FlexChart.Options>
                <Chart:ChartOptions FunnelType="Default"
                                 FunnelNeckHeight="0.05"
                                 FunnelNeckWidth="0.2"/>
            </Chart:C1FlexChart.Options>
        </Chart:C1FlexChart>
    </Grid>

</Page>

MainPage.xaml.vb	Copy Code
Partial Public Class MainPage Inherits Page Private _data As List(Of DataItem) Public Sub New() InitializeComponent() End Sub Public ReadOnly Property Data() As List(Of DataItem) Get If _data Is Nothing Then _data = DataCreator.CreateFunnelData() End If Return _data End Get End Property End Class

MainPage.xaml.vb

Copy Code

Partial Public Class MainPage
    Inherits Page
    Private _data As List(Of DataItem)

    Public Sub New()
        InitializeComponent()
    End Sub

    Public ReadOnly Property Data() As List(Of DataItem)
        Get
            If _data Is Nothing Then
                _data = DataCreator.CreateFunnelData()
            End If

            Return _data
        End Get
    End Property
End Class

MainPage.xaml.cs	Copy Code
public partial class MainPage : Page { private List<DataItem> _data; public MainPage() { InitializeComponent(); } public List<DataItem> Data { get { if (_data == null) { _data = DataCreator.CreateFunnelData(); } return _data; } } }

MainPage.xaml.cs

Copy Code

public partial class MainPage : Page
{
    private List<DataItem> _data;

    public MainPage()
    {
        InitializeComponent();
    }

    public List<DataItem> Data
    {
        get
        {
            if (_data == null)
            {
                _data = DataCreator.CreateFunnelData();
            }

            return _data;
        }
    }
}
