Axis Annotation Rotation

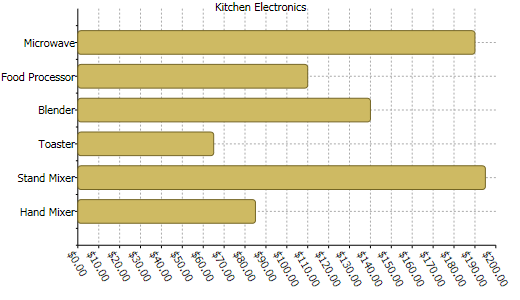

Use the AnnoAngle property to rotate the axis annotation counterclockwise from the specified number of degrees. This property is especially useful if the X-axis is crowded with annotation. Rotating the annotations +/- 30 or 60 degrees allows a much larger number of annotations in a confined space on horizontal axes. By utilizing the AnnoAngle property, the X-axis annotation does not overlap, as shown below:

XAML

<c1chart:C1Chart.View>

                <c1chart:ChartView>

                    <c1chart:ChartView.AxisX>

                        <c1chart:Axis Min="0" MajorUnit="10" AnnoFormat="c" AutoMin="false" AutoMax="false" Max="200" AnnoAngle="60"  />

                    </c1chart:ChartView.AxisX>

                </c1chart:ChartView>

            </c1chart:C1Chart.View>

C#

// Financial formatting

c1Chart1.View.AxisX.AnnoFormat = "c";

c1Chart1.View.AxisX.Min = 0;

c1Chart1.View.AxisX.AnnoAngle = "60";
