XY Charts

XY charts (also known as scatter plots) are used to show relationships between variables. Unlike the charts we introduced so far, in XY charts each point has two numeric values. By plotting one of the values against the X axis and one against the Y axis, the charts show the effect of one variable on the other.

We will continue our C1Chart tour using the same data we created earlier, but this time we will create XY charts that show the relationship between revenues from two products. For example, we might want to determine whether high Widget revenues are linked to high Gadgets revenues (perhaps the products work well together), or whether high Widget revenues are linked to low Gadgets revenues (perhaps people who buy one of the products don’t really need the other).

To do this, we will follow the same steps as before. The main differences are that this time we will add XYDataSeries objects to the chart’s Data.Children collection instead of the simpler DataSeries objects. The Linq statement used to obtain the data is also a little more refined and interesting.

Step 1) Choose the chart type:
The code clears any existing series, then sets the chart type:

public Window1()

{

   InitializeComponent();

   // Clear current chart

   c1Chart.Reset(true);

   // Set chart type

   c1Chart.ChartType = ChartType.XYPlot;

Step 2) Set up the axes:
Since we’re now creating XY series, we have two value axes (before we had a label axis and a value axis). We will attach titles and formats to both axes as we did before. We will also set the scale and annotation format as before. We will also use the AnnoAngle property to rotate the annotation labels along the X axis so they don’t overlap:

  // get axes

  var yAxis = _c1Chart.View.AxisY;

  var xAxis = _c1Chart.View.AxisX;

  // configure Y axis

  yAxis.Title = CreateTextBlock("Widget Revenues", 14, FontWeights.Bold);

  yAxis.AnnoFormat = "#,##0 ";

  yAxis.AutoMin = false;

  yAxis.Min = 0;

  yAxis.MajorUnit = 2000;

  yAxis.AnnoAngle = 0;

  // configure X axis

  xAxis.Title = CreateTextBlock("Gadget Revenues", 14, FontWeights.Bold);

  xAxis.AnnoFormat = "#,##0 ";

  xAxis.AutoMin = false;

  xAxis.Min = 0;

  xAxis.MajorUnit = 2000;

  xAxis.AnnoAngle = -90; // rotate annotations

Step 3) Add one or more data series
Once again, we will use the second data-provider method defined earlier:

  // get the data

  var data = GetSalesPerMonthData();

Next, we need to obtain XY pairs that correspond to the total revenues for Widgets and Gadgets at each date. We can use Linq to obtain this information directly from our data:

  // group data by sales date

  var dataGrouped = from r in data

    group r by r.Date into g

    select new

    {

      Date = g.Key, // group by date

      Widgets = (from rp in g // add Widget revenues

        where rp.Product == "Widgets"

        select g.Sum(p => rp.Revenue)).Single(),

      Gadgets = (from rp in g // add Gadget revenues

        where rp.Product == "Gadgets"

        select g.Sum(p => rp.Revenue)).Single(),

    };

    // sort data by widget sales

    var dataSorted = from r in dataGrouped

      orderby r.Gadgets

      select r;

The first Linq query starts by grouping the data by Date. Then, for each group it creates a record containing the Date and the sum of revenues within that date for each of the products we are interested in. The result is a list of objects with three properties: Date, Widgets, and Gadgets. This type of data grouping and aggregation is a powerful feature of Linq.

The second Linq query simply sorts the data by Gadget revenue. These are the values that will be plotted on the X axis, and we want them to be in ascending order. Plotting unsorted values would look fine if we displayed only symbols (ChartType = XYPlot), but it would look messy if we chose other chart types such as Line or Area.

Once the data has been properly grouped, summarized, and sorted, all we need to do is create one single data series, and assign one set of values to the ValuesSource property and the to the XValuesSource property:

  // create the new XYDataSeries

  var ds = new XYDataSeries();

  // set series label (displayed in a C1ChartLegend)

  ds.Label = "Revenue:\r\nWidgets vs Gadgets";

  // populate Y values

  ds.ValuesSource = (

    from r in dataSorted

    select r.Widgets).ToArray();

  // populate X values

  ds.XValuesSource = (

    from r in dataSorted

    select r.Gadgets).ToArray();

  // add the series to the chart

  c1Chart.ChartData.Children.Add(ds);

Step 4) Adjust the chart’s appearance
Once again, we will finish by setting the Theme property to quickly configure the chart appearance:

c1Chart.Theme = Theme.Office2007Black;

        }

You can test it by running the program and changing the ChartType property to XYPlot, LineSymbols, or Area to create charts of different types. The result should be similar to the images below:

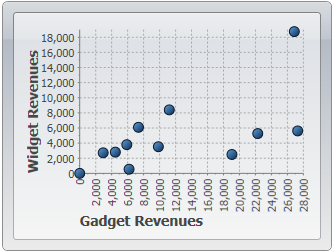

ChartType.XYPlot

ChartType.LineSymbols

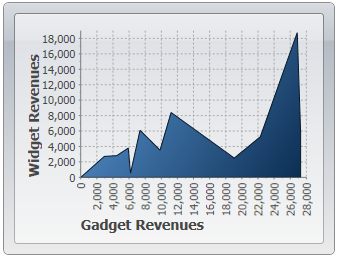

ChartType.Area

The most appropriate chart type in this case is the first, an XYPlot. The chart shows a positive correlation between Gadget and Widget revenues.

This concludes the basic charting topic. You already have the tools you need to create all types of common charts.
