Most grids support row and column header cells, used to display a header over columns and to indicate the status of the row that contains the selection.
The C1FlexGrid takes this concept a little further and supports multi-cell headers. You could for example have two rows of column headers, one showing the year and one showing the quarter. Here's some code that shows how you could set that up:
// add an extra column header row
var ch = fg.ColumnHeaders;
ch.Rows.Add(new Row());
// populate the header rows
for (int c = 0; c < ch.Columns.Count; c++)
{
ch[0, c] = 2009 + c / 4; // row 0: year
ch[1, c] = string.Format("Q {0}", c % 4 + 1); // row 1: quarter
}

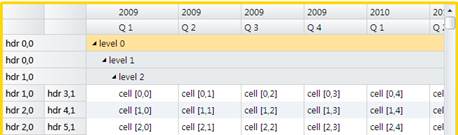

This code would produce a grid that looks like this:
Notice the two rows used to display the column headers. You could achieve a similar effect in a traditional grid using column headers with line breaks. The difference becomes apparent when we add cell merging to the top fixed row, so columns that refer to the same year are automatically merged. It only takes two lines of code:
// add an extra column header row
var ch = fg.ColumnHeaders;
ch.Rows.Add(new Row());
// populate the header rows
for (int c = 0; c < ch.Columns.Count; c++)
{
ch[0, c] = 2009 + c / 4; // row 0: year
ch[1, c] = string.Format("Q {0}", c % 4 + 1); // row 1: quarter
}
// merge the top fixed row
fg.AllowMerging = AllowMerging.All;
ch.Rows[0].AllowMerging = true;
The result is displayed in the image below:
Notice how cells that refer to the same year are merged in the top fixed row, making for a much clearer display. You can apply the same mechanism to merge row headers, as the image shows.
