Using the C1FlexGridGroupPanel control

To use the C1FlexGridGroupPanel control, add the control to the form above a C1FlexGrid control, and set its FlexGrid property so it references the C1FlexGrid used to show the data. For example:

XAML	Copy Code
<Grid> <Grid.RowDefinitions> <RowDefinition Height="Auto" /> <RowDefinition /> </Grid.RowDefinitions> <c1:C1FlexGridGroupPanel Background="WhiteSmoke" FlexGrid="{Binding ElementName=_flex}"/> <c1:C1FlexGrid x:Name="_flex" Grid.Row="1" /> </Grid>

XAML

Copy Code

<Grid>
  <Grid.RowDefinitions>
    <RowDefinition Height="Auto" />
    <RowDefinition />
  </Grid.RowDefinitions>

  <c1:C1FlexGridGroupPanel
    Background="WhiteSmoke"
    FlexGrid="{Binding ElementName=_flex}"/>
  <c1:C1FlexGrid x:Name="_flex" Grid.Row="1" />
</Grid>

The XAML is very simple. The C1FlexGridGroupPanel doesn't have to be styled, because it picks up the required attributes from the controlling C1FlexGrid. If you change the background, foreground, or font of the column headers on the grid, the C1FlexGridGroupPanel automatically uses those elements to render the group markers to look like column headers.

This XAML produces the following:

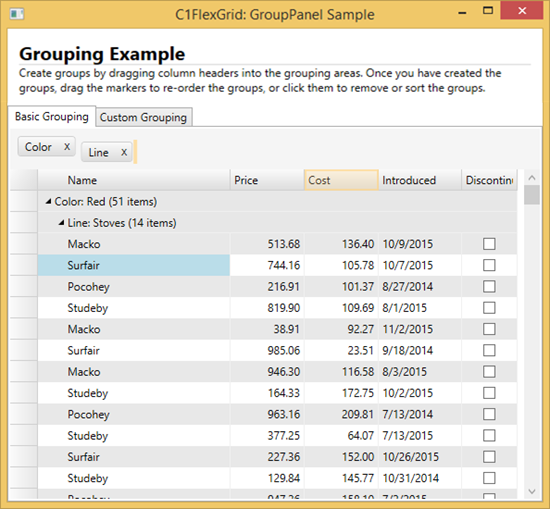

The image shows a C1FlexGrid with product data grouped by "Color" and "Line." The groups are created by dragging the grid columns onto the grouping area.

In the image, the "Cost" column is highlighted because it is being dragged onto the grouping area. The orange cursor to the right of the "Line" group marker indicates the position where the new group is to be inserted.

You can change the color of the drag markers (orange in the image) by setting the DragMarkerColor property.

Once a group is created, the corresponding column is hidden by default. This is an optional feature that you can turn off by setting the HideGroupedColumns property to false.

You can click the group markers to sort the data in ascending or descending order. Press the control key and click the group headers to remove the sort. This is the same behavior as that of the C1FlexGrid.

You can also drag the group markers within the grouping area to re-arrange the groups, or drag them back into the grid to remove the group and restore the column at any position. The group markers also have close buttons ("x") that you can click to remove the group.

The C1FlexGridGroupPanel manages groups using the ICollectionView interface of the collection used as the grid's data source. All changes made to the groups are visible to other controls bound to the same ICollectionView. Note that this means the grouping feature cannot be used in unbound scenarios.

When the C1FlexGridGroupPanel creates a new group, it fires a PropertyGroupCreated event that allows the application to customize the new groups. This is typically used to assign custom converters to the newly created groups. For example:

C#	Copy Code
/// <summary> /// Customize group descriptors created by the C1FlexGridGroupPanel. /// </summary> void _groupPanel_PropertyGroupCreated(object sender, PropertyGroupCreatedEventArgs e) { var pgd = e.PropertyGroupDescription; switch (pgd.PropertyName) { case "Introduced": pgd.Converter = new DateTimeGroupConverter(); break; case "Price": pgd.Converter = new AmountGroupConverter(1000); break; case "Cost": pgd.Converter = new AmountGroupConverter(300); break; } }

Copy Code

/// <summary>
/// Customize group descriptors created by the C1FlexGridGroupPanel.
/// </summary>
void _groupPanel_PropertyGroupCreated(object sender, PropertyGroupCreatedEventArgs e)
{
  var pgd = e.PropertyGroupDescription;
  switch (pgd.PropertyName)
  {
    case "Introduced":
      pgd.Converter = new DateTimeGroupConverter();
      break;
    case "Price":
      pgd.Converter = new AmountGroupConverter(1000);
      break;
    case "Cost":
      pgd.Converter = new AmountGroupConverter(300);
      break;
  }
}

This code handles the PropertyGroupCreated event and assigns custom converters to different columns in the data source. In this case, the DateTimeGroupConverter and AmountGroupConverter classes are simple converters used to group DateTime and double values into ranges.

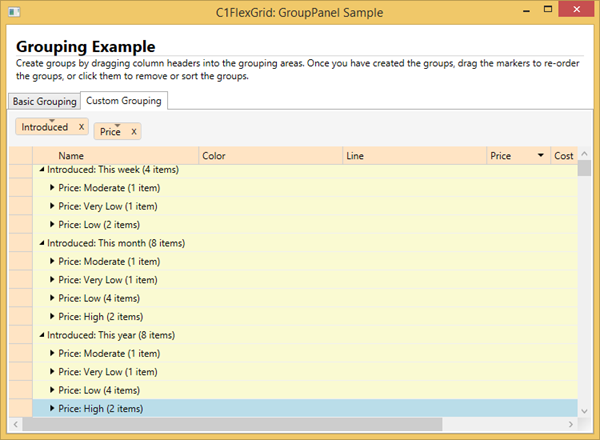

The image below shows the effect achieved with custom grouping:

Notice that items may appear in multiple groups. For example, the DateTimeGroupConverter groups dates into This week, This month, and This year. Items in the "This week" group are also included in the "This year" group.

This is a feature of the ICollectionView interface, not particular to the C1FlexGrid or C1FlexGridGroupPanel controls.
