Multi-cell Row and Column Headers

Most grids support row and column header cells, used to display a header over columns and to indicate the status of the row that contains the selection.

The C1FlexGrid takes this concept a little further and supports multi-cell headers. You could for example have two rows of column headers, one showing the year and one showing the quarter. Here's some code that shows how to set that up:

C#	Copy Code
// add an extra column header row var ch = fg.ColumnHeaders; ch.Rows.Add(new Row()); // populate the header rows for (int c = 0; c < ch.Columns.Count; c++) { ch[0, c] = 2009 + c / 4; // row 0: year ch[1, c] = string.Format("Q {0}", c % 4 + 1); // row 1: quarter }

Copy Code

// add an extra column header row
var ch = fg.ColumnHeaders;
ch.Rows.Add(new Row());

// populate the header rows
for (int c = 0; c < ch.Columns.Count; c++)
{
  ch[0, c] = 2009 + c / 4; // row 0: year
  ch[1, c] = string.Format("Q {0}", c % 4 + 1); // row 1: quarter
}

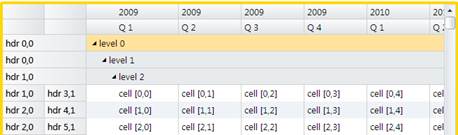

This code produces a grid that looks like this:

Notice the two rows that display the column headers. You can achieve a similar effect in a traditional grid using column headers with line breaks. The difference becomes apparent when we add cell merging to the top fixed row, so columns that refer to the same year are automatically merged. It only takes two lines of code:

C#	Copy Code
// add an extra column header row var ch = fg.ColumnHeaders; ch.Rows.Add(new Row()); // populate the header rows for (int c = 0; c < ch.Columns.Count; c++) { ch[0, c] = 2009 + c / 4; // row 0: year ch[1, c] = string.Format("Q {0}", c % 4 + 1); // row 1: quarter } // merge the top fixed row fg.AllowMerging = AllowMerging.All; ch.Rows[0].AllowMerging = true;

Copy Code

// add an extra column header row
var ch = fg.ColumnHeaders;
ch.Rows.Add(new Row());

// populate the header rows
for (int c = 0; c < ch.Columns.Count; c++)
{
  ch[0, c] = 2009 + c / 4; // row 0: year
  ch[1, c] = string.Format("Q {0}", c % 4 + 1); // row 1: quarter
}

// merge the top fixed row
fg.AllowMerging = AllowMerging.All;
ch.Rows[0].AllowMerging = true;

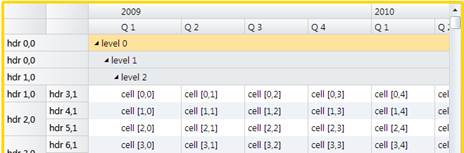

Here is the result:

Notice how cells that refer to the same year are merged in the top fixed row, making for a much clearer display. You can apply the same mechanism to merge row headers, as the image shows.
