Input for WinForms Tutorials > Masked Input |
In this tutorial, you will learn how to use edit mask to facilitate and restrict user input.

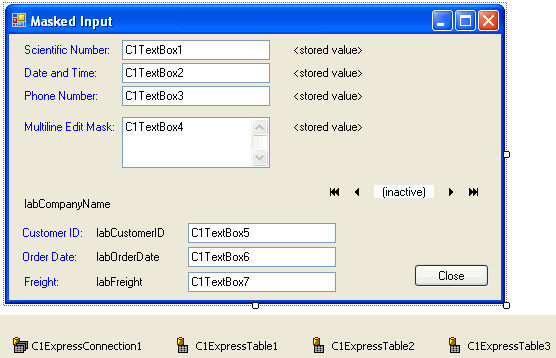

Note: The labels in blue are all of type System.Windows.Forms.Label. The Text property for each label is as it appears on the form. |
Control | Property | Value |
---|---|---|
Label1 | Name | labStoredExpNumber |
Text | <stored value> | |
Label2 | Name | labStoredDateTime |
Text | <stored value> | |
Label3 | Name | labStoredPhone |
Text | <stored value> | |
Label4 | Name | labStoredMultiline |
Text | <stored value> | |
C1Label1 | Name | labCompanyName |
Text | labCompanyName | |
C1Label2 | Name | labCustomerID |
Text | labCustomerID | |
C1Label3 | Name | labOrderDate |
Text | labOrderDate | |
C1Label4 | Name | labFreight |
Text | labFreight | |
Button1 | Name | btnClose |
Text | Close |
Control | Property | Value |
---|---|---|
C1ExpressTable1 | ConnectionComponent | C1ExpressConnection1 |
DbTableName | Customers | |
C1ExpressTable2 | ConnectionComponent | C1ExpressConnection1 |
DbTableName | Orders | |
C1ExpressTable3 | ConnectionComponent | C1ExpressConnection1 |
DbTableName |
<Composite…>
* See steps below. |

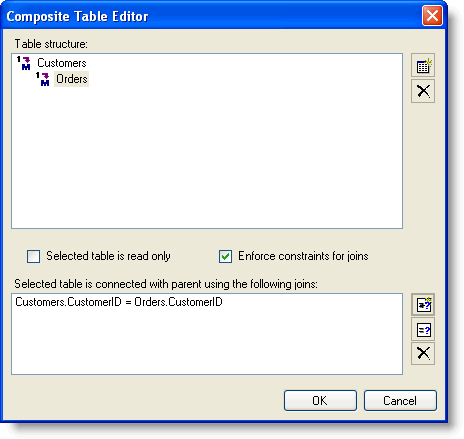

* Selecting the <Composite…> value for the C1ExpressTable3 opens the Composite Table Editor. In the editor, complete the following steps:
Note: If all of the fields in the CompositeTable are not appearing in the DataField drop-down, select C1ExpressTable3 and open the C1ExpressTable Tasks menu by clicking the smart tag (). In the C1ExpressTable Tasks menu, click Retrieve Fields. You may have to set the DataSource and DataField properties again. |
Control | Property | Value |
---|---|---|
C1DbNavigator1 | DataSource | C1ExpressConnection1 |
DataMember | CompositeTable | |
labCompanyName | DataSource | C1ExpressConnection1 |
DataField | CompositeTable.CompanyName | |
labCustomerID | DataSource | C1ExpressConnection1 |
DataField | CompositeTable.CustomerID | |
labOrderDate | DataSource | C1ExpressConnection1 |
DataField | CompositeTable.OrderDate | |
labFreight | DataSource | C1ExpressConnection1 |
DataField | CompositeTable.Freight | |
C1TextBox5 | DataSource | C1ExpressConnection1 |
DataField | CompositeTable.CustomerID | |
C1TextBox6 | DataSource | C1ExpressConnection1 |
DataField | CompositeTable.OrderDate | |
C1TextBox7 | DataSource | C1ExpressConnection1 |
DataField | CompositeTable.Freight |
To write code in Visual Basic
Visual Basic |
Copy Code
|
---|---|
Private Sub C1TextBox1_ValueChanged(ByVal sender As Object, ByVal e As System.EventArgs) Handles C1TextBox1.ValueChanged Try labStoredExpNumber.Text = CType(Me.C1TextBox1.Value, String) Catch labStoredExpNumber.Text = "" End Try End Sub Private Sub C1TextBox2_ValueChanged(ByVal sender As Object, ByVal e As System.EventArgs) Handles C1TextBox2.ValueChanged Try labStoredDateTime.Text = CType(Me.C1TextBox2.Value, String) Catch labStoredDateTime.Text = "" End Try End Sub Private Sub C1TextBox3_ValueChanged(ByVal sender As Object, ByVal e As System.EventArgs) Handles C1TextBox3.ValueChanged Try labStoredPhone.Text = CType(Me.C1TextBox3.Value, String) Catch labStoredPhone.Text = "" End Try End Sub Private Sub C1TextBox4_ValueChanged(ByVal sender As Object, ByVal e As System.EventArgs) Handles C1TextBox4.ValueChanged Try labStoredMultiline.Text = CType(Me.C1TextBox4.Value, String) Catch labStoredMultiline.Text = "" End Try End Sub |
To write code in C#
C# |
Copy Code
|
---|---|
private void c1TextBox1_ValueChanged(object sender, System.EventArgs e) { try { labStoredExpNumber.Text = (string)this.c1TextBox1.Value; } catch { labStoredExpNumber.Text = ""; } } private void c1TextBox2_ValueChanged(object sender, System.EventArgs e) { try { labStoredDateTime.Text = (string)this.c1TextBox1.Value; } catch { labStoredDateTime.Text = ""; } } private void c1TextBox3_ValueChanged(object sender, System.EventArgs e) { try { labStoredPhone.Text = (string)this.c1TextBox1.Value; } catch { labStoredPhone.Text = ""; } } private void c1TextBox4_ValueChanged(object sender, System.EventArgs e) { try { labStoredMultiline.Text = (string)this.c1TextBox1.Value; } catch { labStoredMultiline.Text = ""; } } |
Here '#' is an optional position for a digit or sign, '9' is an optional position for a digit, '0' is a required position for a digit, '!' is a special character specifying right justification for the following text, '^' cancels right justification mode, 'e' – a literal.
Note: C1TextBox and C1NumericEdit support a special edit mode, NumericInput mode facilitating input of any numeric data type. It is usually more convenient for numeric input than edit mask. Try NumericInput before using an edit mask for numeric data. |
There are two new special characters used in this mask: '>' causes the next characters to be converted to upper case, 'P' is a non-standard special character (custom placeholder) allowing entering either 'A' or 'P'.
Property | Value |
---|---|
Placeholder | P |
LookupChars | AP |
Thus the letter 'P' represents a position in edit mask where the user can type 'A' or 'P'.
To enable this storage format, set SaveBlanks to True and SaveLiterals to False (both properties are contained in MaskInfo). Also, change StoredEmptyChar from default '_' to '*' to store asterisk in blank positions. If you set SaveBlanks to False, SaveLiterals to True, blank positions will not be saved in the database, the above data will be saved as "11/8/2002 1:42PM".
Note: C1TextBox and C1DateEdit support a special edit mode, DateTimeInput mode facilitating input of date/time data. It is usually more convenient for date/time input than edit mask. Try DateTimeInput before using an edit mask for date/time data. |
For the C1TextBox4:
"First Name: "CCCCCCCCCCCCCCC\n"Last Name: "CCCCCCCCCCCCCCCCCCCC\n"
Date of Birth: "!90/90/9900^\n"Work Status: "CCCCCCCCCCCCCCC\n"Salary:
$"!######0.^99
Here ‘\n’ represents a line break.
This ensures that all positions left blank by the user are saved as spaces. If SaveBlanks is set to False, optional positions not filled by the user will be ignored. Additionally, you can set SaveLiterals to False, which will prevent saving literal texts, so only the information typed by the user is saved.
Control | Property | Value |
---|---|---|
labCustomerID | MaskInfo.EditMask | >LLLLL |
C1TextBox5 | EditMask | >LLLLL |
labOrderDate | FormatType | CustomFormat |
CustomFormat | M/d/yyyy | |
MaskInfo.EditMask | !90/90/0000 | |
C1TextBox6 | FormatType | CustomFormat |
CustomFormat | M/d/yyyy | |
EditMask | !90/90/0000 | |
labFreight | FormatType | CustomFormat |
CustomFormat | $ ####0.## | |
MaskInfo.EditMask | $ !99990.^99 | |
C1TextBox7 | FormatType | CustomFormat |
CustomFormat | $ ####0.## | |
EditMask | $ !99990.^99 |
