Choosing Items for InputDataNavigator

When an InputDataNavigator component is added to the C1InputPanel, it appears with ten items by default. In this topic, we will explain how to remove these default buttons from the InputDataNavigator component.

Choosing InputDataNavigator Buttons Using the Designer

To choose items for the InputDataNavigator, complete these steps:

Click C1InputPanel's smart tag () to open the C1Input Tasks menu and then select Edit Items.
The C1InputPanel Collection Editor opens.
Select an InputDataNavigator from the drop-down list and click Add.

An InputDataNavigator component appears in the Members pane.
Select inputDataNavigator1 from the Members pane to reveal its list of properties.

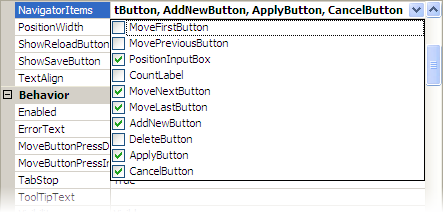

In the Properties grid, click the drop-down for the NavigatorItems property and deselect the check boxes for the buttons you wish to have removed. For this example, we will remove the MoveFirstButton, MoveLastButton, CountLabel, and DeleteButton items.
Click OK to close the C1InputPanel Collection Editor.

Choosing InputDataNavigator Items Programmatically

To choose InputDataNavigator items, add the items you need by setting the NavigatorButtons property. Once that property is set, the default settings will be overridden and only the buttons that you specified will appear.

In this section, you will exclude the MoveFirstButton, MoveLastButton, CountLabel, and DeleteButton from the InputDataNavigator by completing the following steps:

Click C1InputPanel's smart tag () to open the C1Input Tasks menu and then select Edit Items.
The C1InputPanel Collection Editor opens.
Select an InputDataNavigator from the drop-down list and click Add.

An InputDataNavigator component appears in the Members pane.
Click OK to close the C1InputPanel Collection Editor.
Double-click Form1 to add a Form_Load event to Code view.
Import the following namespace into your project:
Add the following code to the Form_Load event to add specific buttons to the InputDataNavigator component:
Build the project.

This Topic Illustrates the Following:

The following graphic compares the default InputDataNavigator with one that has been modified using the steps in this topic:
