Tutorial 15 - OwnerDraw List Cells

In this tutorial you will learn to format your list with the OwnerDrawCell event.

Follow steps 1 through 6 of Tutorial 8 - Displaying Translated Data, setting the SQL statement to SELECT * FROM CUSTOMER, to create a project with a C1List bound to a Data Set.

Define the following variables at the Form level:

To write code in Visual Basic

Visual Basic	Copy Code
Dim bh1, bh2 As Brush Dim ft As Font

To write code in C#

C#	Copy Code
bh1, bh2 Brush; ft Font;

In the Form_Load event, add the following code:

To write code in Visual Basic

Visual Basic	Copy Code
' Fill the data. Me.CustomerTableAdapter.Fill(Me.DsCustomer.Customer) ' Owner draw every column. Dim i As Integer For i = 0 To Me.C1List1.Splits(0).DisplayColumns.Count - 1 Me.C1List1.Splits(0).DisplayColumns(i).OwnerDraw = True Next i ' Set the row height. Me.C1List1.ItemHeight = 25 ' Set the brushes and font. bh1 = New SolidBrush(Color.Pink) bh2 = New SolidBrush(Color.Yellow) Dim ff As FontFamily ff = New FontFamily("Arial") ft = New Font(ff, 14, FontStyle.Regular, GraphicsUnit.Pixel)

To write code in C#

C#	Copy Code
// Fill the data. this.CustomerTableAdapter.Fill(this.DsCustomer.Customer); // Owner draw every column. int i; for ( i = 0; i <= this.c1List1.Splits[1].DisplayColumns.Count - 1; i++) { this.c1List1.Splits[0].DisplayColumns[i] OwnerDraw = true; } // Set the row height. this.c1List1.ItemHeight = 25; // Set the brushes and font. bh1 = new SolidBrush(Color.Pink); bh2 = new SolidBrush(Color.Yellow); FontFamily ff; ff = new FontFamily("Arial"); ft = new Font(ff, 14, FontStyle.Regular, GraphicsUnit.Pixel);

Add the following code to the OwnerDrawCell event:

To write code in Visual Basic

Visual Basic	Copy Code
Private Sub C1List1_OwnerDrawCell(ByVal sender As Object, ByVal e As C1.Win.C1List.OwnerDrawCellEventArgs) Handles C1List1.OwnerDrawCell ' Draw alternative background. If (e.Row Mod 2 = 0) Then e.Graphics.FillRectangle(Me.bh1, e.CellRect) Else e.Graphics.FillRectangle(Me.bh2, e.CellRect) End If e.Graphics.DrawString(e.Text, Me.ft, New SolidBrush(Color.Black), e.CellRect.Left, e.CellRect.Top) e.Handled = True End Sub

To write code in C#

C#	Copy Code
private void C1List1_OwnerDrawCell(object sender, C1.Win.C1List.OwnerDrawCellEventArgs e) { // Draw alternative background. if ((e.Row % 2 == 0) ) { e.Graphics.FillRectangle(this.bh1, e.CellRect); } else { e.Graphics.FillRectangle(this.bh2, e.CellRect); } e.Graphics.DrawString(e.Text, this.ft, new SolidBrush(Color.Black), e.CellRect.Left, e.CellRect.Top); e.Handled = true; }

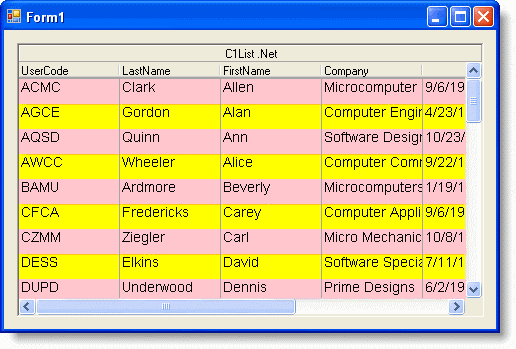

Run the program and observe the following:

C1List1 displays the data using the font and color changes specified in step 4.

This concludes the tutorial.
