XAML Quick Reference

This topic is dedicated to providing a quick overview of the XAML used to create a C1RichTextBox and C1RichTextBoxToolbar control.

To get started developing, add a c1 namespace declaration in the root element tag:

xmlns:c1="http://schemas.componentone.com/winfx/2006/xaml"

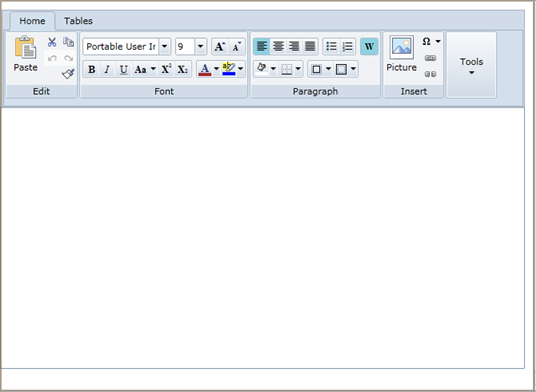

Here is a sample C1RichTextBox and C1RichTextBoxToolbar:

Below is the XAML for the sample:

<UserControl xmlns:c1="http://schemas.componentone.com/winfx/2006/xaml"

             x:Class="SilverlightApplication2.MainPage"

    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"

    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"

    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"

    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"

    mc:Ignorable="d"

    d:DesignHeight="489" d:DesignWidth="668">

    <Grid x:Name="LayoutRoot" Background="White">

        <c1:C1RichTextBox Name="C1RTB" Margin="0,133,12,28" />

        <c1:C1RichTextBoxToolbar Name="richToolbar" RichTextBox="{Binding ElementName=C1RTB}" Margin="2,12,12,0" Height="123" VerticalAlignment="Top" />

</Grid>

</UserControl>
