XAML Quick Reference

This topic is dedicated to providing a quick overview of the XAML used to create a C1RichTextBox and C1RichTextBoxToolbar control.

To get started developing, add a c1 namespace declaration in the root element tag:

XAML	Copy Code
xmlns:c1="http://schemas.componentone.com/winfx/2006/xaml"

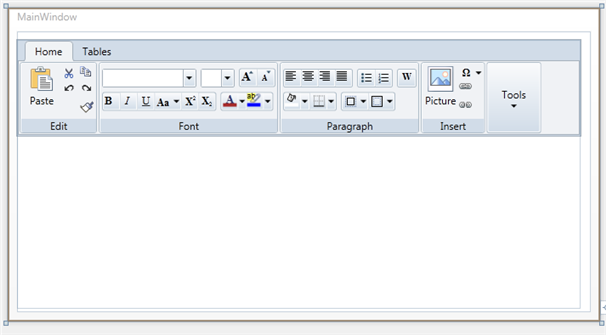

Here is a sample C1RichTextBox and C1RichTextBoxToolbar:

Below is the XAML for the sample:

WPF
Silverlight

<Window x:Class="RichTextBoxWPFXAML.MainWindow"

        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"

        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"

        Title="MainWindow"Height="370"Width="697"xmlns:c1="http://schemas.componentone.com/winfx/2006/xaml">

    <GridHeight="310">

        <StackPanelHorizontalAlignment="Left"Name="SP"VerticalAlignment="Top"Height="327"Width="663">

            <c1:C1RichTextBoxToolbarx:Name="richToolbar"RichTextBox="{BindingElementName=C1RTB}" />

            <c1:C1RichTextBoxx:Name="C1RTB"Grid.Row="1"BorderThickness="0"Height="165" />

        </StackPanel>

    </Grid>

</Window>

<UserControl xmlns:c1="http://schemas.componentone.com/winfx/2006/xaml"

    x:Class="SilverlightApplication2.MainPage"
    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
    xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
    xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
    mc:Ignorable="d"
    d:DesignHeight="489" d:DesignWidth="668">

    <Grid x:Name="LayoutRoot" Background="White">
        <c1:C1RichTextBox Name="C1RTB" Margin="0,133,12,28" />

        <c1:C1RichTextBoxToolbar Name="richToolbar" RichTextBox="{Binding ElementName=C1RTB}" Margin="2,12,12,0" Height="123" VerticalAlignment="Top" />

    </Grid>

</UserControl>
