Binding Schedule to a Calendar Control

The C1Calendar control can be used to provide navigation and additional information for a C1Scheduler control. This can be done by binding control properties.

C1MonthCalendar/C1MultiMonthCalendar Property	C1Scheduler Property	Comments
CalendarHelper	CalendarHelper	Binding these properties keeps the culture and calendar-dependant properties used by both controls in sync. This is important for default navigation.
VisibleDates	SelectedDates	Binding these properties allows the C1Scheduler control to be navigated when a user selects days in a calendar. For example, if you select four days in the C1Calendar, those four days will be shown in the C1Scheduler control.
BoldedDates	BoldedDates	Binding these properties makes days with appointments bold in a calendar control.

For example, the following XAML binds C1Scheduler to a C1Calendar control.

XAML	Copy Code
<Window xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:System="clr-namespace:System;assembly=mscorlib" x:Class="UntitledProject1.Window1" x:Name="Window" Title="Window1" Width="924" Height="480" xmlns:c1sched="http://schemas.componentone.com/wpf/Schedule"> <Grid> <Grid.ColumnDefinitions> <ColumnDefinition/> <ColumnDefinition/> </Grid.ColumnDefinitions> <c1:C1Scheduler Name="scheduler1" Grid.Column="1" MonthStyle="{DynamicResource {ComponentResourceKey TypeInTargetAssembly=c1sched:C1Scheduler, ResourceId=MonthStyle2007}}" WeekStyle="{DynamicResource {ComponentResourceKey TypeInTargetAssembly=c1sched:C1Scheduler, ResourceId=WeekStyle2007}}" WorkingWeekStyle="{DynamicResource {ComponentResourceKey TypeInTargetAssembly=c1sched:C1Scheduler, ResourceId=WorkingWeekStyle2007}}" OneDayStyle="{DynamicResource {ComponentResourceKey TypeInTargetAssembly=c1sched:C1Scheduler, ResourceId=OneDayStyle2007}}"> <c1:C1Scheduler.CalendarHelper> <c1:CalendarHelper WeekStart="Sunday" EndDayTime="18:20:00" StartDayTime="09:20:00" WorkDays="Tuesday,Wednesday,Friday,Saturday"> <c1:CalendarHelper.Holidays> <System:DateTime>2007-11-02</System:DateTime> <c1:CalendarHelper.Holidays> <c1:CalendarHelper> <c1:C1Scheduler.CalendarHelper> <c1:C1Scheduler> <c1:C1Calendar Name="calendar1" Margin="10,10,10,0" Grid.Column="0" VerticalAlignment="Stretch" MaxSelectionCount="42" SelectedDates="{Binding ElementName=scheduler1, Path=VisibleDates, Mode=OneWay}" BoldedDates="{Binding ElementName=scheduler1, Path=BoldedDates, Mode=OneWay}" CalendarHelper="{Binding ElementName=scheduler1, Path=CalendarHelper, Mode=OneWay}" GenerateAdjacentMonthDays="true" > <c1:C1MultiMonthCalendar> </Grid> </Window>

XAML

Copy Code

<Window
     xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
     xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
     xmlns:System="clr-namespace:System;assembly=mscorlib"
     x:Class="UntitledProject1.Window1"
     x:Name="Window"
     Title="Window1"
     Width="924" Height="480" xmlns:c1sched="http://schemas.componentone.com/wpf/Schedule">

<Grid>
  <Grid.ColumnDefinitions>
    <ColumnDefinition/>
    <ColumnDefinition/>
  </Grid.ColumnDefinitions>
  <c1:C1Scheduler Name="scheduler1" Grid.Column="1"
MonthStyle="{DynamicResource {ComponentResourceKey
TypeInTargetAssembly=c1sched:C1Scheduler, ResourceId=MonthStyle2007}}"
WeekStyle="{DynamicResource {ComponentResourceKey
     TypeInTargetAssembly=c1sched:C1Scheduler, ResourceId=WeekStyle2007}}"
WorkingWeekStyle="{DynamicResource {ComponentResourceKey
TypeInTargetAssembly=c1sched:C1Scheduler, ResourceId=WorkingWeekStyle2007}}"
OneDayStyle="{DynamicResource {ComponentResourceKey
     TypeInTargetAssembly=c1sched:C1Scheduler, ResourceId=OneDayStyle2007}}">
     <c1:C1Scheduler.CalendarHelper>
           <c1:CalendarHelper WeekStart="Sunday" EndDayTime="18:20:00" StartDayTime="09:20:00"
                WorkDays="Tuesday,Wednesday,Friday,Saturday">
                <c1:CalendarHelper.Holidays>
                     <System:DateTime>2007-11-02</System:DateTime>
                <c1:CalendarHelper.Holidays>
           <c1:CalendarHelper>
     <c1:C1Scheduler.CalendarHelper>
  <c1:C1Scheduler>

  <c1:C1Calendar Name="calendar1" Margin="10,10,10,0"
Grid.Column="0" VerticalAlignment="Stretch" MaxSelectionCount="42"
     SelectedDates="{Binding ElementName=scheduler1, Path=VisibleDates, Mode=OneWay}"
     BoldedDates="{Binding ElementName=scheduler1, Path=BoldedDates, Mode=OneWay}"
     CalendarHelper="{Binding ElementName=scheduler1, Path=CalendarHelper, Mode=OneWay}"
GenerateAdjacentMonthDays="true" >
     <c1:C1MultiMonthCalendar>
</Grid>
</Window>

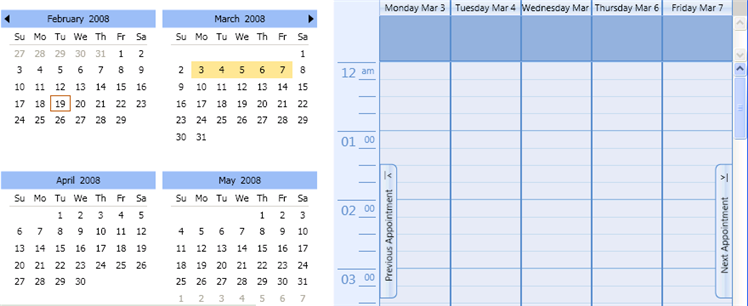

If several dates are selected in the C1Calendar, the C1Scheduler control changes to show the selected dates.
