Chart3DAxis Collection Editor

The Chart3DAxis Collection Editor is used for modifying the properties for the X, Y, and Z axes in C1Chart3D.

1. Right-click on the C1Chart3D control and select Properties from its context menu.

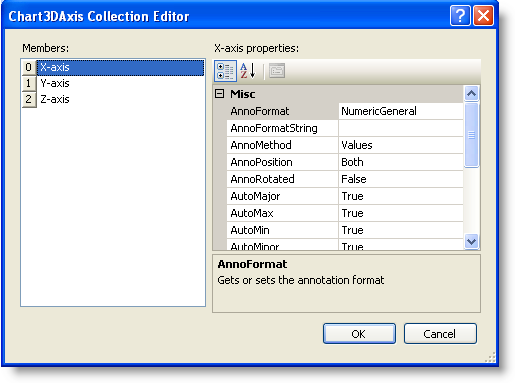

2. In the Properties window, expand the ChartArea node, then click on the ellipsis button next to the AxesCollection object. The Chart3DAxis Collection Editor opens.

Within the Chart3DAxis Collection Editor a Chart3DAxis Label Collection Editor exists. For more information on the Chart3DAxis Label Collection Editor see, Chart3DAxisLabel Collection Editor.

The following properties are available for the user in the Chart3DAxis Collection Editor at design time or they can be used in the Chart3DAxis class at run-time:

Members	Description
AnnoFormat	Gets or sets the annotation format.
AnnoFormatString	Gets or set the annotation format string used with manual formats.
AnnoMethod	Gets or sets annotation method of the axis.
AnnoPosition	Gets or sets the position of the axis annotation and text.
AnnoRotated	Gets or sets whether annotation rotated.
AutoMajor	Gets or sets whether major tick mark values are calculated automatically.
AutoMax	Gets or sets whether the axis minimum value is calculated automatically.
AutoMin	Gets or sets whether the axis minimum value is calculated automatically.
AutoMinor	Gets or sets whether minor tick mark values are calculated automatically.
MajorGrid	Gets the major grid lines object.
Chart3DLineStyle	Grid line style.
Max	Gets or sets the maximum value of the axis.
Min	Gets or sets the minimum value of the axis.
Title	Gets or sets the title of the axis.
UnitMajor	Gets or sets the units between major tickmarks.
UnitMinor	Gets or sets the units between minor tickmarks.
ValueLabels	Gets the axis value labels.
Visible	Gets or sets the axis visibility.
