Nest Splitters

The wijsplitter widget allows you to change the orientation of the splitter. Simply set the orientation option to take advantage of this feature. See the Splitter > Nested sample of the MVC Control Explorer live demo at http://demo.componentone.com/ASPNET/MVCExplorer/splitter/Nested.

Create an ASP.NET MVC 5 Wijmo application.
In the Solution Explorer, expand the Views | Shared folder and double-click _Layout.cshtml to open the file.

Add the following markup within the <body> tags of the page.

<div class="main demo">
    <!-- Begin demo markup -->
    <div id="vsplitter">
        <div>
            panel1
        </div>
        <div>
            <div id="hsplitter">
                <div>
                    panel2</div>
                <div>
                    panel3</div>
            </div>
        </div>
    </div>
    </div>
<!-- End demo markup -->

After the closing </div> tags you added in the previous step, enter the following jQuery script to initialize the wijsplitter widget and set the orientation options. The <style> markup will set the height and width of the vertical splitter.

<style type="text/css">
        #vsplitter
        {
            width: 300px;
            height: 200px;
        }
    </style>
    <script id="scriptInit" type="text/javascript">
        $(document).ready(function () {
            $("#vsplitter").wijsplitter({ orientation: "vertical", fullSplit: false, expanded: function (e) { $("#hsplitter").wijsplitter("refresh"); }, collapsed: function (e) { $("#hsplitter").wijsplitter("refresh"); }, sized: function (e) { $("#hsplitter").wijsplitter("refresh"); } });
            $("#hsplitter").wijsplitter({ orientation: "horizontal", fullSplit: true });
        });
    </script>

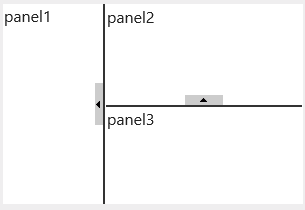

Press F5 to run the application and view the vertical and horizontal splitters.
