wijcompositechart Step 3 of 3: Running the Project

In this step you will run the application and observe the new data and char elements that include titles for the X and Y axis, Chart header, and chart labels.

Press F5 to run the application.

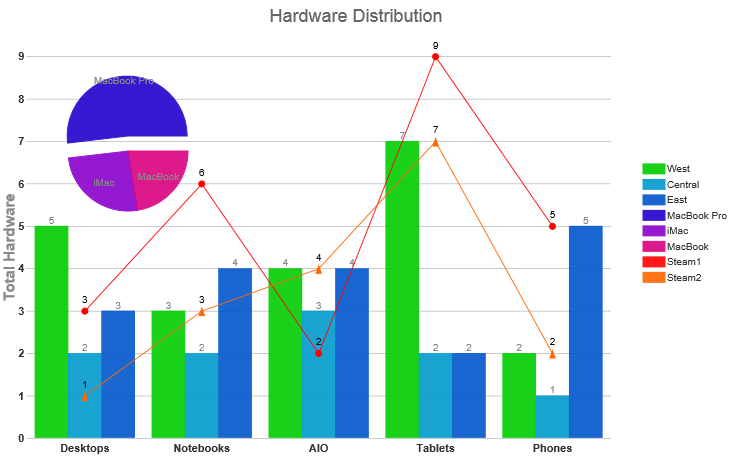

Observe the following:

Hover over any of the chart series and notice a tooltip appears stating the value of the label property, and the Y value of that series.
The tooltip appears when the following code is used:
```
hint: {
                content: function () {
                    return this.label + '<br/> ' + this.y + '';
                }
            },
```
Notice the title for the chart header appears when we used the following code:
```
header: {
                text: "Hardware Distribution"
            },
```

Three different types of charts: Pie, Column, and Line appear with several data series for each one.The following code is used to achieve the result:

seriesList: [{
                type: "column",
                label: "West",
                legendEntry: true,
                data: { x: ['Desktops', 'Notebooks', 'AIO', 'Tablets', 'Phones'], y: [5, 3, 4, 7, 2] }
            }, {
                type: "column",
                label: "Central",
                legendEntry: true,
                data: { x: ['Desktops', 'Notebooks', 'AIO', 'Tablets', 'Phones'], y: [2, 2, 3, 2, 1] }
            }, {
                type: "column",
                label: "East",
                legendEntry: true,
                data: { x: ['Desktops', 'Notebooks', 'AIO', 'Tablets', 'Phones'], y: [3, 4, 4, 2, 5] }
            }, {
                type: "pie",
                label: "asdfdsfdsf",
                legendEntry: true,
                center: { x: 150, y: 150 },
                radius: 60,
                data: [{
                    label: "MacBook Pro",
                    legendEntry: true,
                    data: 46.78,
                    offset: 15
                }, {
                    label: "iMac",
                    legendEntry: true,
                    data: 23.18,
                    offset: 0
                }, {
                    label: "MacBook",
                    legendEntry: true,
                    data: 20.25,
                    offset: 0
                }]
            }, {
                type: "line",
                label: "Steam1",
                legendEntry: true,
                data: {
                    x: ['Desktops', 'Notebooks', 'AIO', 'Tablets', 'Phones'],
                    y: [3, 6, 2, 9, 5]
                },
                markers: {
                    visible: true,
                    type: "circle"
                }
            }, {
                type: "line",
                label: "Steam2",
                legendEntry: true,
                data: {
                    x: ['Desktops', 'Notebooks', 'AIO', 'Tablets', 'Phones'],
                    y: [1, 3, 4, 7, 2]
                },
                markers: {
                    visible: true,
                    type: "tri"
                }
            }
                     ]

The Y-Axis title, “Total Hardware” is applied to the Composite chart and the X-Axis title as an empty string. The following code is used to achieve the result:

axis: {
                y: {
                    text: "Total Hardware"
                },
                x: {
                    text: ""
                }
            },
