Quick XAML Reference

This topic is dedicated to providing a quick overview of the XAML used to complete various C1MediaPlayer tasks. For more information, see the C1MediaPlayer Task-Based Help section.

The XAML markup in this section illustrates how to create a C1MediaPlayer control with three media items. Each media item contains three chapters. The control is themed with the RainierOrange theme, which is included as part of the Studio package.

XAML	Copy Code
<!—Theme-> <c1:C1ThemeRainierOrange> <!—MediaPlayer Markup-> <c1:C1MediaPlayer HorizontalAlignment="Left" Margin="10,10,0,0" Name="c1MediaPlayer1" VerticalAlignment="Top" Height="329" Width="400"> <!—First MediaItem-> <c1:C1MediaItem MediaSource="http://ia600300.us.archive.org/22/items/DasKabinettdesDoktorCaligariTheCabinetofDrCaligari/The_Cabinet_of_Dr._Caligari_512kb.mp4" Title="The Cabinet of Dr. Caligari" NaturalDuration="02:00:00"> <!—First MediaItem's Chapters-> <c1:C1MediaChapter Title="Title Sequence" Position="00:01:00" /> <c1:C1MediaChapter Title="Intermission" Position="00:35:00" /> <c1:C1MediaChapter Title="End Credits" Position="01:55:00" /> </c1:C1MediaItem > <!—Second MediaItem-> <c1:C1MediaItem MediaSource="Dracula.mp4" Title="Dracula" NaturalDuration="02:35:00"> <!—Second MediaItem's Chapters-> <c1:C1MediaChapter Title="Title Sequence" Position="00:00:20" /> <c1:C1MediaChapter Title="Intermission" Position="00:32:00" /> <c1:C1MediaChapter Title="End Credits" Position="02:32:00" /> </c1:C1MediaItem> <!—Third MediaItem-> <c1:C1MediaItem MediaSource="Frankenstein.mp4" Title="Frankenstein" NaturalDuration="01:38:00"> <!—Third MediaItem's Chapters-> <c1:C1MediaChapter Title="Title Sequence" Position="00:00:30" /> <c1:C1MediaChapter Title="Intermission" Position="00:42:00" /> <c1:C1MediaChapter Title="End Credits" Position="01:35:00" /> </c1:C1MediaItem> </c1:C1MediaPlayer> </c1:C1ThemeRainierOrange>

XAML

Copy Code

<!—Theme->
<c1:C1ThemeRainierOrange>
<!—MediaPlayer Markup->
     <c1:C1MediaPlayer HorizontalAlignment="Left" Margin="10,10,0,0" Name="c1MediaPlayer1" VerticalAlignment="Top" Height="329" Width="400">
<!—First MediaItem->
          <c1:C1MediaItem   MediaSource="http://ia600300.us.archive.org/22/items/DasKabinettdesDoktorCaligariTheCabinetofDrCaligari/The_Cabinet_of_Dr._Caligari_512kb.mp4" Title="The Cabinet of Dr. Caligari" NaturalDuration="02:00:00">
<!—First MediaItem's  Chapters->
               <c1:C1MediaChapter Title="Title Sequence" Position="00:01:00" />
               <c1:C1MediaChapter Title="Intermission" Position="00:35:00" />
               <c1:C1MediaChapter Title="End Credits" Position="01:55:00" />
     </c1:C1MediaItem >
<!—Second MediaItem->
     <c1:C1MediaItem MediaSource="Dracula.mp4" Title="Dracula" NaturalDuration="02:35:00">
<!—Second MediaItem's  Chapters->
          <c1:C1MediaChapter Title="Title Sequence" Position="00:00:20" />
          <c1:C1MediaChapter Title="Intermission" Position="00:32:00" />
          <c1:C1MediaChapter Title="End Credits" Position="02:32:00" />
     </c1:C1MediaItem>
<!—Third MediaItem->
     <c1:C1MediaItem MediaSource="Frankenstein.mp4" Title="Frankenstein" NaturalDuration="01:38:00">
<!—Third MediaItem's  Chapters->
          <c1:C1MediaChapter Title="Title Sequence" Position="00:00:30" />
          <c1:C1MediaChapter Title="Intermission" Position="00:42:00" />
          <c1:C1MediaChapter Title="End Credits" Position="01:35:00" />
     </c1:C1MediaItem>
</c1:C1MediaPlayer>
</c1:C1ThemeRainierOrange>

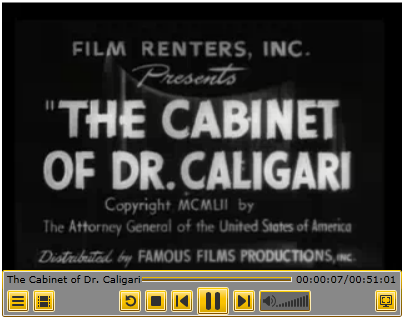

At startup, the C1MediaPlayer will look like this:

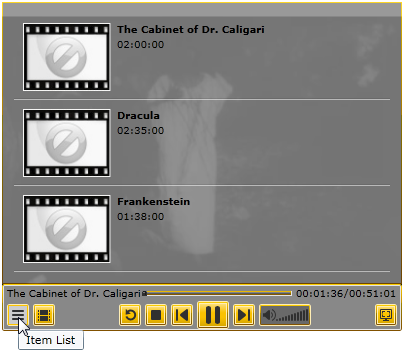

If you click the Item List button, you will see the three items that were added to the list:

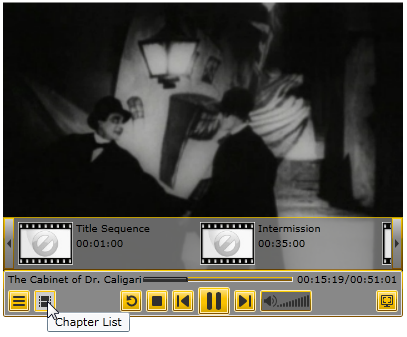

And if you click the Chapter List button, you will see the chapter in the item you are currently on:
