Step 3 of 5: Creating the Custom Appointment Dialog

In this step, you will create the Custom Appointment Dialog and set the code to control the dialog using XAML markup and code.

Create a new Silverlight page by right-clicking the application name and selecting Add | New Item from the list.
Select New Silverlight Page from the list of installed templates and name it EditAppointmentDialog. Click OK.

Replace the <navigation:Page> </navigation:Page> tags and the namespaces with the following <UserControl> statement:

XAML	Copy Code
<UserControl x:Class="SchedulerCustomData.EditAppointmentDialog" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:d="http://schemas.microsoft.com/expression/blend/2008" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006" xmlns:c1sched="clr-namespace:C1.Silverlight.Schedule;assembly=C1.Silverlight.Schedule" xmlns:c1="clr-namespace:C1.Silverlight;assembly=C1.Silverlight" xmlns:local="clr-namespace:SchedulerCustomData" mc:Ignorable="d" d:DesignHeight="300" d:DesignWidth="400">

XAML

Copy Code

<UserControl x:Class="SchedulerCustomData.EditAppointmentDialog"    xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"           xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:c1sched="clr-namespace:C1.Silverlight.Schedule;assembly=C1.Silverlight.Schedule"
xmlns:c1="clr-namespace:C1.Silverlight;assembly=C1.Silverlight"
xmlns:local="clr-namespace:SchedulerCustomData"
mc:Ignorable="d"
d:DesignHeight="300" d:DesignWidth="400">

Insert the following XAML after the namespace declarations to create the custom Appointment dialog box:

XAML	Copy Code
<Grid x:Name="LayoutRoot" Background="White" BindingValidationError="LayoutRoot_BindingValidationError"> <Grid.Resources> <res:C1_Schedule_EditAppointment x:Key="C1_Schedule_EditAppointment"/> </Grid.Resources> <Grid.RowDefinitions> <RowDefinition Height="Auto" /> <RowDefinition Height="Auto" /> <RowDefinition Height="Auto" /> <RowDefinition Height="Auto" /> <RowDefinition Height="Auto" /> <RowDefinition Height="Auto" /> <RowDefinition Height="Auto" /> <RowDefinition /> <RowDefinition Height="Auto" /> </Grid.RowDefinitions> <Grid> <Grid.ColumnDefinitions> <ColumnDefinition Width="75" /> <ColumnDefinition Width="" /> </Grid.ColumnDefinitions> <TextBlock VerticalAlignment="Center" Margin="10,2,0,2" HorizontalAlignment="Left" Text="{Binding subject, Source={StaticResource C1_Schedule_EditAppointment}}" /> <TextBox x:Name="subject" Grid.Column="1" TabIndex="0" Padding="2" Text="{Binding Subject, Mode=TwoWay}" TextChanged="subject_TextChanged" MaxLength="255" VerticalAlignment="Center" Margin="10,2,10,2" /> </Grid> <Grid Grid.Row="1"> <Grid.ColumnDefinitions> <ColumnDefinition Width="75" /> <ColumnDefinition Width="" /> </Grid.ColumnDefinitions> <TextBlock VerticalAlignment="Center" Margin="10,2,0,2" HorizontalAlignment="Left" Text="{Binding location, Source={StaticResource C1_Schedule_EditAppointment}}" /> <TextBox TabIndex="1" x:Name="location" Grid.Column="1" Text="{Binding Location, Mode=TwoWay}" MaxLength="255" VerticalAlignment="Center" Margin="10,2,10,2" /> </Grid> <Grid Grid.Row="2"> <Grid.ColumnDefinitions> <ColumnDefinition Width="75" /> <ColumnDefinition Width="" /> </Grid.ColumnDefinitions> <TextBlock VerticalAlignment="Center" Margin="10,2,0,2" HorizontalAlignment="Left" Text="{Binding startTime, Source={StaticResource C1_Schedule_EditAppointment}}"/> <c1datetime:C1DateTimePicker x:Name="startCalendar" Grid.Column="1" VerticalAlignment="Center" Margin="10,2,10,2" Padding="1" IsTabStop="False" TimeFormat="ShortTime" DateFormat="Long" FirstDayOfWeek="{Binding Path=ParentCollection.ParentStorage.ScheduleStorage.Scheduler.CalendarHelper.WeekStart}" DateTime="{Binding Start, Mode=TwoWay}"/> </Grid> <Grid Grid.Row="3"> <Grid.ColumnDefinitions> <ColumnDefinition Width="75" /> <ColumnDefinition Width="" /> </Grid.ColumnDefinitions> <TextBlock VerticalAlignment="Center" Margin="10,2,0,2" HorizontalAlignment="Left" Text="{Binding endTime, Source={StaticResource C1_Schedule_EditAppointment}}"/> <c1datetime:C1DateTimePicker x:Name="endCalendar" VerticalAlignment="Center" Margin="10,2,10,2" Padding="1" DateTimeChanged="endCalendar_DateTimeChanged" FirstDayOfWeek="{Binding Path=ParentCollection.ParentStorage.ScheduleStorage.Scheduler.CalendarHelper.WeekStart}" TimeFormat="ShortTime" DateFormat="Long" Grid.Column="1" c1:C1NagScreen.Nag="True" /> </Grid> <Grid Grid.Row="4" Background="Yellow"> <Grid.ColumnDefinitions> <ColumnDefinition Width="100" /> <ColumnDefinition Width="" /> </Grid.ColumnDefinitions> <TextBlock VerticalAlignment="Center" Text="Custom Data:" HorizontalAlignment="Left" Margin="10,2,0,2"/> <TextBox Name="customDataTextBox" Grid.Column="1" Text="{Binding Path=CustomData, Mode=TwoWay}" Margin="10,2,10,2"/> </Grid> <Grid Grid.Row="5" Background="Orange"> <Grid.ColumnDefinitions> <ColumnDefinition Width="100" /> <ColumnDefinition Width="" /> </Grid.ColumnDefinitions> <TextBlock VerticalAlignment="Center" Text="BO Property 1:" HorizontalAlignment="Left" Margin="10,2,0,2"/> <TextBox Name="BOTextBox1" Grid.Column="1" Text="{Binding Path=Tag.Tag.BOProperty1, Mode=TwoWay}" Margin="10,2,10,2" /> </Grid> <Grid Grid.Row="6" Background="Orange"> <Grid.ColumnDefinitions> <ColumnDefinition Width="100" /> <ColumnDefinition Width="" /> </Grid.ColumnDefinitions> <TextBlock VerticalAlignment="Center" Text="BO Property 2:" HorizontalAlignment="Left" Margin="10,2,0,2"/> <TextBox Name="BOTextBox2" Grid.Column="1" Text="{Binding Path=Tag.Tag.BOProperty2, Mode=TwoWay}" Margin="10,2,10,2"/> </Grid> <Grid Grid.Row="7"> <Grid.ColumnDefinitions> <ColumnDefinition Width="75" /> <ColumnDefinition Width="" /> </Grid.ColumnDefinitions> <TextBlock VerticalAlignment="Top" Text="Notes:" HorizontalAlignment="Left" Margin="10,2,0,2"/> <TextBox x:Name="body" Text="{Binding Body, Mode=TwoWay}" AcceptsReturn="true" Grid.Column="1" Margin="10,2,10,2" /> </Grid> <StackPanel Orientation="Horizontal" Grid.Row="8" HorizontalAlignment="Right"> <Button Name="deleteButton" IsTabStop="False" Margin="0,0,5,0" c1:CommandExtensions.CommandTarget="{Binding ParentCollection.ParentStorage.ScheduleStorage.Scheduler}" c1:CommandExtensions.CommandParameter="{Binding Tag}" c1:CommandExtensions.Command="c1sched:C1Scheduler.DeleteAppointmentCommand" ToolTipService.ToolTip="{Binding deleteButton_ToolTip, Source={StaticResource C1_Schedule_EditAppointment}}"> <StackPanel Orientation="Horizontal" VerticalAlignment="Center"> <Image Height="16" Width="16" Source="/SchedulerCustomData;component/Images/Delete.png"></Image> <TextBlock Text="Cancel Appointment" /> </StackPanel> </Button> <Button x:Name="PART_DialogSaveButton" IsTabStop="False" Click="PART_DialogSaveButton_Click" ToolTipService.ToolTip="{Binding PART_DialogSaveButton_Tooltip, Source={StaticResource C1_Schedule_EditAppointment}}"> <StackPanel Orientation="Horizontal" VerticalAlignment="Center"> <Image Height="16" Width="16" Source="/SchedulerCustomData;component/Images/save.png"></Image> <TextBlock Margin="3,0,0,0" Text="{Binding PART_DialogSaveButton_AccessText, Source={StaticResource C1_Schedule_EditAppointment}}" VerticalAlignment="Center"/> </StackPanel> </Button> </StackPanel> </Grid> </UserControl>

XAML

Copy Code

<Grid x:Name="LayoutRoot" Background="White" BindingValidationError="LayoutRoot_BindingValidationError">
        <Grid.Resources>
<res:C1_Schedule_EditAppointment x:Key="C1_Schedule_EditAppointment"/>
        </Grid.Resources>
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto" />
            <RowDefinition Height="Auto" />
            <RowDefinition Height="Auto" />
            <RowDefinition Height="Auto" />
            <RowDefinition Height="Auto" />
            <RowDefinition Height="Auto" />
            <RowDefinition Height="Auto" />
            <RowDefinition  />
            <RowDefinition Height="Auto" />
        </Grid.RowDefinitions>
        <Grid>
            <Grid.ColumnDefinitions>
                <ColumnDefinition Width="75" />
                <ColumnDefinition Width="*" />
            </Grid.ColumnDefinitions>
<TextBlock VerticalAlignment="Center" Margin="10,2,0,2" HorizontalAlignment="Left" Text="{Binding subject, Source={StaticResource C1_Schedule_EditAppointment}}" />
<TextBox x:Name="subject" Grid.Column="1" TabIndex="0" Padding="2" Text="{Binding Subject, Mode=TwoWay}" TextChanged="subject_TextChanged" MaxLength="255" VerticalAlignment="Center" Margin="10,2,10,2" />
        </Grid>
        <Grid Grid.Row="1">
            <Grid.ColumnDefinitions>
                <ColumnDefinition Width="75" />
                <ColumnDefinition Width="*" />
            </Grid.ColumnDefinitions>
        <TextBlock VerticalAlignment="Center" Margin="10,2,0,2" HorizontalAlignment="Left" Text="{Binding location, Source={StaticResource C1_Schedule_EditAppointment}}" />
<TextBox TabIndex="1" x:Name="location" Grid.Column="1" Text="{Binding Location, Mode=TwoWay}" MaxLength="255" VerticalAlignment="Center" Margin="10,2,10,2" />
        </Grid>
        <Grid Grid.Row="2">
            <Grid.ColumnDefinitions>
                <ColumnDefinition Width="75" />
                <ColumnDefinition Width="*" />
            </Grid.ColumnDefinitions>
 <TextBlock VerticalAlignment="Center" Margin="10,2,0,2" HorizontalAlignment="Left" Text="{Binding startTime, Source={StaticResource C1_Schedule_EditAppointment}}"/>
<c1datetime:C1DateTimePicker x:Name="startCalendar" Grid.Column="1" VerticalAlignment="Center" Margin="10,2,10,2"        Padding="1" IsTabStop="False" TimeFormat="ShortTime" DateFormat="Long" FirstDayOfWeek="{Binding Path=ParentCollection.ParentStorage.ScheduleStorage.Scheduler.CalendarHelper.WeekStart}" DateTime="{Binding Start, Mode=TwoWay}"/>
        </Grid>
        <Grid Grid.Row="3">
            <Grid.ColumnDefinitions>
                <ColumnDefinition Width="75" />
                <ColumnDefinition Width="*" />
            </Grid.ColumnDefinitions>
 <TextBlock VerticalAlignment="Center" Margin="10,2,0,2" HorizontalAlignment="Left" Text="{Binding endTime, Source={StaticResource C1_Schedule_EditAppointment}}"/>
<c1datetime:C1DateTimePicker x:Name="endCalendar" VerticalAlignment="Center" Margin="10,2,10,2" Padding="1" DateTimeChanged="endCalendar_DateTimeChanged" FirstDayOfWeek="{Binding Path=ParentCollection.ParentStorage.ScheduleStorage.Scheduler.CalendarHelper.WeekStart}" TimeFormat="ShortTime" DateFormat="Long" Grid.Column="1" c1:C1NagScreen.Nag="True" />
        </Grid>
        <Grid Grid.Row="4" Background="Yellow">
            <Grid.ColumnDefinitions>
                <ColumnDefinition Width="100" />
                <ColumnDefinition Width="*" />
            </Grid.ColumnDefinitions>
<TextBlock VerticalAlignment="Center" Text="Custom Data:" HorizontalAlignment="Left" Margin="10,2,0,2"/>
<TextBox Name="customDataTextBox" Grid.Column="1" Text="{Binding Path=CustomData, Mode=TwoWay}" Margin="10,2,10,2"/>
        </Grid>
        <Grid Grid.Row="5" Background="Orange">
            <Grid.ColumnDefinitions>
                <ColumnDefinition Width="100" />
                <ColumnDefinition Width="*" />
            </Grid.ColumnDefinitions>
<TextBlock VerticalAlignment="Center" Text="BO Property 1:" HorizontalAlignment="Left" Margin="10,2,0,2"/>
<TextBox Name="BOTextBox1" Grid.Column="1" Text="{Binding Path=Tag.Tag.BOProperty1, Mode=TwoWay}" Margin="10,2,10,2" />
        </Grid>
        <Grid Grid.Row="6" Background="Orange">
            <Grid.ColumnDefinitions>
                <ColumnDefinition Width="100" />
                <ColumnDefinition Width="*" />
            </Grid.ColumnDefinitions>

<TextBlock VerticalAlignment="Center" Text="BO Property 2:" HorizontalAlignment="Left" Margin="10,2,0,2"/>
<TextBox Name="BOTextBox2" Grid.Column="1" Text="{Binding Path=Tag.Tag.BOProperty2, Mode=TwoWay}" Margin="10,2,10,2"/>
        </Grid>
        <Grid Grid.Row="7">
            <Grid.ColumnDefinitions>
                <ColumnDefinition Width="75" />
                <ColumnDefinition Width="*" />
            </Grid.ColumnDefinitions>
<TextBlock VerticalAlignment="Top" Text="Notes:" HorizontalAlignment="Left" Margin="10,2,0,2"/>
<TextBox x:Name="body" Text="{Binding Body, Mode=TwoWay}" AcceptsReturn="true" Grid.Column="1" Margin="10,2,10,2" />
        </Grid>
<StackPanel Orientation="Horizontal" Grid.Row="8" HorizontalAlignment="Right">
<Button Name="deleteButton" IsTabStop="False"  Margin="0,0,5,0"                        c1:CommandExtensions.CommandTarget="{Binding ParentCollection.ParentStorage.ScheduleStorage.Scheduler}" c1:CommandExtensions.CommandParameter="{Binding Tag}" c1:CommandExtensions.Command="c1sched:C1Scheduler.DeleteAppointmentCommand"                      ToolTipService.ToolTip="{Binding deleteButton_ToolTip, Source={StaticResource C1_Schedule_EditAppointment}}">
<StackPanel Orientation="Horizontal" VerticalAlignment="Center">
<Image Height="16" Width="16" Source="/SchedulerCustomData;component/Images/Delete.png"></Image>
  <TextBlock Text="Cancel Appointment" />
                </StackPanel>
            </Button>
 <Button x:Name="PART_DialogSaveButton" IsTabStop="False"  Click="PART_DialogSaveButton_Click"       ToolTipService.ToolTip="{Binding PART_DialogSaveButton_Tooltip, Source={StaticResource C1_Schedule_EditAppointment}}">
<StackPanel Orientation="Horizontal" VerticalAlignment="Center">
 <Image Height="16" Width="16" Source="/SchedulerCustomData;component/Images/save.png"></Image>
<TextBlock Margin="3,0,0,0" Text="{Binding PART_DialogSaveButton_AccessText, Source={StaticResource C1_Schedule_EditAppointment}}" VerticalAlignment="Center"/>                </StackPanel>
</Button>
</StackPanel>
    </Grid>
</UserControl>

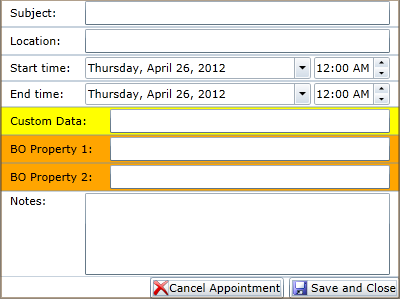

The Edit Appointment dialog box in Design View should resemble the following image:

Right-click on the page and select View Code from the list. In Code View, add the following namespaces to the application:

Visual Basic	Copy Code
Imports C1.Silverlight.Schedule Imports C1.Silverlight Imports C1.Silverlight.DateTimeEditors Imports C1.C1Schedule Imports System.Windows.Data

C#	Copy Code
using C1.Silverlight.Schedule; using C1.Silverlight; using C1.Silverlight.DateTimeEditors; using C1.C1Schedule; using System.Windows.Data;

Add the following region directive and public method below the public partial class:

VIsual Basic	Copy Code
#Region "fields" Dim _parentWindow As ContentControl = Nothing Dim _appointment As Appointment Dim _scheduler As C1Scheduler #End Region

C#	Copy Code
#region ** fields private ContentControl _parentWindow = null; private Appointment _appointment; //AppointmentBORow customBO; //not used private C1Scheduler _scheduler; #endregion

Add a UserControl_Loaded event handler:

Visual Basic	Copy Code
Private Sub UserControl_Loaded(ByVal sender As Object, ByVal e As RoutedEventArgs) _appointment = CType(DataContext, Appointment) 'Appointment sourceApp = _appointment.Tag As Appointment 'customBO = sourceApp.Tag As AppointmentBORow _parentWindow = CType(VTreeHelper.GetParentOfType(Me, GetType(C1Window)), ContentControl) If (Not (_parentWindow) Is Nothing) Then Dim bnd As Binding = New Binding("Header") bnd.Source = Me _parentWindow.SetBinding(C1Window.HeaderProperty, bnd) End If If (Not (_appointment) Is Nothing) Then AddHandler CType(_appointment, System.ComponentModel.INotifyPropertyChanged).PropertyChanged, AddressOf Me.appointment_PropertyChanged If (Not (_appointment.ParentCollection) Is Nothing) Then _scheduler = _appointment.ParentCollection.ParentStorage.ScheduleStorage.Scheduler End If Header = "Edit Appointment" UpdateEndCalendar() endCalendar.EditMode = C1DateTimePickerEditMode.DateTime startCalendar.EditMode = C1DateTimePickerEditMode.DateTime End If subject.Focus() End Sub

Visual Basic

Copy Code

Private Sub UserControl_Loaded(ByVal sender As Object, ByVal e As RoutedEventArgs)
        _appointment = CType(DataContext, Appointment)
        'Appointment sourceApp = _appointment.Tag As Appointment
        'customBO = sourceApp.Tag As AppointmentBORow
        _parentWindow = CType(VTreeHelper.GetParentOfType(Me, GetType(C1Window)), ContentControl)
        If (Not (_parentWindow) Is Nothing) Then
            Dim bnd As Binding = New Binding("Header")
            bnd.Source = Me
            _parentWindow.SetBinding(C1Window.HeaderProperty, bnd)
        End If
        If (Not (_appointment) Is Nothing) Then
            AddHandler CType(_appointment, System.ComponentModel.INotifyPropertyChanged).PropertyChanged, AddressOf Me.appointment_PropertyChanged
            If (Not (_appointment.ParentCollection) Is Nothing) Then
                _scheduler = _appointment.ParentCollection.ParentStorage.ScheduleStorage.Scheduler
            End If
            Header = "Edit Appointment"
            UpdateEndCalendar()
            endCalendar.EditMode = C1DateTimePickerEditMode.DateTime
            startCalendar.EditMode = C1DateTimePickerEditMode.DateTime
        End If
        subject.Focus()
    End Sub

C#	Copy Code
private void UserControl_Loaded(object sender, RoutedEventArgs e) { _appointment = DataContext as Appointment; //Appointment sourceApp = _appointment.Tag as Appointment; //customBO = sourceApp.Tag as AppointmentBORow; _parentWindow = (ContentControl)VTreeHelper.GetParentOfType(this, typeof(C1Window)); if (_parentWindow != null) { Binding bnd = new Binding("Header"); bnd.Source = this; _parentWindow.SetBinding(C1Window.HeaderProperty, bnd); } if (_appointment != null) { ((System.ComponentModel.INotifyPropertyChanged)_appointment).PropertyChanged += new System.ComponentModel.PropertyChangedEventHandler(appointment_PropertyChanged); if (_appointment.ParentCollection != null) { _scheduler = _appointment.ParentCollection.ParentStorage.ScheduleStorage.Scheduler; } Header = "Edit Appointment"; UpdateEndCalendar(); startCalendar.EditMode = endCalendar.EditMode = C1DateTimePickerEditMode.DateTime; } subject.Focus(); }

Copy Code

 private void UserControl_Loaded(object sender, RoutedEventArgs e)
        {
            _appointment = DataContext as Appointment;
            //Appointment sourceApp = _appointment.Tag as Appointment;
            //customBO = sourceApp.Tag as AppointmentBORow;

            _parentWindow = (ContentControl)VTreeHelper.GetParentOfType(this, typeof(C1Window));
            if (_parentWindow != null)
            {
                Binding bnd = new Binding("Header");
                bnd.Source = this;
                _parentWindow.SetBinding(C1Window.HeaderProperty, bnd);
            }
            if (_appointment != null)
            {
                ((System.ComponentModel.INotifyPropertyChanged)_appointment).PropertyChanged += new System.ComponentModel.PropertyChangedEventHandler(appointment_PropertyChanged);
                if (_appointment.ParentCollection != null)
                {
                    _scheduler = _appointment.ParentCollection.ParentStorage.ScheduleStorage.Scheduler;
                }
                Header = "Edit Appointment";
                UpdateEndCalendar();
                startCalendar.EditMode = endCalendar.EditMode = C1DateTimePickerEditMode.DateTime;
            }
            subject.Focus();
        }

Add the following code to govern some of the button and mouse events:

Visual Basic	Copy Code
Protected Overrides Sub OnMouseEnter(ByVal e As MouseEventArgs) MyBase.OnMouseEnter(e) End Sub Protected Overrides Sub OnGotFocus(ByVal e As RoutedEventArgs) MyBase.OnGotFocus(e) End Sub Private Sub LayoutRoot_BindingValidationError(ByVal sender As Object, ByVal e As ValidationErrorEventArgs) If (e.Action = ValidationErrorEventAction.Added) Then PART_DialogSaveButton.IsEnabled = False PART_DialogSaveButton.IsEnabled = False Else PART_DialogSaveButton.IsEnabled = True End If End Sub Private Sub PART_DialogSaveButton_Click(ByVal sender As Object, ByVal e As RoutedEventArgs) SetAppointment() CType(_parentWindow, C1Window).DialogResult = MessageBoxResult.OK End Sub Private Sub subject_TextChanged(ByVal sender As Object, ByVal e As TextChangedEventArgs) subject.GetBindingExpression(TextBox.TextProperty).UpdateSource() End Sub

Visual Basic

Copy Code

Protected Overrides Sub OnMouseEnter(ByVal e As MouseEventArgs)
        MyBase.OnMouseEnter(e)
    End Sub

    Protected Overrides Sub OnGotFocus(ByVal e As RoutedEventArgs)
        MyBase.OnGotFocus(e)
    End Sub

    Private Sub LayoutRoot_BindingValidationError(ByVal sender As Object, ByVal e As ValidationErrorEventArgs)
        If (e.Action = ValidationErrorEventAction.Added) Then
            PART_DialogSaveButton.IsEnabled = False
            PART_DialogSaveButton.IsEnabled = False
        Else
            PART_DialogSaveButton.IsEnabled = True
        End If
    End Sub

    Private Sub PART_DialogSaveButton_Click(ByVal sender As Object, ByVal e As RoutedEventArgs)
        SetAppointment()
        CType(_parentWindow, C1Window).DialogResult = MessageBoxResult.OK
    End Sub

    Private Sub subject_TextChanged(ByVal sender As Object, ByVal e As TextChangedEventArgs)
        subject.GetBindingExpression(TextBox.TextProperty).UpdateSource()
    End Sub

C#	Copy Code
protected override void OnMouseEnter(MouseEventArgs e) { base.OnMouseEnter(e); } protected override void OnGotFocus(RoutedEventArgs e) { base.OnGotFocus(e); } private void LayoutRoot_BindingValidationError(object sender, ValidationErrorEventArgs e) { if (e.Action == ValidationErrorEventAction.Added) { PART_DialogSaveButton.IsEnabled = false; } else { PART_DialogSaveButton.IsEnabled = true; } } private void PART_DialogSaveButton_Click(object sender, RoutedEventArgs e) { SetAppointment(); ((C1Window)_parentWindow).DialogResult = MessageBoxResult.OK; } private void subject_TextChanged(object sender, TextChangedEventArgs e) { subject.GetBindingExpression(TextBox.TextProperty).UpdateSource(); }

Copy Code

protected override void OnMouseEnter(MouseEventArgs e)
        {
            base.OnMouseEnter(e);
        }
        protected override void OnGotFocus(RoutedEventArgs e)
        {
            base.OnGotFocus(e);
        }
        private void LayoutRoot_BindingValidationError(object sender, ValidationErrorEventArgs e)
        {
            if (e.Action == ValidationErrorEventAction.Added)
            {
                PART_DialogSaveButton.IsEnabled = false;
            }
            else
            {
                PART_DialogSaveButton.IsEnabled = true;
            }
        }
        private void PART_DialogSaveButton_Click(object sender, RoutedEventArgs e)
        {
            SetAppointment();
            ((C1Window)_parentWindow).DialogResult = MessageBoxResult.OK;
        }
        private void subject_TextChanged(object sender, TextChangedEventArgs e)
        {          subject.GetBindingExpression(TextBox.TextProperty).UpdateSource();
        }

Add the SetAppointment method :

Visual Basic	Copy Code
Private Sub SetAppointment() location.GetBindingExpression(TextBox.TextProperty).UpdateSource() body.GetBindingExpression(TextBox.TextProperty).UpdateSource() 'Update Additional Data Properties customDataTextBox.GetBindingExpression(TextBox.TextProperty).UpdateSource() BOTextBox1.GetBindingExpression(TextBox.TextProperty).UpdateSource() BOTextBox2.GetBindingExpression(TextBox.TextProperty).UpdateSource() End Sub Private Sub appointment_PropertyChanged(ByVal sender As Object, ByVal e As System.ComponentModel.PropertyChangedEventArgs) UpdateEndCalendar() End Sub

Visual Basic

Copy Code

Private Sub SetAppointment()
        location.GetBindingExpression(TextBox.TextProperty).UpdateSource()
        body.GetBindingExpression(TextBox.TextProperty).UpdateSource()
        'Update Additional Data Properties
        customDataTextBox.GetBindingExpression(TextBox.TextProperty).UpdateSource()
        BOTextBox1.GetBindingExpression(TextBox.TextProperty).UpdateSource()
        BOTextBox2.GetBindingExpression(TextBox.TextProperty).UpdateSource()
    End Sub

    Private Sub appointment_PropertyChanged(ByVal sender As Object, ByVal e As System.ComponentModel.PropertyChangedEventArgs)
        UpdateEndCalendar()
    End Sub

C#	Copy Code
private void SetAppointment() { location.GetBindingExpression(TextBox.TextProperty).UpdateSource(); body.GetBindingExpression(TextBox.TextProperty).UpdateSource(); //Update Additional Data Properties customDataTextBox.GetBindingExpression(TextBox.TextProperty).UpdateSource(); BOTextBox1.GetBindingExpression(TextBox.TextProperty).UpdateSource(); BOTextBox2.GetBindingExpression(TextBox.TextProperty).UpdateSource(); } void appointment_PropertyChanged(object sender, System.ComponentModel.PropertyChangedEventArgs e) { UpdateEndCalendar(); }

Copy Code

private void SetAppointment()
        {            location.GetBindingExpression(TextBox.TextProperty).UpdateSource();            body.GetBindingExpression(TextBox.TextProperty).UpdateSource();
            //Update Additional Data Properties            customDataTextBox.GetBindingExpression(TextBox.TextProperty).UpdateSource();            BOTextBox1.GetBindingExpression(TextBox.TextProperty).UpdateSource();            BOTextBox2.GetBindingExpression(TextBox.TextProperty).UpdateSource();
        }
        void appointment_PropertyChanged(object sender, System.ComponentModel.PropertyChangedEventArgs e)
        {
            UpdateEndCalendar();
        }

Add the following object model to the EditAppointmentDialog class:

Visual Basic	Copy Code
#Region "Appointment Properties" Public Property Appointment As Appointment Get Return _appointment End Get Set(value As Appointment) _appointment = value If (Not (_parentWindow) Is Nothing) Then _parentWindow.DataContext = value _parentWindow.Content = value End If DataContext = value End Set End Property ''' <summary> ''' Gets a <see cref="String"/> value which can be used as an Appointment window header. ''' </summary> Public Property Header As String Get Return CType(GetValue(HeaderProperty), String) End Get Set(value As String) SetValue(HeaderProperty, value) End Set End Property Private Shared HeaderProperty As DependencyProperty = DependencyProperty.Register("Header", GetType(System.String), GetType(EditAppointmentDialog), Nothing) ''' <summary> ''' Gets recurrence pattern description. ''' </summary> Public Property PatternDescription As String Get Return CType(GetValue(PatternDescriptionProperty), String) End Get Set(value As String) SetValue(PatternDescriptionProperty, value) End Set End Property Public Shared PatternDescriptionProperty As DependencyProperty = DependencyProperty.Register("PatternDescription", GetType(System.String), GetType(EditAppointmentControl), New PropertyMetadata(String.Empty)) #End Region

Visual Basic

Copy Code

#Region "Appointment Properties"
    Public Property Appointment As Appointment
        Get
            Return _appointment
        End Get
        Set(value As Appointment)
            _appointment = value
            If (Not (_parentWindow) Is Nothing) Then
                _parentWindow.DataContext = value
                _parentWindow.Content = value
            End If
            DataContext = value
        End Set
    End Property
    ''' <summary>
    ''' Gets a <see cref="String"/> value which can be used as an Appointment window header.
    ''' </summary>
    Public Property Header As String
        Get
            Return CType(GetValue(HeaderProperty), String)
        End Get
        Set(value As String)
            SetValue(HeaderProperty, value)
        End Set
    End Property
    Private Shared HeaderProperty As DependencyProperty = DependencyProperty.Register("Header", GetType(System.String), GetType(EditAppointmentDialog), Nothing)
    ''' <summary>
    ''' Gets recurrence pattern description.
    ''' </summary>
    Public Property PatternDescription As String
        Get
            Return CType(GetValue(PatternDescriptionProperty), String)
        End Get
        Set(value As String)
            SetValue(PatternDescriptionProperty, value)
        End Set
    End Property
    Public Shared PatternDescriptionProperty As DependencyProperty = DependencyProperty.Register("PatternDescription", GetType(System.String), GetType(EditAppointmentControl), New PropertyMetadata(String.Empty))
#End Region

C#	Copy Code
#region ** object model /// <summary> /// Gets an <see cref="Appointment"/> object representing current DataContext. /// </summary> public Appointment Appointment { get { return _appointment; } set { _appointment = value; if (_parentWindow != null) { _parentWindow.Content = _parentWindow.DataContext = value; } DataContext = value; } } /// <summary> /// Gets a <see cref="String"/> value which can be used as an Appointment window header. /// </summary> public string Header { get { return (string)GetValue(HeaderProperty); } private set { SetValue(HeaderProperty, value); } } private static readonly DependencyProperty HeaderProperty = DependencyProperty.Register("Header", typeof(string), typeof(EditAppointmentDialog), null); /// <summary> /// Gets recurrence pattern description. /// </summary> public string PatternDescription { get { return (string)GetValue(PatternDescriptionProperty); } private set { SetValue(PatternDescriptionProperty, value); } } public static readonly DependencyProperty PatternDescriptionProperty = DependencyProperty.Register("PatternDescription", typeof(string), typeof(EditAppointmentControl), new PropertyMetadata(string.Empty)); #endregion

Copy Code

#region ** object model
        /// <summary>
        /// Gets an <see cref="Appointment"/> object representing current DataContext.
        /// </summary>
        public Appointment Appointment
        {
            get
            {
                return _appointment;
            }
            set
            {
                _appointment = value;
                if (_parentWindow != null)
                {
                    _parentWindow.Content =
                    _parentWindow.DataContext = value;
                }
                DataContext = value;
            }
        }
        /// <summary>
        /// Gets a <see cref="String"/> value which can be used as an Appointment window header.
        /// </summary>
        public string Header
        {
            get { return (string)GetValue(HeaderProperty); }
            private set { SetValue(HeaderProperty, value); }
        }
        private static readonly DependencyProperty HeaderProperty =
            DependencyProperty.Register("Header", typeof(string), typeof(EditAppointmentDialog), null);
        /// <summary>
        /// Gets recurrence pattern description.
        /// </summary>
        public string PatternDescription
        {
            get { return (string)GetValue(PatternDescriptionProperty); }
            private set { SetValue(PatternDescriptionProperty, value); }
        }
        public static readonly DependencyProperty PatternDescriptionProperty =
            DependencyProperty.Register("PatternDescription", typeof(string),
            typeof(EditAppointmentControl), new PropertyMetadata(string.Empty));
        #endregion

Insert the last portion of code to control the DateTimeChanged method:

Visual Basic	Copy Code
#Region "DateTime Picker logic" Private Sub endCalendar_DateTimeChanged(ByVal sender As Object, ByVal e As NullablePropertyChangedEventArgs(Of DateTime)) If (Not (_appointment) Is Nothing) Then Dim dt As DateTime = endCalendar.DateTime.Value If _appointment.AllDayEvent Then dt = dt.AddDays(1) End If If (dt < Appointment.Start) Then endCalendar.Background = New SolidColorBrush(Colors.Red) endCalendar.Foreground = New SolidColorBrush(Colors.Red) endCalendar.BorderBrush = New SolidColorBrush(Colors.Red) endCalendar.BorderThickness = New Thickness(2) ToolTipService.SetToolTip(endCalendar, C1.Silverlight.Schedule.Resources.C1_Schedule_Exceptions.StartEndValidationFailed) PART_DialogSaveButton.IsEnabled = False Else _appointment.End = dt If Not PART_DialogSaveButton.IsEnabled Then PART_DialogSaveButton.IsEnabled = True endCalendar.ClearValue(Control.BackgroundProperty) endCalendar.ClearValue(Control.ForegroundProperty) endCalendar.ClearValue(Control.BorderBrushProperty) endCalendar.ClearValue(Control.BorderThicknessProperty) endCalendar.ClearValue(ToolTipService.ToolTipProperty) End If End If End If End Sub Private Sub UpdateEndCalendar() Dim dt As DateTime = _appointment.End If _appointment.AllDayEvent Then dt = dt.AddDays(-1) End If endCalendar.DateTime = dt If Not PART_DialogSaveButton.IsEnabled Then PART_DialogSaveButton.IsEnabled = True endCalendar.ClearValue(Control.BackgroundProperty) endCalendar.ClearValue(Control.ForegroundProperty) endCalendar.ClearValue(Control.BorderBrushProperty) endCalendar.ClearValue(Control.BorderThicknessProperty) endCalendar.ClearValue(ToolTipService.ToolTipProperty) End If End Sub #End Region

Visual Basic

Copy Code

#Region "DateTime Picker logic"
    Private Sub endCalendar_DateTimeChanged(ByVal sender As Object, ByVal e As NullablePropertyChangedEventArgs(Of DateTime))
        If (Not (_appointment) Is Nothing) Then
            Dim dt As DateTime = endCalendar.DateTime.Value
            If _appointment.AllDayEvent Then
                dt = dt.AddDays(1)
            End If
            If (dt < Appointment.Start) Then
                endCalendar.Background = New SolidColorBrush(Colors.Red)
                endCalendar.Foreground = New SolidColorBrush(Colors.Red)
                endCalendar.BorderBrush = New SolidColorBrush(Colors.Red)
                endCalendar.BorderThickness = New Thickness(2)
                ToolTipService.SetToolTip(endCalendar, C1.Silverlight.Schedule.Resources.C1_Schedule_Exceptions.StartEndValidationFailed)
                PART_DialogSaveButton.IsEnabled = False
            Else
                _appointment.End = dt
                If Not PART_DialogSaveButton.IsEnabled Then
                    PART_DialogSaveButton.IsEnabled = True
                    endCalendar.ClearValue(Control.BackgroundProperty)
                    endCalendar.ClearValue(Control.ForegroundProperty)
                    endCalendar.ClearValue(Control.BorderBrushProperty)
                    endCalendar.ClearValue(Control.BorderThicknessProperty)
                    endCalendar.ClearValue(ToolTipService.ToolTipProperty)
                End If
            End If
        End If
    End Sub
    Private Sub UpdateEndCalendar()
        Dim dt As DateTime = _appointment.End
        If _appointment.AllDayEvent Then
            dt = dt.AddDays(-1)
        End If
        endCalendar.DateTime = dt
        If Not PART_DialogSaveButton.IsEnabled Then
            PART_DialogSaveButton.IsEnabled = True
            endCalendar.ClearValue(Control.BackgroundProperty)
            endCalendar.ClearValue(Control.ForegroundProperty)
            endCalendar.ClearValue(Control.BorderBrushProperty)
            endCalendar.ClearValue(Control.BorderThicknessProperty)
            endCalendar.ClearValue(ToolTipService.ToolTipProperty)
        End If
    End Sub
#End Region

C#	Copy Code
#region "DateTime Picker logic" private void endCalendar_DateTimeChanged(object sender, NullablePropertyChangedEventArgs<DateTime> e) { if (_appointment != null) { DateTime end = endCalendar.DateTime.Value; if (_appointment.AllDayEvent) { end = end.AddDays(1); } if (end < Appointment.Start) { endCalendar.BorderBrush = endCalendar.Foreground = endCalendar.Background = new SolidColorBrush(Colors.Red); endCalendar.BorderThickness = new Thickness(2); ToolTipService.SetToolTip(endCalendar, C1.Silverlight.Schedule.Resources.C1_Schedule_Exceptions.StartEndValidationFailed); PART_DialogSaveButton.IsEnabled = false; } else { _appointment.End = end; if (!PART_DialogSaveButton.IsEnabled) { PART_DialogSaveButton.IsEnabled = true; endCalendar.ClearValue(Control.BackgroundProperty); endCalendar.ClearValue(Control.ForegroundProperty); endCalendar.ClearValue(Control.BorderBrushProperty); endCalendar.ClearValue(Control.BorderThicknessProperty); endCalendar.ClearValue(ToolTipService.ToolTipProperty); } } } } private void UpdateEndCalendar() { DateTime end = _appointment.End; if (_appointment.AllDayEvent) { end = end.AddDays(-1); } endCalendar.DateTime = end; if (!PART_DialogSaveButton.IsEnabled) { PART_DialogSaveButton.IsEnabled = true; endCalendar.ClearValue(Control.BackgroundProperty); endCalendar.ClearValue(Control.ForegroundProperty); endCalendar.ClearValue(Control.BorderBrushProperty); endCalendar.ClearValue(Control.BorderThicknessProperty); endCalendar.ClearValue(ToolTipService.ToolTipProperty); } } #endregion } }

Copy Code

#region "DateTime Picker logic"
        private void endCalendar_DateTimeChanged(object sender, NullablePropertyChangedEventArgs<DateTime> e)
        {
            if (_appointment != null)
            {
                DateTime end = endCalendar.DateTime.Value;
                if (_appointment.AllDayEvent)
                {
                    end = end.AddDays(1);
                }
                if (end < Appointment.Start)
                {
                    endCalendar.BorderBrush = endCalendar.Foreground =
                    endCalendar.Background = new SolidColorBrush(Colors.Red);
                    endCalendar.BorderThickness = new Thickness(2);
                    ToolTipService.SetToolTip(endCalendar,                        C1.Silverlight.Schedule.Resources.C1_Schedule_Exceptions.StartEndValidationFailed);
                    PART_DialogSaveButton.IsEnabled = false;
                }
                else
                {
                    _appointment.End = end;
                    if (!PART_DialogSaveButton.IsEnabled)
                    {
                        PART_DialogSaveButton.IsEnabled = true;                        endCalendar.ClearValue(Control.BackgroundProperty);                        endCalendar.ClearValue(Control.ForegroundProperty);                        endCalendar.ClearValue(Control.BorderBrushProperty);                        endCalendar.ClearValue(Control.BorderThicknessProperty);                        endCalendar.ClearValue(ToolTipService.ToolTipProperty);
                    }
                }
            }
        }
        private void UpdateEndCalendar()
        {
            DateTime end = _appointment.End;
            if (_appointment.AllDayEvent)
            {
                end = end.AddDays(-1);
            }
            endCalendar.DateTime = end;
            if (!PART_DialogSaveButton.IsEnabled)
            {
                PART_DialogSaveButton.IsEnabled = true;
                endCalendar.ClearValue(Control.BackgroundProperty);
                endCalendar.ClearValue(Control.ForegroundProperty);
                endCalendar.ClearValue(Control.BorderBrushProperty);                endCalendar.ClearValue(Control.BorderThicknessProperty);                endCalendar.ClearValue(ToolTipService.ToolTipProperty);
            }
        }
        #endregion
    }
}

In this step, you created the custom Edit Appointment dialog box and set the code to control the appointment methods and events.
