In this example, two buttons and a listbox will be used to show how images can be retrieved from a .zip file.
To retrieve images directly from a zip file, first add the following code to compress several image files into a zip file. In this example, the code is added to the btnNew_Click event, which creates a new .zip file for the images when a button is clicked.
•C#
private void btnNew_Click(object sender, RoutedEventArgs e)
{
// Show open file dialog.
SaveFileDialog dlgSaveFile = new SaveFileDialog();
dlgSaveFile.Filter = "Zip Files (*.zip) | *.zip";
// Open zip file.
try
{
if (dlgSaveFile.ShowDialog() == true)
{
zipFile.Create(dlgSaveFile.OpenFile());
}
}
catch
{
MessageBox.Show("Can't create a ZIP file, please try again.", "C1Zip", MessageBoxButton.OK);
}
}
Then use the following code to add image files to a list in the ListBox.
•C#
private void btnAdd_Click(object sender, RoutedEventArgs e)
{
// Get list of files to add.
OpenFileDialog fo = new OpenFileDialog();
fo.Multiselect = true;
if (fo.ShowDialog() == true)
{
// Add files in the list.
foreach (FileInfo file in fo.Files)
{
Stream stream = file.OpenRead();
listBox1.Items.Add(file.Name);
zipFile.Entries.Add(stream, file.Name);
}
}
}
To allow you to select an image, retrieve a stream with the image data (OpenReader method), and add the following code to the listBox1_SelectionChanged and StreamCopy events:
•C#
private void listBox1_SelectionChanged(object sender, SelectionChangedEventArgs e)
{
// Get the selected item.
string item = (string)listBox1.SelectedItem;
// Load the image directly from a compressed stream.
Stream stream = zipFile.Entries[item].OpenReader();
using (MemoryStream ms = new MemoryStream())
{
StreamCopy(ms, stream);
BitmapImage img = new BitmapImage();
img.SetSource(ms);
this.image1.Source = img;
// Done with stream.
stream.Close();
}
}
private void StreamCopy(Stream dstStream, Stream srcStream)
{
byte[] buffer = new byte[32768];
for (; ; )
{
int read = srcStream.Read(buffer, 0, buffer.Length);
if (read == 0) break;
dstStream.Write(buffer, 0, read);
}
dstStream.Flush();
}

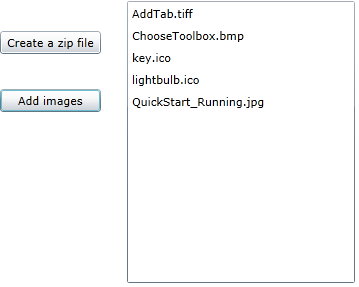

This topic illustrates the following:
This example shows several types of images, including ICO, TIFF, BMP, and JPG images.
