FlexChart > Quick Start > Step 2: Binding FlexChart to a Data Source |
After you have added the FlexChart control to the form, you need to bind it to a valid data source.
The below-mentioned code illustrates how to bind FlexChart to a data source to plot the required data.
![]() |
To run the given code successfully, you need to insert the System.Data.OleDb namespace in the code behind. |
Add the following code in the Form_Load event:
' retrieve data from the data source Dim conPath As String = "Provider=Microsoft.Jet.OLEDB.4.0;" & vbCr & vbLf & "Data Source=C:\\Users\\GPCTAdmin\\Desktop\\C1NWind.mdb" Dim conQuery As String = "SELECT * FROM Cars WHERE Brand = 'BMW'" Dim da As New OleDbDataAdapter(conQuery, conPath) ' fill the data table da.Fill(dt) ' bind FlexChart to the data table FlexChart1.DataSource = dt ' clear data series collection FlexChart1.Series.Clear() ' create data series Dim series1 As New C1.Win.Chart.Series() Dim series2 As New C1.Win.Chart.Series() Dim series3 As New C1.Win.Chart.Series() ' add the series to the series collection FlexChart1.Series.Add(series1) FlexChart1.Series.Add(series2) FlexChart1.Series.Add(series3) ' name the series series1.Name = "Liter" series2.Name = "Cyl" series3.Name = "MPG_City" ' bind X-axis and Y-axis FlexChart1.BindingX = "Model" series1.Binding = "Liter" series2.Binding = "Cyl" series3.Binding = "MPG_City" ' set the chart type FlexChart1.ChartType = C1.Chart.ChartType.Column ' set the legend position FlexChart1.Legend.Position = C1.Chart.Position.Right
DataTable dt = new DataTable(); // retrieve data from the data source string conPath = @"Provider=Microsoft.Jet.OLEDB.4.0; Data Source=C:\\Users\\<User Name>\\Desktop\\C1NWind.mdb"; // Provide the local path of data source string conQuery = "SELECT * FROM Cars WHERE Brand = 'BMW'"; OleDbDataAdapter da = new OleDbDataAdapter(conQuery, conPath); // fill the data table da.Fill(dt); // bind FlexChart to the data table flexChart1.DataSource = dt; // clear data series collection flexChart1.Series.Clear(); // create data series C1.Win.Chart.Series series1 = new C1.Win.Chart.Series(); C1.Win.Chart.Series series2 = new C1.Win.Chart.Series(); C1.Win.Chart.Series series3 = new C1.Win.Chart.Series(); // add the series to the series collection flexChart1.Series.Add(series1); flexChart1.Series.Add(series2); flexChart1.Series.Add(series3); // name the series series1.Name = "Liter"; series2.Name = "Cyl"; series3.Name = "MPG_City"; // bind X-axis and Y-axis flexChart1.BindingX = "Model"; series1.Binding = "Liter"; series2.Binding = "Cyl"; series3.Binding = "MPG_City"; // set the chart type flexChart1.ChartType = C1.Chart.ChartType.Column; // set the legend position flexChart1.Legend.Position = C1.Chart.Position.Right;
Once you've added the code in the Form_Load event, run the application and observe the output.

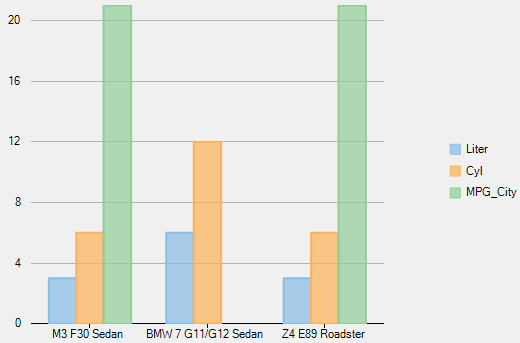

Notice that the output appears with the plotted data, as shown below:
You have successfully created a simple FlexChart application.
This concludes the quick start.
