The Bubble Chart, which is basically a type of the Scatter Chart, is used for graphical representation of multi-dimensional data. It displays an additional data value at each point by changing its size. The chart type represents data points in the form of bubbles (data markers) whose X and Y coordinates are determined by two data values and whose size indicates the value of a third variable.

To create the Bubble Chart, you need to set the ChartType property to Bubble either in the Properties window (at design-time) or code behind (at run-time).

Let's assume that there is a company XYZ, founded in 2003. The HR of the company needs to prepare an analysis report showing the development of the company from 2003 to 2015. For the analysis, the parameters to be considered are the average number of employees each year and the annual revenue in that particular year.

We can use the Bubble Chart to create the analysis report because we need to represent two data values (Y-values) for each X-value. In the chart, the vertical axis displays the number of employees each year and the size of the bubble represents the annual revenue for the same year.

Sample Data Table

Year	Number of Employees	Annual Revenue (1000 $)
2003	18	50
2004	20	55
2005	41	80
2006	64	100
2007	82	130
2008	105	160
2009	120	200
2010	65	105
2011	67	106
2012	63	100
2013	61	110
2014	79	115
2015	82	120

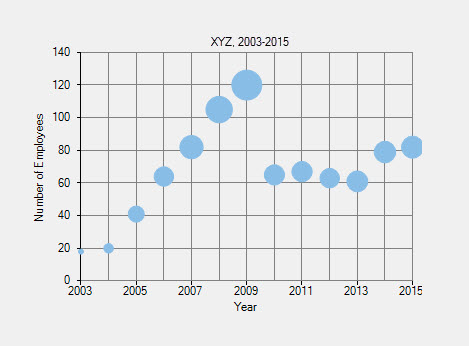

Bubble Chart

The above chart shows the development of the company XYZ in the period 2003-2015.

Number of series: one (Number of Employees and Annual Revenue)
Number of Y values per point: two

Below is the implementation in code:

Visual Basic
C#

Visual Basic

' create a datatable
Dim dt As New DataTable("Company XYZ,2003-2015")

' add columns to the datatable
dt.Columns.Add("Year", GetType(Integer))
dt.Columns.Add("Number of Employees", GetType(Integer))
dt.Columns.Add("Annual Revenue", GetType(Integer))

' add rows to the datatable
dt.Rows.Add(2003, 18, 50)
dt.Rows.Add(2004, 20, 55)
dt.Rows.Add(2005, 41, 80)
dt.Rows.Add(2006, 64, 100)
dt.Rows.Add(2007, 82, 130)
dt.Rows.Add(2008, 105, 160)
dt.Rows.Add(2009, 120, 200)
dt.Rows.Add(2010, 65, 105)
dt.Rows.Add(2011, 67, 106)
dt.Rows.Add(2012, 63, 100)
dt.Rows.Add(2013, 61, 110)
dt.Rows.Add(2014, 79, 115)
dt.Rows.Add(2015, 82, 120)

' clear data series collection
FlexChart1.Series.Clear()

' create data series
Dim series1 As New C1.Win.Chart.Series()

' add the data series to the data series collection
FlexChart1.Series.Add(series1)

' specify the datasource for the chart
FlexChart1.DataSource = dt

' bind X-axis and Y-axis
series1.BindingX = "Year"
series1.Binding = "Number of Employees,Annual Revenue"

' set the chart type to bubble
FlexChart1.ChartType = C1.Chart.ChartType.Bubble

// create a datatable
DataTable dt = new DataTable("Company XYZ,2003-2015");

// add columns to the datatable
dt.Columns.Add("Year", typeof(int));
dt.Columns.Add("Number of Employees", typeof(int));
dt.Columns.Add("Annual Revenue", typeof(int));

// add rows to the datatable
dt.Rows.Add(2003, 18, 50);
dt.Rows.Add(2004, 20, 55);
dt.Rows.Add(2005, 41, 80);
dt.Rows.Add(2006, 64, 100);
dt.Rows.Add(2007, 82, 130);
dt.Rows.Add(2008, 105, 160);
dt.Rows.Add(2009, 120, 200);
dt.Rows.Add(2010, 65, 105);
dt.Rows.Add(2011, 67, 106);
dt.Rows.Add(2012, 63, 100);
dt.Rows.Add(2013, 61, 110);
dt.Rows.Add(2014, 79, 115);
dt.Rows.Add(2015, 82, 120);

// clear data series collection
flexChart1.Series.Clear();

// create data series
C1.Win.Chart.Series series1 = new C1.Win.Chart.Series();

// add the data series to the data series collection
flexChart1.Series.Add(series1);

// specify the datasource for the chart
flexChart1.DataSource = dt;

// bind X-axis and Y-axis
series1.BindingX = "Year";
series1.Binding = "Number of Employees,Annual Revenue";

// set the chart type to bubble
flexChart1.ChartType = C1.Chart.ChartType.Bubble;
