Text annotations let you add additional information at specific data points to make the data informative. FlexChart lets you add single line as well as multiline text in text annotations.

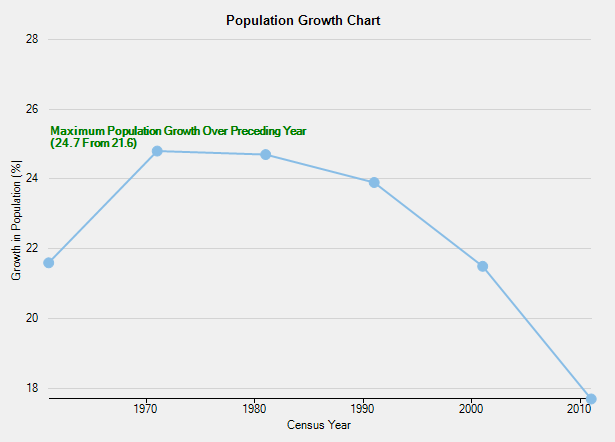

The following image shows the Text annotation displaying the maximum population growth rate between 1961 and 2011.
To work with text annotation in FlexChart, create an instance of the Text class and set the Content property for the instance.
The following code compares population growth rates at specific years in five consecutive decades. The code shows how to add, position, and customize the Text annotation in FlexChart.
' create an instance of the Line annotation Dim text As New C1.Win.Chart.Annotation.Text() ' specify the line content text.Content = "Maximum Population Growth Over Preceding Year" + Environment.NewLine + "(24.7 From 21.6)" ' specify the start and end points of the line text.Location = New PointF(1961.0F, 25.15F) ' specify the line attachment text.Attachment = C1.Chart.Annotation.AnnotationAttachment.DataCoordinate ' set the line position text.Position = C1.Chart.Annotation.AnnotationPosition.Top ' customize the line style and content style text.Style.StrokeColor = Color.Green text.Style.Font = New System.Drawing.Font(FontFamily.GenericSansSerif, 8, FontStyle.Bold) ' add the line to the Annotations collection of the annotation layer annotationLayer.Annotations.Add(text)
// create an instance of the Line annotation C1.Win.Chart.Annotation.Text text = new C1.Win.Chart.Annotation.Text(); // specify the line content text.Content = "Maximum Population Growth Over Preceding Year" + Environment.NewLine + "(24.7 From 21.6)"; // specify the start and end points of the line text.Location = new PointF(1961F,25.15F); // specify the line attachment text.Attachment = C1.Chart.Annotation.AnnotationAttachment.DataCoordinate; // set the line position text.Position = C1.Chart.Annotation.AnnotationPosition.Top; // customize the line style and content style text.Style.StrokeColor = Color.Green; text.Style.Font = new System.Drawing.Font(FontFamily.GenericSansSerif, 8, FontStyle.Bold); // add the line to the Annotations collection of the annotation layer annotationLayer.Annotations.Add(text);
