ImageUrl Property

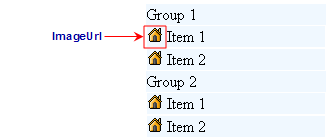

The ImageUrl property gets or sets the URL of the image to use in place of an icon.

This example assigns the ImageUrl property to the ItemStyle object.

· Visual Basic

topicbar.ItemStyle.BorderWidth = Unit.Pixel(1)

'assign the ImageUrl property to the ItemStyle

topicbar.ItemStyle.ImageUrl = "~/Images/house.gif"

· C#

topicbar.ItemStyle.BorderWidth = Unit.Pixel(1);

//assign the ImageUrl property to the ItemStyle;

topicbar.ItemStyle.ImageUrl = "~/Images/house.gif";

· Delphi

topicbar.ItemStyle.BorderWidth := Unit.Pixel(1);

//assign the ImageUrl property to the ItemStyle;

topicbar.ItemStyle.ImageUrl := '~/Images/house.gif';

This example assigns the ImageUrl property to the second item in Group 1.

Note: The code below is applicable for the flat controls: C1WebTopicBar, C1WebToolBar, and the C1WebTabStrip. The mechanism for specifying a specific item index is different for the tree type controls: C1WebTreeView and C1WebMenu. Please see the Tree View Control Type in the ItemStyle Class topic section, for a generic example how to set a specific item for the C1WebMenu and the C1WebTreeView.

· Visual Basic

topicbar.ItemStyle.BorderWidth = Unit.Pixel(1)

'assign the ImageUrl property to the ItemStyle

CType(topicbar.Groups(0).Items(1), C1WebLinkItem).ItemStyle.ImageUrl = "~/Images/house.gif"

· C#

topicbar.ItemStyle.BorderWidth = Unit.Pixel(1);

//assign the ImageUrl property to the ItemStyle

((C1WebLinkItem)topicbar.Groups[0].Items[1]).ItemStyle.ImageUrl = "~/Images/house.gif";

· Delphi

topicbar.ItemStyle.BorderWidth := Unit.Pixel(1);

//assign the ImageUrl property to the ItemStyle

((C1WebLinkItem)topicbar.Groups[0].Items[1]).ItemStyle.ImageUrl := '~/Images/house.gif';
