Data Binding

Data binding refers to the process of binding a data provider to a data consumer in a synchronized manner. You can bind GanttView control to any .NET data source requiring little code and display your project related attributes. GanttView supports data binding with various ADO.NET objects such as DataTable, DataView and DataSet.

The instructions given below explain step-by-step procedure for binding the GanttView control to a data source. This example uses a sample database file, Nwind.mdb, as the data source for binding.

Binding to a Data Source

Complete the steps given below to bind the GanttView control to a data source.

Create a WPF application (by the name DataBinding) and place C1GanttView control onto the MainWindow.

Set the Name property of the control to 'gv' in the XAML markup.

XAML	Copy Code
<c1:C1GanttView x:Name="gv" Margin="0,37,0,0">

Click View | Other Windows | Data Sources to add a data source to your project.
In Data Sources window, click Add New Data Source option to open the Data Configuration Wizard window.
In the Data Configuration Wizard window, select Database as the Data Source Type and click Next.
Select Dataset as the Database Model and click Next.
Click New Connection to connect to a database file. The Add Connection dialog appears.

In the Add Connection dialog, browse to the database file with which you want to set the connection.

The Nwind.mdb database file is by default kept in the installed folder at the following location.

C:\Users\...\Documents\ComponentOne Samples\Common\Nwind.mdb

Click Test Connection to test that the connection is successful and click OK.
Click Next and then OK to copy the database file in your project.
In the Tables drop-down list, select Calendars, Properties, Resources and Tasks tables as the object models and click Finish.

Storing and Retrieving Data

Complete the following steps to store data in your dataset and retrieve the same to display various project related attributes in GanttView.

Add the following import statements.

Visual Basic
C#

Visual Basic

Imports C1.GanttView
Imports DataBinding.C1NWindDataSetTableAdapters

using C1.GanttView;
using DataBinding.C1NWindDataSetTableAdapters;

Create the objects of the NwindDataSet and data adapters for Calendars, Properties, Resources and Tasks tables.

Visual Basic
C#

Visual Basic

Private c1NwindDataSet1 As New C1NWindDataSet()
Private tasksTableAdapter As New TasksTableAdapter()
Private calendarsTableAdapter As New CalendarsTableAdapter()
Private resourcesTableAdapter As New ResourcesTableAdapter()
Private propertiesTableAdapter As New PropertiesTableAdapter()

private C1NWindDataSet c1NwindDataSet1 = new C1NWindDataSet();
private TasksTableAdapter tasksTableAdapter = new TasksTableAdapter();
private CalendarsTableAdapter calendarsTableAdapter = new CalendarsTableAdapter();
private ResourcesTableAdapter resourcesTableAdapter = new ResourcesTableAdapter();
private PropertiesTableAdapter propertiesTableAdapter = new PropertiesTableAdapter();

Fill the tables using the data adapters and set different storage mappings for C1GanttViewStorage using the given code.

Visual Basic
C#

Visual Basic

Me.tasksTableAdapter.Fill(c1NwindDataSet1.Tasks)
Me.resourcesTableAdapter.Fill(c1NwindDataSet1.Resources)
Me.propertiesTableAdapter.Fill(c1NwindDataSet1.Properties)
Me.calendarsTableAdapter.Fill(c1NwindDataSet1.Calendars)

this.tasksTableAdapter.Fill(c1NwindDataSet1.Tasks);
this.resourcesTableAdapter.Fill(c1NwindDataSet1.Resources);
this.propertiesTableAdapter.Fill(c1NwindDataSet1.Properties);
this.calendarsTableAdapter.Fill(c1NwindDataSet1.Calendars);

Subscribe the Loaded event of the C1GanttView class.
- Visual Basic
- C#
- Visual Basic
AddHandler gv.Loaded, AddressOf gv_Loaded
- C#
gv.Loaded+=gv_Loaded;

Add the following code to set different storage mappings for C1GanttViewStorage class in the Loaded event.

Visual Basic
C#

Visual Basic

Private Sub gv_Loaded(sender As Object, e As RoutedEventArgs)

    Dim storage As C1GanttViewStorage = gv.DataStorage

    storage.CalendarStorage.Mappings.CalendarID.MappingName = "CalendarID"
    storage.CalendarStorage.Mappings.Data.MappingName = "Data"
    storage.CalendarStorage.Mappings.IdMapping.MappingName = "Id"
    storage.CalendarStorage.Mappings.Name.MappingName = "Name"
    storage.CalendarStorage.DataMember = "Calendars"
    storage.CalendarStorage.DataSource = Me.c1NwindDataSet1

    storage.PropertyStorage.Key.MappingName = "Key"
    storage.PropertyStorage.Value.MappingName = "Value"
    storage.PropertyStorage.DataMember = "Properties"
    storage.PropertyStorage.DataSource = Me.c1NwindDataSet1

    storage.ResourceStorage.Mappings.Cost.MappingName = "Cost"
    storage.ResourceStorage.Mappings.IdMapping.MappingName = "Id"
    storage.ResourceStorage.Mappings.Name.MappingName = "Name"
    storage.ResourceStorage.Mappings.Notes.MappingName = "Notes"
    storage.ResourceStorage.Mappings.ResourceID.MappingName = "ResourceID"
    storage.ResourceStorage.Mappings.ResourceType.MappingName = "ResourceType"
    storage.ResourceStorage.Mappings.UnitOfMeasure.MappingName = "UnitOfMeasure"
    storage.ResourceStorage.DataMember = "Resources"
    storage.ResourceStorage.DataSource = Me.c1NwindDataSet1

    storage.TasksStorage.Mappings.CalendarID.MappingName = "CalendarID"
    storage.TasksStorage.Mappings.ConstraintDate.MappingName = "ConstraintDate"
    storage.TasksStorage.Mappings.ConstraintType.MappingName = "ConstraintType"
    storage.TasksStorage.Mappings.CustomFields.MappingName = "CustomFields"
    storage.TasksStorage.Mappings.Deadline.MappingName = "Deadline"
    storage.TasksStorage.Mappings.Duration.MappingName = "Duration"
    storage.TasksStorage.Mappings.DurationUnits.MappingName = "DurationUnits"
    storage.TasksStorage.Mappings.Finish.MappingName = "Finish"
    storage.TasksStorage.Mappings.HideBar.MappingName = "HideBar"
    storage.TasksStorage.Mappings.IdMapping.MappingName = "Id"
    storage.TasksStorage.Mappings.Initialized.MappingName = "Initialized"
    storage.TasksStorage.Mappings.Mode.MappingName = "Mode"
    storage.TasksStorage.Mappings.Name.MappingName = "Name"
    storage.TasksStorage.Mappings.NextID.MappingName = "NextID"
    storage.TasksStorage.Mappings.Notes.MappingName = "Notes"
    storage.TasksStorage.Mappings.Parts.MappingName = "Parts"
    storage.TasksStorage.Mappings.PercentComplete.MappingName = "PercentComplete"
    storage.TasksStorage.Mappings.Predecessors.MappingName = "Predecessors"
    storage.TasksStorage.Mappings.Resources.MappingName = "Resources"
    storage.TasksStorage.Mappings.Start.MappingName = "Start"
    storage.TasksStorage.Mappings.TaskID.MappingName = "TaskID"
    storage.TasksStorage.DataMember = "Tasks"
    storage.TasksStorage.DataSource = Me.c1NwindDataSet1

End Sub

private void gv_Loaded(object sender, RoutedEventArgs e)
{
     C1GanttViewStorage storage = gv.DataStorage;
    storage.CalendarStorage.Mappings.CalendarID.MappingName = "CalendarID";
    storage.CalendarStorage.Mappings.CalendarID.MappingName = "CalendarID";
    storage.CalendarStorage.Mappings.Data.MappingName = "Data";
    storage.CalendarStorage.Mappings.IdMapping.MappingName = "Id";
    storage.CalendarStorage.Mappings.Name.MappingName = "Name";
    storage.CalendarStorage.DataMember = "Calendars";
    storage.CalendarStorage.DataSource = this.c1NwindDataSet1;

    storage.PropertyStorage.Key.MappingName = "Key";
    storage.PropertyStorage.Value.MappingName = "Value";
    storage.PropertyStorage.DataMember = "Properties";
    storage.PropertyStorage.DataSource = this.c1NwindDataSet1;

    storage.ResourceStorage.Mappings.Cost.MappingName = "Cost";
    storage.ResourceStorage.Mappings.IdMapping.MappingName = "Id";
    storage.ResourceStorage.Mappings.Name.MappingName = "Name";
    storage.ResourceStorage.Mappings.Notes.MappingName = "Notes";
    storage.ResourceStorage.Mappings.ResourceID.MappingName = "ResourceID";
    storage.ResourceStorage.Mappings.ResourceType.MappingName = "ResourceType";
    storage.ResourceStorage.Mappings.UnitOfMeasure.MappingName = "UnitOfMeasure";
    storage.ResourceStorage.DataMember = "Resources";
    storage.ResourceStorage.DataSource = this.c1NwindDataSet1;

    storage.TasksStorage.Mappings.CalendarID.MappingName = "CalendarID";
    storage.TasksStorage.Mappings.ConstraintDate.MappingName = "ConstraintDate";
    storage.TasksStorage.Mappings.ConstraintType.MappingName = "ConstraintType";
    storage.TasksStorage.Mappings.CustomFields.MappingName = "CustomFields";
    storage.TasksStorage.Mappings.Deadline.MappingName = "Deadline";
    storage.TasksStorage.Mappings.Duration.MappingName = "Duration";
    storage.TasksStorage.Mappings.DurationUnits.MappingName = "DurationUnits";
    storage.TasksStorage.Mappings.Finish.MappingName = "Finish";
    storage.TasksStorage.Mappings.HideBar.MappingName = "HideBar";
    storage.TasksStorage.Mappings.IdMapping.MappingName = "Id";
    storage.TasksStorage.Mappings.Initialized.MappingName = "Initialized";
    storage.TasksStorage.Mappings.Mode.MappingName = "Mode";
    storage.TasksStorage.Mappings.Name.MappingName = "Name";
    storage.TasksStorage.Mappings.NextID.MappingName = "NextID";
    storage.TasksStorage.Mappings.Notes.MappingName = "Notes";
    storage.TasksStorage.Mappings.Parts.MappingName = "Parts";
    storage.TasksStorage.Mappings.PercentComplete.MappingName = "PercentComplete";
    storage.TasksStorage.Mappings.Predecessors.MappingName = "Predecessors";
    storage.TasksStorage.Mappings.Resources.MappingName = "Resources";
    storage.TasksStorage.Mappings.Start.MappingName = "Start";
    storage.TasksStorage.Mappings.TaskID.MappingName = "TaskID";
    storage.TasksStorage.DataMember = "Tasks";
    storage.TasksStorage.DataSource = this.c1NwindDataSet1;
}

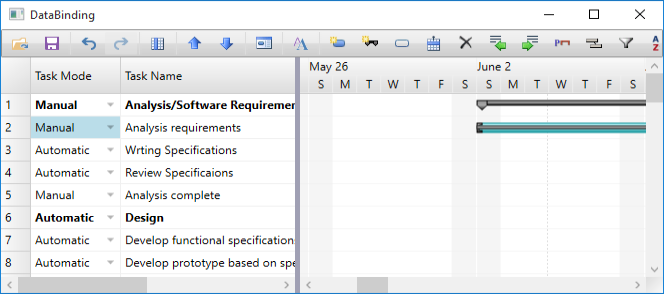

Run the application and notice that the GanttView gets bound to the tables in the NwindDataSet.
