Spread Windows Forms 6.0 Product Documentation
LineSeries Class
Members  See Also  Support Options
FarPoint.Win.Chart Assembly > FarPoint.Win.Chart Namespace : LineSeries Class


Glossary Item Box

Represents a line series in a Y plot area.

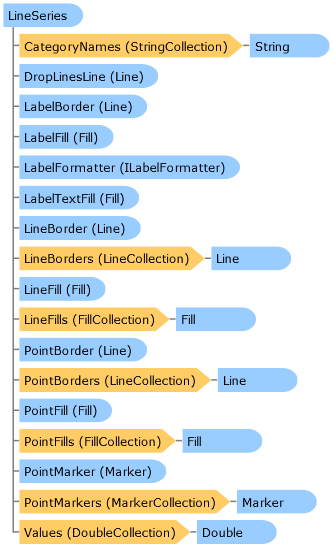

Object Model

LineSeries ClassStringCollection ClassString ClassLine ClassLine ClassFill ClassILabelFormatter InterfaceFill ClassLine ClassLineCollection ClassLine ClassFill ClassFillCollection ClassFill ClassLine ClassLineCollection ClassLine ClassFill ClassFillCollection ClassFill ClassMarker ClassMarkerCollection ClassMarker ClassDoubleCollection ClassDouble Structure

Syntax

Visual Basic (Declaration)
Public Class LineSeries
   Inherits YSeries
Visual Basic (Usage)Copy Code
Dim instance As LineSeries
C#
public class LineSeries : YSeries

Remarks

Each point contains single value. Line borders and line fills can be assigned for the series or for a point in the series with null (Nothing in VB) indicating unsigned. Line depth is meaused relative to the floor grid cell (with values in the range 0 to 1).

Inheritance Hierarchy

System.Object
   FarPoint.Win.Chart.Series
      FarPoint.Win.Chart.YSeries
         FarPoint.Win.Chart.LineSeries

Requirements

Target Platforms: Windows 7, Windows Vista SP1 or later, Windows XP SP3, Windows Server 2008 (Server Core not supported), Windows Server 2008 R2 (Server Core supported with SP1 or later), Windows Server 2003 SP2

See Also
